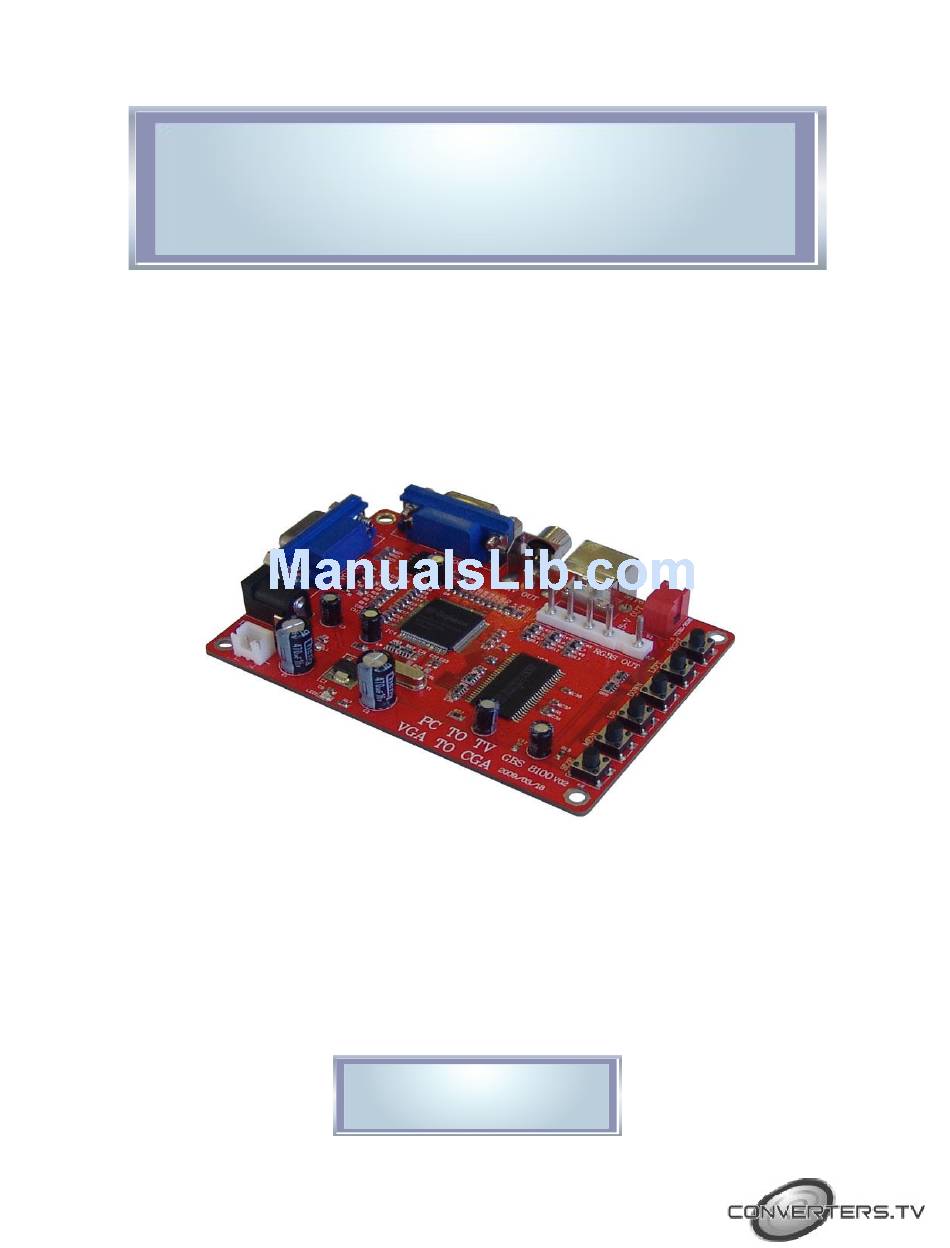

- Page 1 VGA PC to Video-CGA converter - ID# 682 Operation Manual...

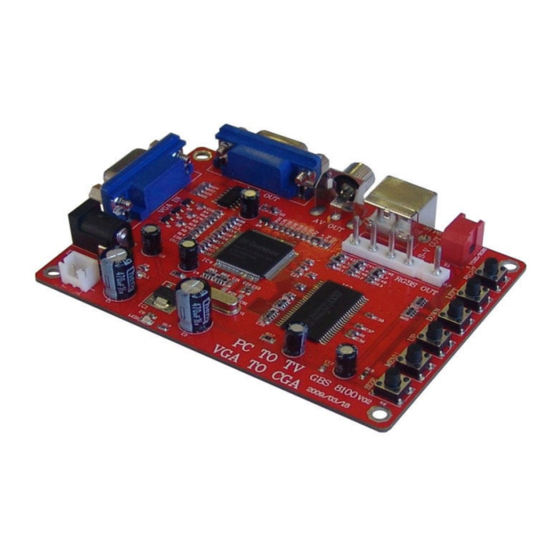

- Page 2 Introduction VGA PC to Video-CGA converter PCB is designed to display a PC signal to a standard TV or a CGA (15k) CRT monitor. Convert PC VGA, SVGA, XGA and SXGA signal timings to standard video, s-video or RGB CGA outputs. Ideal for display of high resolution Arcade or PC games on Arcade CGA (15k) monitors or standard TV's.
- Page 3 Operating Functions Controls MENU CONTROL - “MENU” open/close OSD menu. - "UP” up move. - "DOWN” down move. - " L E F T " - “RIGHT" - S I (2)to switch NTSC/PAL output, (1)to switch S-Video/CGA output.
-
Page 4: Specifications
Specifications Power DC5V 2A +/- 0.5v PI or P2 640*480@60/72/75/80/85 Hz Input signal 800*600@60/72/75/80/85 Hz I 024*768@60/72/75/80 1280* 1024@60/72/75 480i @60Hz Output By pass signal Video 480P NTSC/PAL S-Video 480P NTSC/PAL Output Switch. Image Zoom, Menu Key User control Image Position,Output adjust. Dimensions 100 x 70 x 20mm Troubleshooting...
