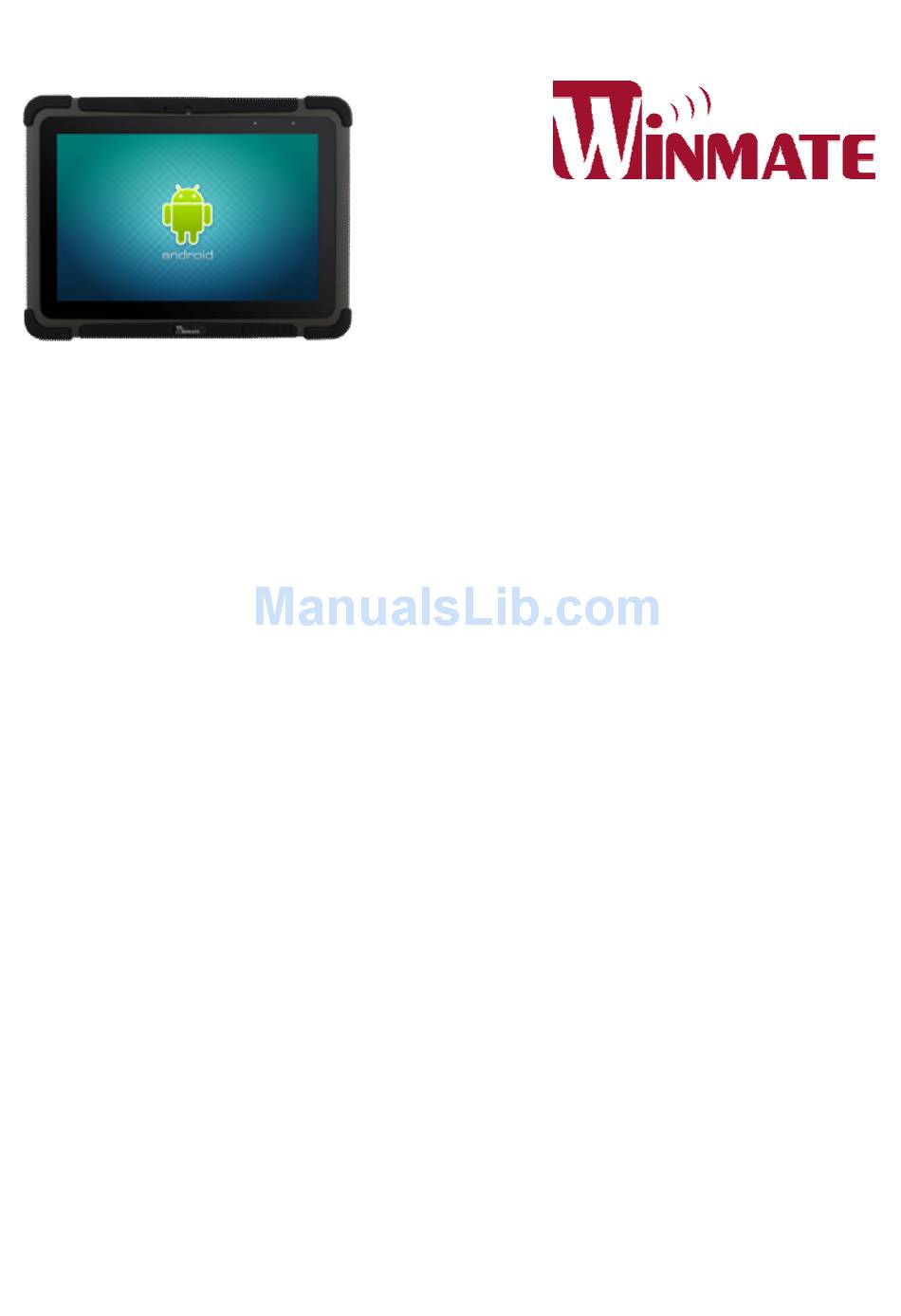

- Page 1 M101M4 Tablet PC Quick Start Guide V1.0 Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Getting Started
• Description of Parts • First Time Operations • Turning On/Off Unpacking Check and identify the supplied accessories: • • Tablet Computer Standard Battery • • 12V Power Adapter with Power Cord Quick Start Guide • Capacitive Touch Stylus M101M4 Quick Start Guide... -
Page 3: Description Of Parts
Power Button Turns on/off tablet Power Jack DC-IN power input jack Micro SD Card Memory card reader Front LED Indicators Detail: Reader port for Micro SD Card Side I/O Details: Front Buttons Details: M101M4 Quick Start Guide... - Page 4 Not spring- loaded. Battery Release Spring-loaded slider that Slider latches the battery in. Touch Pen Slot Pen holder slot to store touch pen SIM card slot Service window to insert Micro SIM card. Speakers Emits sounds. M101M4 Quick Start Guide...
-
Page 5: First-Time Operation
Continue to hold the Battery Release Slider until the battery is fully inserted. 6. Make sure the battery is completely lowered into the compartment before letting go of the Battery Release Slider. Battery will be flat against the housing once fully inserted M101M4 Quick Start Guide... - Page 6 2. Plug the DC cord of the AC adapter into the Power Jack of the tablet computer. 3. Plug the AC power cord into the AC adapter. 4. Finally, Plug the AC power cord into the electrical outlet. M101M4 Quick Start Guide...
-
Page 7: Turning On/Off
Perform the following procedure to shutdown the Tablet Computer: 1. Press and hold the power switch for 3 seconds until the pop-up menu shows 2. Tap on Shut Down. 3. Wait for the Tablet Computer to power off. M101M4 Quick Start Guide... - Page 8 Barcode Reader is enabled. Reading will need to scan button be triggered manually thru Volume buttons. 4. Open the application where barcode reader will be displaying the scanned barcode. 5. Press the volume buttons to trigger the Barcode Scanner M101M4 Quick Start Guide...
- Page 9 Barcode Reader is enabled. Reading will need to scan button be triggered manually thru Volume buttons. 4. Open the application where RFID reader will be displaying the scanned RFID tag. 5. Press the volume buttons to trigger the RFID Reader M101M4 Quick Start Guide...
- Page 10 WinmateCommunicationINC. 9F,No.111-6,Shing-DeRd.,San- ChungDistrict,NewTaipeiCity241,Taiwan,R.O.C WebSite:http://www.winmate.com.tw M101M4 Quick Start Guide...
