will beep faster.
Then proceed with step 6.

3.3 Camera operator GCS (option)

The pilot can be assisted by a camera operator to acts as a copilot relieving the pilot from all other tasks than
piloting. In dual GCS mode, the pilot GCS controls the movement of the aircraft whilst the camera operator
controls the camera settings, pitch angle and LED lighting. At any time, the pilot can override the camera
operator command.
Both of Pilot and Camera Operator GCS receive the live video feed directly from the drone. If the Camera
operator GCS is used in combination with the Range Extender antenna module then the Camera Operator
must use the WIFI video stream directly from the Pilot GCS table. This can be enabled in the Cockpit App.
The buttons on the Camera Operator GCS, have the same functions as on the Pilot GCS, but all inputs which
control the drones flight are disabled. The only exception to this is that the Camera Operator is also capable of
disarming the drone.
Any ELIOS GCS unit can be reconfigured by the user to serve as a camera operator unit.
ELIOS USER MANUAL

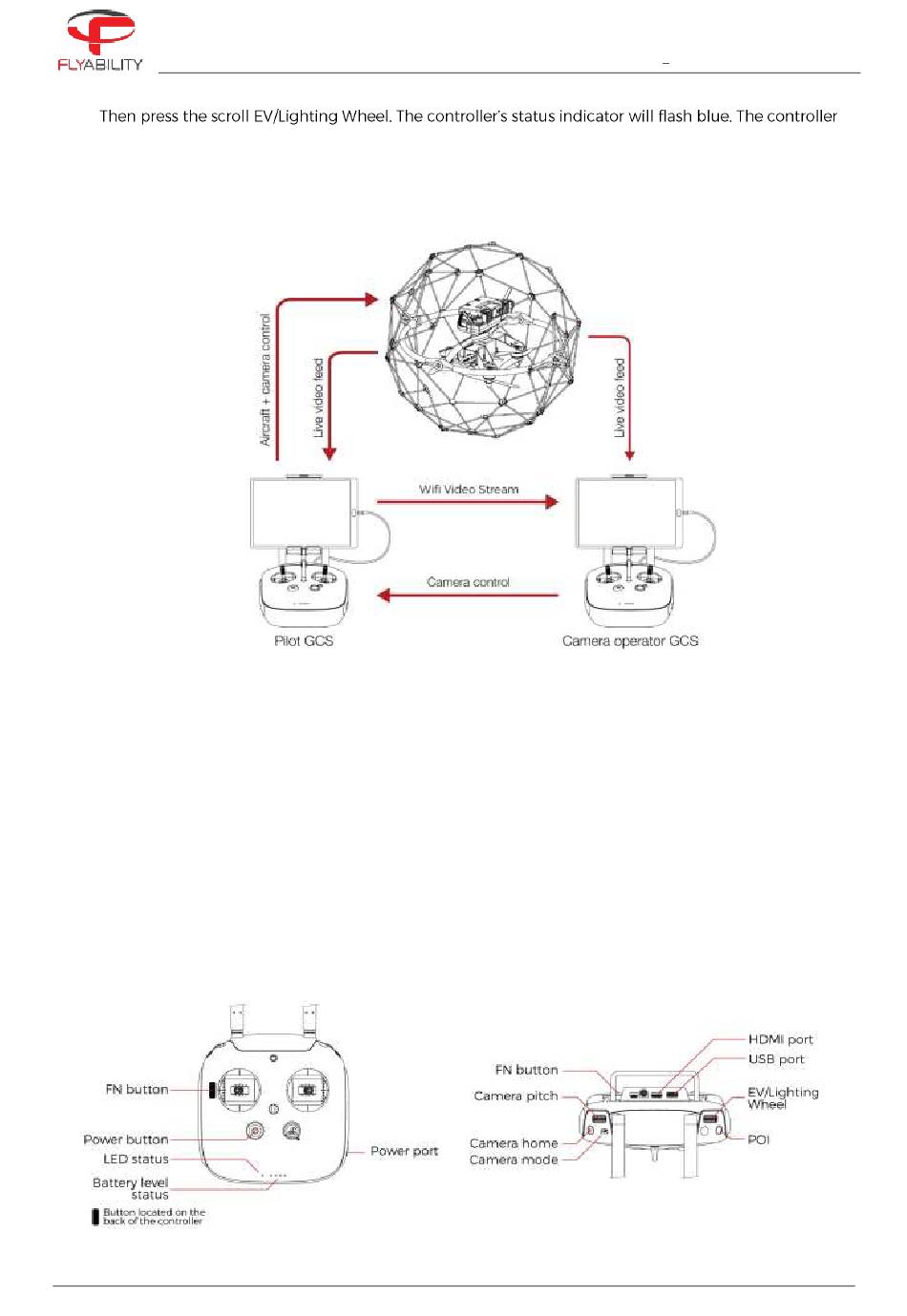

Figure 3.8: Camera operator overview
