- Page 1 ULTRASONIC THICKNESS GAUGE А1207 OPERATION MANUAL Acoustic Control Systems – Solutions GmbH Saarbrücken 2018...
- Page 2 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS Operation Manual...
-
Page 3: Table Of Contents
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS CONTENTS 1 DESCRIPTION AND OPERATION OF THE INSTRUMENT ............5 1.1 INTENDED USE of the instrument ..........................5 1.2 TECHNICAL SPECIFICATIONS ............................5 1.3 INSTRUMENT DESIGN AND OPERATION PRINCIPLE .................6 2 INTENDED USE ..............................8 2.1 OPERATING RESTRICTIONS .............................8 2.2 FACTORS INFLUENCING THE OPERATION OF THE INSTRUMENT AND ACCURACY OF THE READINGS ........................8 2.3 MAKING THE INSTRUMENT READY FOR OPERATION ................9... - Page 4 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 3 MAINTENANCE ..............................13 3.1 ACCUMULATOR BATTERY ..............................13 3.2 RECHARGING THE ACCUMULATOR .........................13 3.3 REPLACEMENT OF THE TRANSDUCER CAPSULE ..................13 3.4 COMMON TROUBLSHOUTING AND REMEDIES....................14 4 STORAGE .................................15 5 TRANSPORTATION ............................16 APPENDIX А ...............................17 Operation Manual...
- Page 5 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS The present operation manual (hereinafter referred to as "oper- ation manual") contains technical specifications, description of de- sign and operation principle of the А1207 Ultrasonic Thickness Gauge (hereinafter referred to as "thickness gauge" or “instrument”), as well as information required for proper working with the instrument.
- Page 6 Manufacturer: ACS-Solutions GmbH Science Park 2 66123 Saarbrucken, Germany Phone: +49 (0) 681-96592270 Fax: +49 (0) 681-96592280 E-mail: info@acs-international.com...
-
Page 7: Description And Operation Of The Instrument
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 1.1 THE INTENDED USE OF THE INSTRUMENT 1.1.1 Intended use and operation range Thickness gauges are pocket-type portable ultrasonic gauges of general purpose. The instruments are designed to perform wall thickness measurements of boilers, containers, pressure-op- erated vessels, hull plates and other items made of black and non-ferrous metals, as well as small-diameter metal and plastic pipes (from 20 mm) with even and corroded surfaces with roughness Rz160 and minimum bending radius from 10 mm. -
Page 8: Technical Specifications
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 1.2 TECHNICAL SPECIFICATIONS The key instrument parameters are listed in Table 1. Table 1 Parameter Value Measurement range of the thickness (steel), mm from 0.8 to 100.0 Sampling rate of the thickness indication, mm: from 0.80 to 9.99 mm 0.01 from 10.0 to 100.0 mm... - Page 9 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS Table 1 Parameter Value Nominal battery voltage, V Period of continuous operation of the instrument powered from 16 h the completely charged accumulator under normal environmental conditions, min. Overall dimensions, max. 125 × 25 × 15 mm Maximum weight 40 g Average time between failures, min.
-
Page 10: Instrument Design And Operation Principle

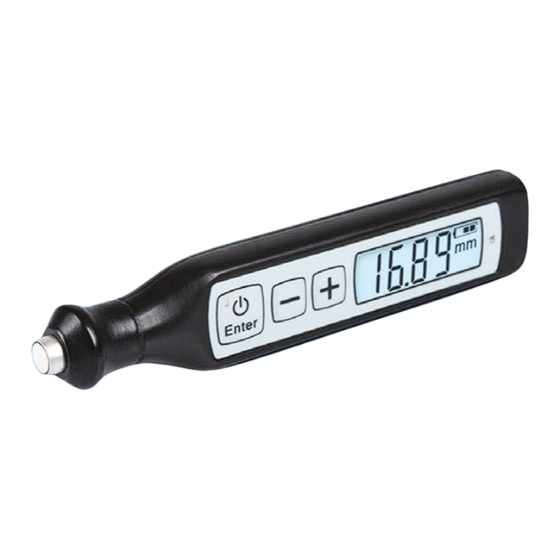

PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 1.3 INSTRUMENT DESIGN AND OPERATION PRINCIPLE 1.3.1 Instrument Design А1207 Ultrasonic Thickness Gauge is a pocket-type one-piece case (Figure 1) with a built-in accumu- lator battery and a built-in single element transducer. On/Off key Digital display Capsule of the piezoelectric... - Page 11 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS The design of the instrument allows for the replacement of the worn-out capsule of the built-in transducer by means of unscrewing the tip detaching the transducer capsule from the instrument without extra tools (see 3.3). key is used to: Thickness Accumulator...
- Page 12 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 1.3.2 Operation Principle The instrument measures the time of the double movement of ultrasonic pulses through the object being inspected from one surface to another. This time is converted to the thickness value using a known velocity value.
-
Page 13: Intended Use
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 2.1 OPERATING RESTRICTIONS The instrument is designed to be operated under conditions listed in the Chapter 1.1.2. 2.2 FACTORS INFLUENCING THE OPERATION OF THE INSTRUMENT AND ACCURACY OF THE READINGS 2.2.1 State of the surface Loose or exfoliating rust, corrosion or dirt on the surface of the object to be tested can influence the transmission of the ultrasonic sound in the material. - Page 14 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS results. The measurements can be executed through the thin paint layer (0.1-0.3 mm). At that, the result of the measurements will include the thickness value of the paint layer. If there is a thick layer of paint on the surface or the paint started to pill off, then remove it since the thick paint layer reduces the signal and can produce a false echo resulting in false measurement results.
- Page 15 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS as possible, do not apply strong pressure and use clean contact grease only on the pre-cleaned surface. The instrument's readings when the transducer is leaning from the middle position will be increased a little. The minimum steady reading of the instrument contacting the tube’s wall with the middle of the working surface of the piezoelectric transducer will be considered the actual value of the measured thick- ness.
- Page 16 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 2.2.4 Acoustic properties of the material Some properties of the constructive materials can essentially limit the measurement accuracy and measurable thickness range, and they can as well increase the measurement error. 2.2.4.1 Sound dispersion In some materials (some types of stainless steel, cast-iron, composites) the sound energy is being dispersed (on the crystallite molding or on additions in the composites).
-
Page 17: Making The Instrument Ready For Operation
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 2.3 MAKING THE INSTRUMENT READY FOR OPERATION 2.3.1 Surface preparation Carefully clean the surface of inspected item from dirt, friable rust and scale prior to measurements. Apply sufficient amount of the lubricant to the area of inspection. 2.3.2 Switching On/Off the instrument To switch on the thickness gauge, shortly press the key. - Page 18 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS The instrument will switch into the measurement mode. The horizontal strokes, the accumulator bat- tery state and the current measurement units are displayed on the screen (Figure 4). To switch off the thickness gauge, press and hold the key for more than two seconds. Note –...
- Page 19 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS IMPERIAL ("in" shall be indicated) – the thickness will be measured in inches (in), the velocity will be set in inch/ms (in/ms). To select the measurement units, while switching on the instrument, press and hold the key untill the screen changes the displayed measurment values from "mm"...
- Page 20 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 2.3.4.2 Edit current ultrasonic sound velocity To edit the current ultrasonic sound velocity value, do the following: - press (hold longer than 2 seconds) the key while in the measurement mode, at that the current velocity value will start blinking;...
- Page 21 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS - measured thickness value will be blinking; - adjust the velocity value by means of the keys, so that the known thickness value is displayed as the measurement value; - take the instrument from the sample, the measured resulting velocity value will be blinking on the screen;...
- Page 22 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 2.3.4.4 Calibration mode Calibration mode consists of two stages. The first stage is the turning off the noise threshold. The second stage is the determination of the latency value in the transducer using the calibration sample included in the delivery kit.
- Page 23 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS The instrument shall remain on the sample until the calibration is completed. The procedure is indi- cated by a countdown from “9” to “0” (“CLb9”, “CLb8”, … “CLb0 the procedure is indicated by a countdown from) (Figure 9).
-
Page 24: Maintenance
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS The maintenance of the instrument includes cleaning it from dirt and dust and recharging the accumulator. 3.1 ACCUMULATOR BATTERY The rechargeable battery of the instrument is designed for operation over a wide range of tempera- tures. -
Page 25: Recharging The Accumulator
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS 3.2 RECHARGING THE ACCUMULATOR The accumulator is charged via the external charger or from PC via USB. When the charger is connected to the instrument, the battery filling sign starts blinking. During the charging process the blinking symbol "moves" to the top of the battery sign. The period of charging depends on the discharge level. -
Page 26: Common Troublshouting And Remedies
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS - Disconnect the capsule from the instru- ment (Figure 12). - Reinsert a new capsule; - Screw in the tip. ATTENTION: AFTER THE CAPSULE IS RE- PLACED, CALIBRATE THE DEVICE USING THE CALIBRATION SAMPLE (see 2.3.4.4). Figure 11 3.4 COMMON TROUBLSHOUTING AND REMEDIES Operators experiencing troubles during the instrument operation or having any questions relating its opera-... -
Page 27: Storage
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS А1207 Ultrasonic Thickness Gauge should be shelf stored in the bag included in the delivery kit of the instrument. The arrangement of the instruments in warehouses shall enable their free movement and unrestricted access to them. The distance between the instruments and the walls, floor of the warehouse and other warehoused instruments shall be at least 100 mm. -
Page 28: Transportation
PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS А1207 Ultrasonic Thickness Gauge should be transported in the bag included in the delivery kit of the instrument. The transportation conditions with regard to the impact of the external environment climatic factors should correspond to storage conditions. The packaged instruments can be transported by any vehicle types for any distances without speed restrictions. - Page 29 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS Propagation speeds of the longitudinal ultrasonic waves in some materials are presented in Table А.1. Table A1 Material Velocity, m/s Material Velocity, m/s Aluminium 6260 Concrete 2000 – 5400 Aluminium alloy D16Т 6320 Ragstone 5930 Bronze (phosphor) 3530...
- Page 30 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS Table A1 Material Velocity, m/s Material Velocity, m/s Brass 4430 Limestone 86 4640 Brass LS-59-1 4360 Capron 2640 Magnesium 5790 Quartz glass 5930 Manganin 4660 Labradorite 44 5450 Manganese 5561 3980 Copper 4700 Marble 6150 Molybdenum 6290...
- Page 31 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS Table A1 Material Velocity, m/s Material Velocity, m/s Silver (Argentum) 3600 Silicate glass 5500 Glass-ceramics 6740 Steel H15N15GS 5400 Steel 20 GSNDM 6060 Steel St3 5930 Steel HN77ТUR 6080 Thermazote 2920 Steel 40HNМА 5600 Teflon 1350 Steel HN70VМТU...
- Page 32 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS NOTES Operation Manual...
- Page 33 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS NOTES Operation Manual...
- Page 34 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS NOTES Operation Manual...
- Page 35 PenGauge Operation Manual ACOUSTIC CONTROL SYSTEMS Operation Manual...
- Page 36 Ultrasonic Thickness Gauge PenGauge OPERATION MANUAL Revision: February 2018...
