- Page 1 Level Gauge A1207D ULTRASONIC MEASURING DEVICE FOR GEAR OIL LEVEL A1207D LEVEL GAUGE USER MANUAL Acoustic Control Systems – ACS Group User Manual Saarbrücken, Germany 2019...
- Page 2 Level Gauge A1207D Service Address: ACS-Solutions GmbH Science Park 2 66123 Saarbrucken, Germany Phone: +49 (0) 681-96592270 Fax: +49 (0) 681-96592280 Е-mail: info@acs-international.com Website: www.acs-international.com Issue date: 09.17.2018 User Manual...
-
Page 3: Table Of Contents
Level Gauge A1207D TABLE OF CONTENTS 1 IMPORTANT, BASIC INFORMATION ........................5 1.1 SCOPE OF DELIVERY ....................................6 1.2 MAIN COMPONENTS ....................................7 1.3 KEYS ............................................8 1.4 RECHARGEABLE BATTERY ...................................8 2 DEVICE USAGE AND LIMITATIONS ........................10 2.1 APPROPRIATE USE ......................................10 2.2 REASONABLY FORESEEABLE MISUSE ............................11 3 SAFETY .................................... - Page 4 Level Gauge A1207D 7 OPERATION ..................................15 7.1 COUPLANT .........................................15 7.2 PROBE CONNECTION ....................................15 7.3 SWITCHING ON ......................................16 7.4 FUNCTIONAL CHECK ....................................16 7.5 CHANGING THE DIMENSIONAL UNIT ............................17 7.6 MEASUREMENT ......................................17 7.7 SWITCHING OFF ......................................17 7.8 STORAGE ..........................................17 8 TROUBLESHOOTING ..............................18 9 MEASURES AT THE END OF THE LIFETIME OF THE EQUIPMENT ............
-
Page 5: Important, Basic Information
Level Gauge A1207D READ FIRST! Read this manual carefully before using the device to ensure safe and proper use. CE certification acc. to 2014/30/EU (EMC) is provided; requirements of the Federal Communications Commission (FCC) -relevant for delivery, sales and import to USA- , as well as corresponding IC prescriptions for Canada, are met likewise. -
Page 6: Scope Of Delivery
The following articles must be included in the product box: The supplied items are Service check book for use with this unit only and are not compatib- le with other equipment. Use only ACS approved User Manual accessories. Using unapproved accessories will result in poor performance and malfunctions not covered by the warranty. -
Page 7: Main Components

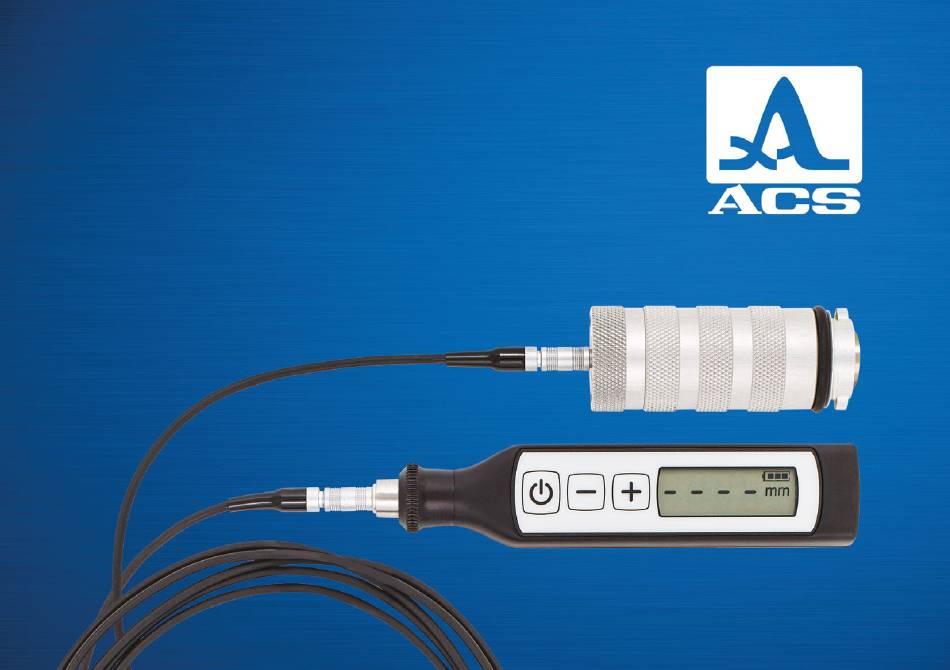

Level Gauge A1207D 1.2 MAIN COMPONENTS Connecting Cable Connector Probe Mains Plug Steckerverbindung ON/OFF Switch Light - Light + Rubber sealing ring Instrument Display Bayonet Connector USB-Socket Charging Cable USB-Socket User Manual... -
Page 8: Keys
In that case of total discharge, the rechargeable battery may be destroyed and must be replaced Use only ACS approved chargers, batteries, and cables. Unauthorized chargers or cables may cause the battery to explode or damage the device. - Page 9 Incorrect removal of the battery may result in damage to the battery and the device, personal injury, and / or equipment damage including impairment of safety. ACS is not liable for any damage or loss (whether contractually or unauthorized, including negligence) caused by not following this warning.
-
Page 10: Device Usage And Limitations
Level Gauge A1207D 2.1 APPROPRIATE USE This section contains safety-relevant information and defines minimum requirements for user groups. Use of the device outside the intended use and by unintended user groups may result in damage. Intended use This instrument has been designed for manual measurement of gear oil level in cars. It is used in roofed buildings and only in non-hazardous areas. -
Page 11: Reasonably Foreseeable Misuse
Level Gauge A1207D Ambient limits Temperature Range Contamination Storage: From -20 °C to +60 °C, Despite the provided protection acc. to IP 64 (dust, splash Operation: From -10°C to +50°C water), use in clean, dry environment is advisable. For measurement at the gearbox: From -10°C to +80 °C... -
Page 12: Safety
Level Gauge A1207D The general safety instructions listed in this section relate to the use of the device in a workshop environment when measuring the gear oil level on cars under controlled conditions Without exception, working with the device requires the previous risk assessment of the workplace according to BetrSichV §3, GefStoffV §6 and ArbSchG §5 and applicable and additional national and international requirements by a... -
Page 13: Maintenance And Repair
Remove dirt and couplant. Check for After each use Device, cable, probe damage Inspection and calibration by ACS or Once per year Device, cable, probe authorized dealer 4.2 CONTROL PROCEDURES AND TEST EQUIPMENT Correct functionality is inspected by means of the calibration block contained in the set. -
Page 14: Initial Step For Troubleshooting
Level Gauge A1207D In case of device failure switch OFF and ON again If the device problem is not solved, consult factory service. Description Dimension Value Interfaces Human-Device interaction Digital display, buttons IT – Device Bluetooth interface Power supply to the device USB3 Connection Device –... -
Page 15: Operation
Inappropriate temperature determination and / or an incorrect correction value table can lead to incorrect measurements and the resulting consequential damage. ACS is not liable for any damage or loss (whether contractually or unauthorized, including negligence) caused by not following this warning. -
Page 16: Switching On
Level Gauge A1207D Pay attention to ease of movement when releasing the plug connection. Exaggerated application of a force can damage the plug connection. Avoid bending or levering on the plug connections. 7.3 SWITCHING ON Press and release - key 7.4 FUNCTIONAL CHECK... -
Page 17: Changing The Dimensional Unit
Level Gauge A1207D 7.5 CHANGING THE DIMENSIONAL UNIT Switch ON the device and press, - key once more to change from mm to inch or vice versa. 7.6 MEASUREMENT 1. Switch ON the device. 2. Apply some couplant to the probe. -
Page 18: Troubleshooting
Level Gauge A1207D Problem Possible Reason(s) Action Incorrect measurement Calibration block has not adequately - Disconnect the probe from the calibration block. during functionality check been used. - Verify the quantity of couplant - The coupling surface must be clean, not damaged and without adherent foreign particles. -
Page 19: Measures At The End Of The Lifetime Of The Equipment
Level Gauge A1207D This electronic instrument must not be disposed of with the domestic waste. Local authorities inform about the address of designated collection points for recycling. Recycling of the product: This product consists of valuable materials and components, to be reintroduced into the reusable materials cycle. The illustrated symbol shows that the product is subject to European Directive 2002/96/EC: Never dispose of your product with other domestic waste. - Page 20 Level Gauge A1207D NOTES User Manual...
- Page 21 Level Gauge A1207D NOTES User Manual...
- Page 22 Level Gauge A1207D NOTES User Manual...
- Page 23 Level Gauge A1207D User Manual...
- Page 24 Level Gauge A1207D ULTRASONIC MEASURING DEVICE FOR GEAR OIL LEVEL A1207D LEVEL GAUGE USER MANUAL Acoustic Control Systems – ACS Group Saarbrücken, Germany 2019 User Manual...
