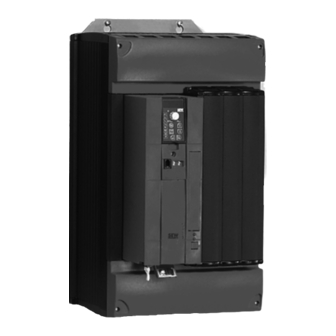

  • Page 1 Gearmotors \ Industrial Gear Units \ Drive Electronics \ Drive Automation \ Services ® MOVITRAC Keypad Edition 02/2007 perating nstructions 11586214 / EN...
  • Page 2 SEW-EURODRIVE – Driving the world...

  • Page 3: Table Of Contents

    Contents 1 Important Notes....................4 Structure of the safety notes ..............4 Right to claim under warranty ..............4 Exclusion of liability ................... 4 2 Safety Notes ...................... 5 General information .................. 5 Target group ..................... 5 Proper use ....................5 Transportation, storage ................

  • Page 4: Important Notes

    Important Notes Structure of the safety notes Important Notes Structure of the safety notes The safety notes in these operating instructions are structured as follows: Symbol SIGNAL WORD Nature and source of hazard Possible consequence(s) if disregarded. • Measure(s) to avoid the hazard. Symbol Signal word Meaning...

  • Page 5: Safety Notes

    Safety Notes General information Safety Notes The following basic safety notes are intended to avoid injury to persons and damage to property. The operator must make sure that the basic safety notes are read and observed. Make sure that persons responsible for the plant and its operation, as well as persons who work independently on the unit, have read through the operating instruc- tions carefully and understood them.

  • Page 6: Transportation, Storage

    Safety Notes Transportation, storage 2.3.1 Safety functions Frequency inverters from SEW-EURODRIVE cannot perform any safety functions unless the inverters are subordinate to higher-level safety systems. Use higher-level safety systems to ensure protection of equipment and personnel. When using the "Safe stop" function, you must observe the following publications: ®...

  • Page 7: Safe Disconnection

    Safety Notes Safe disconnection Safe disconnection The unit meets all requirements for safe disconnection of power and electronic connec- tions in accordance with EN 61800-5-1. All connected circuits must also satisfy the requirements for safe disconnection. Operation Systems with integrated frequency inverters must be equipped with additional moni- toring and protection devices, as applicable, according to the relevant safety guidelines and regulations, such as legislation governing technical equipment, accident prevention regulations, etc.

  • Page 8: Startup

    Startup Preliminary work and resources for MOVITRAC® B with keypad Startup ® Preliminary work and resources for MOVITRAC B with keypad • Check the installation ("Installation" sec.). HAZARD Risk of crushing if the motor starts up unintentionally. Severe or fatal injuries •...

  • Page 9: Optional Fbg11B Keypad

    Startup Optional FBG11B keypad Optional FBG11B keypad Key arrangement and symbols on keypad: 3.2.1 Keypad functions The UP / DOWN and ENTER / OUT buttons are used for navigating the menus. Use the RUN and STOP/RESET buttons to control the drive. The setpoint control module is used for setpoint specification.

  • Page 10: Basic Operation Of The Fbg11B Keypad

    Startup Basic operation of the FBG11B keypad Basic operation of the FBG11B keypad Level 1 Level 2 Inverter status display out Enter Change Change/accept Ramp up Enter ramp up [s] value display Change Change/accept Ramp down out Enter Enter ramp down [s] value display Fixed setpoint menu...
  • Page 11 Startup Basic operation of the FBG11B keypad 3.3.1 Menu system The LED integrated in the symbol lights up when you select a symbol. In the case of symbols, which only represent display values, the current display value appears imme- diately on the display. Changing You can select the required parameter by selecting a symbol and pressing the ENTER parameters...

  • Page 12: Fbg11B Setpoint Control Module And External Setpoint Specification

    Startup FBG11B setpoint control module and external setpoint specification FBG11B setpoint control module and external setpoint specification FBG11B setpoint control module of the keypad (local manual operation): LED flashes. External setpoint specification Control via – Terminals – Serial interface – Setpoint potentiometer connected to AI11/AI12 3.4.1 FBG11B setpoint control module The only relevant parameters in "FBG setpoint control module"...
  • Page 13 Startup FBG11B setpoint control module and external setpoint specification 3.4.2 External setpoint specification Set direction of You can specify the set direction of rotation: rotation • "CW/STOP" and "CCW/STOP" in P101Control signal source = Terminals or P101 Control signal source = 3 wire-control •...

  • Page 14: Startup With The Fbg11B Keypad

    Startup Startup with the FBG11B keypad Startup with the FBG11B keypad Level 1 Level 2 Level 3 Motor selection Enter Enter (SEW motor / non-SEW motor) Select operating mode: – VFC – VFC hoist Enter – VFC DC braking – VFC flying start function –...
  • Page 15 Startup Startup with the FBG11B keypad 3.5.1 Required data The following data is required to ensure startup is successful: • Motor type (SEW or non-SEW motor) • Motor data – Rated voltage and rated frequency – Additionally for non-SEW motors: rated current, rated power, power factor cosj and rated speed •...
  • Page 16 Startup Startup with the FBG11B keypad 3.5.5 Startup multi-motor drive Multi-motor drives are mechanically connected to each other (e.g., chain drive with several motors). Observe the notes in the publication "Multi-Motor Drives". Multi-motor drives are possible with installed identical SEW motors only. •...

  • Page 17: Parameter List

    Startup Parameter list Parameter list All parameters that can also be displayed and edited using the keypad are indicated as follows in the "FBG" (keypad) column: Selection in long menu Selection in short or long menu Selection using symbols on keypad Selection within FGB motor startup If a selection is offered, the factory setting is indicated in bold.
  • Page 18 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup 8339 Binary input DI05 n12 / n22 8334 Binary inputs Binary display DI00 ... DI05 Binary outputs 8349 Binary output /Fault DO01 8349 Binary output Brake released...
  • Page 19 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup 10247.15 FI1 reference 10247.10 Setpoint 0 ... 3000 ... 6000 rpm reference speed n ref. 10416.1 Open circuit No response detection Immediate stop / fault Rapid stop / fault Rapid stop / warning 10247.11...
  • Page 20 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup 10247.3 AI2 characteristic –100 % ... 0 ... +100 % curve x2 (–10 V ... 0 ... +10 V) 10247.4 AI2 characteristic –100 % ...
  • Page 21 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup Motor parameters (on FBG only parameter set 1) 30_ / 31_ Limits 1 / 2 300 / 310 8515 / Start/stop speed 0 ...
  • Page 22 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup Terminal assignment Binary inputs 8336 Binary input DI02 0: No function assignment 1: Enable / stop (factory setting DI03) 2: CW / stop 8337 Binary input DI03 3: CCW / stop (factory settingDI02)
  • Page 23 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup 10246.3 AO1 Character- –100 % ... 0 ... +100 % istic curve x2 10246.4 AO1 Character- 0 ... 100 % istic curve y2 Control functions (on FBG only parameter set 1) Operating modes 1 / 2 700 / 701...
  • Page 24 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup – Copy DBG Æ ® MOVITRAC – Copy MOVI- ® TRAC B Æ DBG Serial communication 8597 RS-485 address 0 ... 99 8598 RS-485 group 100 ...
  • Page 25 Startup Parameter list FBG Index Name Range / Factory setting Value dec. after ® Display MOVITOOLS MotionStudio startup Serial communication SBus 8937 SBus protocol 0 / MoviLink 1 / CANopen 8600 SBus address 0 ... 63 8601 SBus group 0 ... 63 address 8602 SBus timeout...

  • Page 26: Operation

    Operation Data backup Operation Data backup 4.1.1 Data backup with FBG11B ® Use the FBG11B keypad to download parameter data from the MOVITRAC B to the ® keypad or copy from the keypad to the MOVITRAC After copying the parameters, check for accuracy. Data backup with FBG11B Level 1 Level 2...

  • Page 27: Return Codes (R-19

    Operation Return codes (r-19 ... r-38) Return codes (r-19 ... r-38) ® Return codes MOVITRAC Description Meaning Parameter lock activated Parameters cannot be changed Factory setting in progress Parameters cannot be changed Option card missing. The required option card for the function is missing. Option card missing.

  • Page 28: Fbg Keypad

    Operation FBG keypad FBG keypad If the status is "Drive enabled", the display will show the actual speed calculated. State Display Drive "Controller inhibit" Drive "No enable" StoP Drive "Enable" 8888 (Actual speed) Factory setting SEt (Set) Standstill current 24 V operation Timeout active 4.3.1 Status of the binary inputs / binary outputs...

  • Page 29: Service

    Service Fault memory Service Fault memory The inverter saves the fault message in fault memory P080. The inverter only saves a new fault after the fault message has been acknowledged. The local operating panel shows the most recent fault. Whenever double faults occur, the value stored in P080 does not correspond to the value displayed on the operating panel.

  • Page 30: Technical Data

    Technical Data FBG11B keypad front option Technical Data FBG11B keypad front option The FBG11B front option can be used for simple diagnostics and startup. Part number 1820 635 2 Functions • Displaying process values and status • Fault memory queries and fault reset •...

  • Page 31: Index

    Index Index Copy parameter data ..........26 Parameter list ............. 17 Data backup ............26 Reset ..............29 Enabling the direction of rotation ......13 Return codes ............27 External setpoint specification ..... 12 Fault memory ............29 Safety notes ............5 FBG11B ..............30 Set direction of rotation ........
  • Page 32 Gearmotors \ Industrial Gear Units \ Drive Electronics \ Drive Automation \ Services How we’re driving the world With people who With comprehensive With uncompromising think fast and With a worldwide With drives and controls knowledge in virtually quality that reduces the develop the service network that is that automatically...
