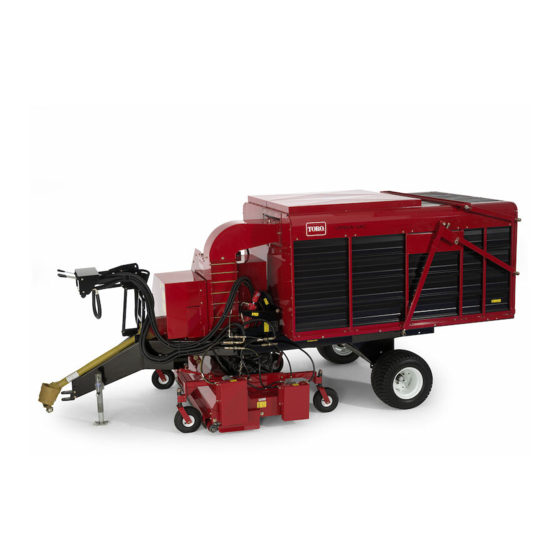

Versa Vac
Model No. 07053—Serial No. 403360001 and Up
Form No. 3425-850 Rev C
*3425-850* C

Advertisement

Table of Contents
loading

Summary of Contents for Toro Versa Vac 07053

  • Page 1 Form No. 3425-850 Rev C Versa Vac Model No. 07053—Serial No. 403360001 and Up *3425-850* C Register at www.Toro.com. Original Instructions (EN)
  • Page 2: Table Of Contents

    Whenever you need service, genuine Toro parts, or Connecting the PTO Shaft ........ 12 additional information, contact an Authorized Service During Operation ..........13 Dealer or Toro Customer Service and have the model During Operation Safety ........13 and serial numbers of your product ready. Figure 1 Operating the Traction Unit Hydraulics....
  • Page 3: Safety

    Safety • Keep clear of any discharge opening. Keep bystanders and pets a safe distance away from the machine. General Safety • Keep children, bystanders, and pets out of the operating area. Never allow children to operate This product is capable of amputating hands and the machine.
  • Page 4 decal93-6674 93-6674 1. Crushing hazard, hand—read the instructions before servicing or performing maintenance. decal106-0163 106-0163 1. Warning—read the Operator's Manual and receive training before operating the machine; the maximum load is 612 kg (1350 lb) trailer weight and 385 kg (850 lb) tongue weight; do not drive the machine and trailer down hill or you may lose control.
  • Page 5 decal106-0167 106-0167 1. Warning—read the and receive training before operating the machine; 1) Stop the engine; 2) Remove the ignition key before getting off of the tractor; 3) read the Operator's Manual before servicing or performing maintenance; 4) decal106-0166 Connect or disconnect the hydraulic hoses. 106-0166 2.
  • Page 6: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Connect the machine to the traction Jack units. PTO shaft Adjust the PTO shaft length. – No parts required Connect the PTO shaft. –...
  • Page 7: Connecting The Machine To The Traction Unit

    At its shortest length, the 2 halves of the PTO CAUTION shaft must have at least 37 mm (1-1/2 inches) of Without the proper amount of ballast in the additional clearance to collapse (Figure tires, the traction unit may become unstable Note: If the dimension in Step is not at least...
  • Page 8: Greasing The Machine

    Product Overview Controls Connecting the PTO Shaft No Parts Required Procedure Connect the PTO shaft; refer to Connecting the PTO Shaft (page 12) g027357 Figure 3 Greasing the Machine 1. Brush control 4. Auxiliary control 2. Deck lift control 5. Safety latch 3.
  • Page 9: Before Operation

    Operation Remove the 2 cotter pins from the control valve spool. Mount the auxiliary control lever to the valve Note: Determine the left and right sides of the spool with the cotter pins. machine from the normal operating position. Install the control lever cover. CAUTION If you leave the key in the traction unit ignition Safety Latch...
  • Page 10: Hydraulic Fluid Specifications

    Servicing the Hydraulic Fluid and Filter (page 18). Alternative fluids: If Toro PX Extended Life Hydraulic Fluid is not available, you may use another conventional, petroleum-based hydraulic fluid having specifications that fall within the listed range for all the following material properties and that it meets industry standards.
  • Page 11: Checking The Hydraulic Fluid

    Checking the Hydraulic Checking the Tire Pressure Fluid The correct air pressure in the tires is 124 kpa (18 psi). Important: Maintain even pressure in both tires Operate the machine so that the fluid is warm, to ensure proper machine performance. Do not park the machine on a level surface, and shut under inflate.
  • Page 12: Connecting The Pto Shaft

    Connecting the PTO Shaft Adjust the machine hitch clevis to the same level as the traction unit hitch as follows: Connect the PTO shaft to the machine impeller Remove the bolts and locknuts that secure input shaft. the hitch clevis (Figure 6) to the machine Connect the PTO shaft to the rear traction unit...
  • Page 13: During Operation

    • For all PTO shaft steel parts (tubes, bearings, joints, etc.) disassembly or repairs, it is highly advisable to contact your authorized Toro During Operation Safety distributor. Removal of components for repairs and reassembly may damage some parts if not performed with special tools by trained technicians.
  • Page 14: Operating The Traction Unit Hydraulics

    Operating the Machine machine to lose traction. Loss of traction to the drive wheels may result in sliding and a loss of Start the traction unit and run it at a low rpm. braking and steering. Engage the PTO while the engine is at idle •...
  • Page 15: After Operation

    After Operation Remove the hitch pin and clevis. Move the traction unit away from the machine. After Operation Safety Transporting the Machine General Safety You can transport the machine to work sites using any traction unit with a draw-bar-type hitch. The machine •...
  • Page 16: Maintenance

    • Perform only those maintenance instructions described in this manual. If major repairs are ever needed or assistance is desired, contact an authorized Toro distributor. • Ensure that the machine is in safe operating condition by keeping hardware tightened. •...
  • Page 17: Lubricating The Machine

    • To ensure safe, optimal performance of the machine, use only genuine Toro replacement parts. Replacement parts made by other manufacturers could be dangerous, and such use could void the product warranty.
  • Page 18: Checking The Hydraulic Lines And Hoses

    (maximum) of the sight gauge. Replacing the Hydraulic Filter Use only the Toro replacement filter (Part No. 54-0110) in the hydraulic system. Important: Use of any other filter may void the warranty on some components.
  • Page 19 Clean the area around the filter mounting area. Place a drain pan under the filter and remove the filter (Figure 11). g027367 Figure 12 g027366 Figure 11 1. Drive shield 1. Hydraulic filter Note: The drive shaft does not have to be disconnected to adjust the belt.
  • Page 20: Storage

    Storage Using a large wrench, rotate the tensioner clockwise until the decal is aligned with 15° on the tensioner tube. Thoroughly clean the machine. The impeller Important: Align the tensioner as close to housing should be free of dirt, leaves, and 15°...
  • Page 21 The Toro Company (“Toro”) respects your privacy. When you purchase our products, we may collect certain personal information about you, either directly from you or through your local Toro company or dealer. Toro uses this information to fulfil contractual obligations - such as to register your warranty, process your warranty claim or to contact you in the event of a product recall - and for legitimate business purposes - such as to gauge customer satisfaction, improve our products or provide you with product information which may be of interest.
  • Page 22 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
  • Page 23 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
