Original Instructions (EN)
Debris Blower 600
Model No. 44536—Serial No. 403063078 and Up
Form No. 3424-430 Rev A
*3424-430* A

Advertisement

Table of Contents
loading

Summary of Contents for Toro 44536

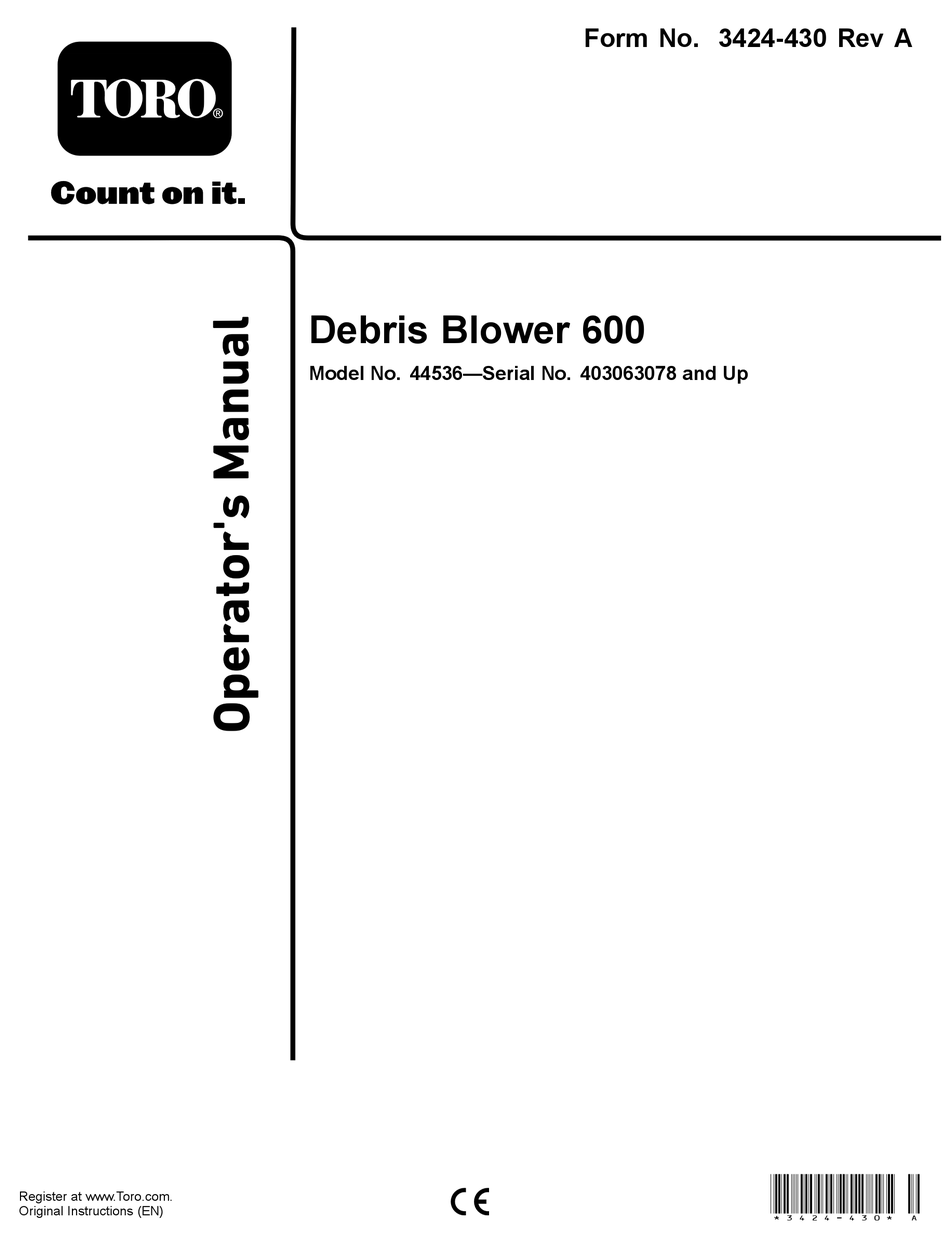

  • Page 1 Form No. 3424-430 Rev A Debris Blower 600 Model No. 44536—Serial No. 403063078 and Up *3424-430* A Register at www.Toro.com. Original Instructions (EN)
  • Page 2: Table Of Contents

    During Operation Safety ........11 additional information, contact an Authorized Service Operating Tips ..........12 Dealer or Toro Customer Service and have the model After Operation ............ 13 and serial numbers of your product ready. Write the After Operation Safety ........13 numbers in the space provided.
  • Page 3: Safety

    Safety • Do not put your hands or feet near moving components of the machine. • Do not operate the machine without all guards General Safety and other safety protective devices in place and working on the machine. This product is capable of throwing objects. Always follow all safety instructions to avoid serious personal •...
  • Page 4 decal105-0627 105-0627 1. Warning—stop the engine, remove the ignition key before decal105-0708 leaving the machine and disconnect the power take–off 105-0708 (PTO) shaft. 1. Warning—thrown object hazard; keep bystanders away from machine. decal105-0628 105-0628 1. Warning—do not operate the machine with power take-off (PTO) at a greater angle than 15 degrees.
  • Page 5: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Install the caster wheels. – No parts required Connect the lower link arms. – No parts required Connect the upper link. –...
  • Page 6: Connecting The Upper Link

    Connecting the Lower Link Connecting the Upper Link Arms No Parts Required No Parts Required Procedure Connect the upper link to the holes in the blower Procedure bracket and secure it with a clevis pin and lynch Position the blower on a flat, level surface and (Figure disengage the PTO.
  • Page 7: Adjusting The Pto Shaft Length

    Adjusting the PTO Shaft Length No Parts Required g011993 Figure 5 Procedure 1. PTO shaft 2. 37 mm (1-1/2 inches) dimension Important: A long PTO shaft is supplied with the machine to accommodate large variations in the Use the following calculation to establish tractor’s PTO and 3-point locations.
  • Page 8: Connecting The Pto Shaft

    Connecting the PTO Shaft Adjusting the Sway Links No Parts Required No Parts Required Procedure Procedure Connect the PTO shaft to the blower-input shaft. Adjust the sway links on the lower draft arms of the 3-point hitch to minimize side-to-side sway to a Connect the PTO shaft to the rear tractor PTO maximum of 25 mm (1 inch) on each side.
  • Page 9: Adjusting The 3-Point-Lift Stop

    Adjusting the 3-Point-Lift Removing the Blower from Stop the Tractor No Parts Required No Parts Required Procedure Procedure Park the machine on a level surface, disengage Adjust and set the 3-point-lift stop to provide the PTO, engage the parking brake, shut off the approximately 10 cm (4 inches) ground clearance, traction unit engine, and remove the key from when in the raised position, to minimize the PTO angle...
  • Page 10: Product Overview

    Contact your Authorized Service Dealer or authorized Toro • Become familiar with the safe operation of the distributor or go to www.Toro.com for a list of all equipment, operator controls, and safety signs. approved attachments and accessories. •...
  • Page 11: Adjusting The Discharge Direction

    Adjusting the Discharge During Operation Direction During Operation Safety The direction of the discharge opening can be changed from the side to the front by moving the control handle (Figure General Safety • The owner/operator can prevent and is responsible for accidents that may cause personal injury or property damage.
  • Page 12: Operating Tips

    For all PTO shaft steel parts (tubes, bearings, WARNING joints, etc.) disassembly or repairs, it is highly advisable to contact your local Toro Discharged air has considerable force and distributor. Removal of components for repairs could cause injury or loss of footing.
  • Page 13: After Operation

    After Operation After Operation Safety General Safety • Park the machine on a firm, level surface; shut off the traction unit engine, remove the key, wait for all moving parts to stop, and allow the machine to cool before adjusting, repairing, cleaning, or storing the machine.
  • Page 14: Maintenance

    Do not rely on a hydraulic system to support the or its use may result in injury or death. Such use machine; support the machine with blocks or jack could void the product warranty of The Toro® stands when working beneath it. Company.
  • Page 15: Lubrication

    Lubrication Drive Shaft Service Interval: Every 100 hours Greasing the Machine Grease the 2 drive-shaft fittings (Figure 12). The machine has grease fittings that you must lubricate regularly with No. 2 lithium grease. Fan-Shaft Bearings Service Interval: Every 100 hours Grease the 2 fan shaft bearings (Figure 10).
  • Page 16: Belt Maintenance

    Belt Maintenance Adjusting the Blower Belt Service Interval: Every 20 hours Ensure that the belt is properly tensioned to ensure proper operation of the machine and unnecessary wear. Check the belt frequently. Important: The fasteners on the covers of this machine are designed to remain on the cover after removal.
  • Page 17: Storage

    Storage Thoroughly clean the blower. Note: The fan housing should be free of dirt, leaves, and debris. Lubricate all grease fittings. Wipe off any excess lubricant. Place a light coat of grease on the splines of the PTO shaft. Tighten all fasteners.
  • Page 18: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action There is excessive vibration. 1. The bearing(s) on the fan shaft is 1. Replace the bearings. damaged. 2. Material is built up on the fan blades. 2. Clean out any build up on the inside of the housing.
  • Page 19 Notes:...
  • Page 20 Notes:...
  • Page 21 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
  • Page 22 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
  • Page 23 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
