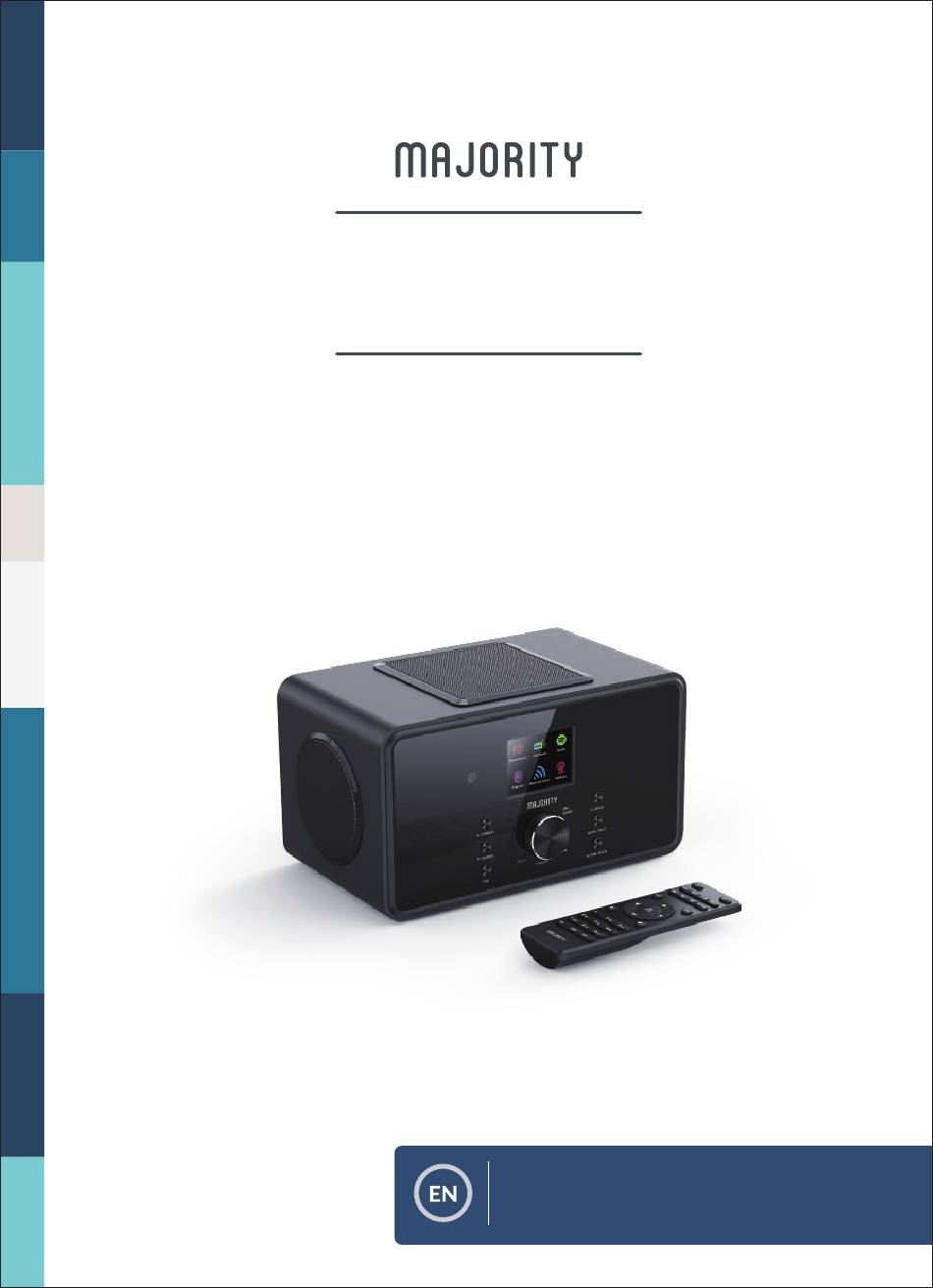

- Page 1 BA RD Internet Radio M usic System Instructions Guide...
-
Page 2: Table Of Contents
Content Package contents ……………………………………………………..………..….………… 3 Overview …………………………………………………………………………...……………. 3 Getting Started ………………………………………….…………………………………….. 6 Mode Operation ………………………………………………………………………………. 9 Internet Radio, Podcasts …………………………………………………………………. 9 Spotify Connect …………………………………………………………………………….. 10 USB Music Player ………………………………………………………………………….. 10 DAB+ Radio …………………………………………………………………………………… 12 FM Radio ………………………………………………………………………………………. 13 Bluetooth ……………………………………………………………………………………… 14 AUX in ……………………………………………………………………………………………... -
Page 3: Package Contents

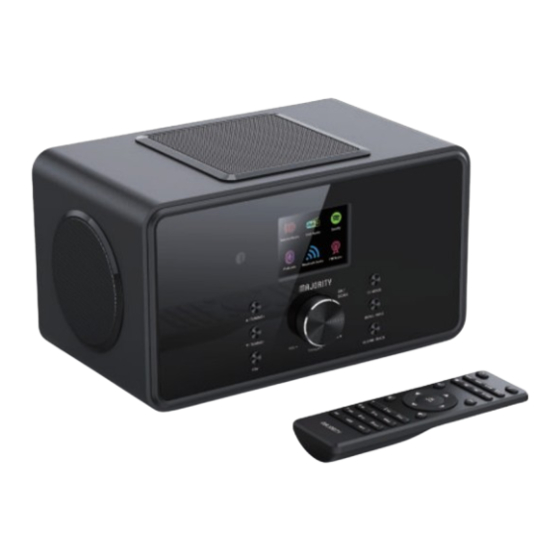

Package Contents The items enclosed in the packaging box are as follows: Bard Music System Power adaptor Remote control 3.5mm audio cable User manual Overviews Front 2.4” screen Colour TFT display Remote control sensor Receive remote control signal UP/ TUNING UP Move up or right ;... - Page 4 MENU / INFO button Enter the menu; View the information of the station or track ALARM / BACK button Set alarm clock; Return one step under the menu Back Antenna for enhancing DAB/FM reception DAB+/FM antenna ON/OFF switch Switch on/off the device DC IN Plug for power support USB port...
- Page 5 Remote Control Device power on/off; alarm off MODE Open, close mode selection MENU Press to open, close menu Select previous track, hold down to seek Start playback, pause Select equalizer preset Move up; FM: Set frequency Move left, step back Confirm entry;...
-
Page 6: Getting Started
Close the battery compartment cover. Getting Started Connection and Preparation Connect the power adaptor to the back of device and plug it into power socket. It starts up after switching on the device. Connecting the network • A broadband connection in combination with a wireless access point, router or similar network device. - Page 7 After language be chosen, it displays information of privacy policy. Press OK button to continue. Then a setup wizard appears for helping you setup the main use of the device. Select “YES” and confirm your will launch the setup wizard. If you select “NO”, the next window will ask you choose if you want to start the setup wizard again next time you power the device on.
- Page 8 For more information on setting up a WPS encrypted network, see your WPS router’s instructions. Device attempts to connect to the selected network. It will show connected if the setup is successful. If connecting fails, it returns to a previous screen to try again. Once completed, press OK to quit the setup wizard. Presets Presets are stored in the radio and cannot be accessed from other radios.
-
Page 9: Mode Operation
Before using the UNDOK app, make sure the device and the smartphone / tablet are in the same WiFi network. Launch the app. The app initializes and scans for Internet Radio in the network. Tap the device to make the connection. When prompted, enter the current PIN code. -
Page 10: Spotify Connect
Press it to display a list of the devices available on the network. Now select “Majority Bard” and the playback will take place on the radio. A successful connection is indicated by the name of the device in green text. You... -
Page 11: Dab Radio
Once you have found a track you want to play, press OK. A short press plays the track immediately. Note: The USB port is just for music MP3 playback, it supports no charging functionality. Supported USB file systems: FAT16, FAT32 The maximum device capacity: 128 GBytes Maximum number of items (files/sub directories) in an y directory: 5000 Maximum depth of file system tree: 8 directory levels... - Page 12 Scanning for stations The first time you select DAB radio mode, or if the station list is empty, the radio automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: Available stations change from time to time.
-
Page 13: Fm Radio
If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high. Station order You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid. -
Page 14: Bluetooth
You can turn on the Bluetooth of your Bluetooth device and search the radio Majority Bard to pairing. When it is waiting for pairing, there is a blinking Bluetooth icon at the bottom. If the pairing is successful, the Bluetooth icon becomes steady. -
Page 15: Alarm
Alarm There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode. Select Alarms under Main menu to set or change an alarm. Select the alarm number (1 or 2) then configure the following parameters: Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,... -
Page 16: Equaliser
Equaliser Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News. Also a user-defined setting is available; create your own EQ with custom bass, treble settings. Network Network wizard - Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network. -
Page 17: Time/Date
Time/Date Set the time manually or auto update, time format, time zone and daylight. Details can be referred to Setting date and time under to Section 3 (First Time Setup). Language The default language is English. Change it as your preference. There are 13 languages available - English, Dansk, Deutsch, Español, Français, Italiano, Nederlands, Norsk, Polski, Português, Suomi, Svenska, Türkçe Factory Reset... -
Page 18: Info
Info Enter Info to view the firmware version and the radio ID. Privacy Policy View the information of Privacy Policy. Please read the data protection regulations listed there or go to this website: www.frontiersmart.com/privacy Backlight You may change the backlight of each environment (power on or standby) to High, Medium or Low. - Page 19 2. Place the device closer to the router. 3. Make sure the password is correct. No station is found. 1. Check the network as well as the access point and firewall. 2. The station may not be available currently, try again later.
-
Page 20: Technical Specification
Technical Specification Model number Majority Bard Description Internet Radio Music System Speaker output power 100W Display 2.4", 320 x 240, colour TFT display 87.5 – 108.0 MHz, RDS supported 174 – 240 MHz (Band III) DAB/DAB+ Power adaptor 15.0V 2.4A 36.0W... - Page 21 Power Adaptor Manufacturer’s name Dongguan Green Power One Co., Ltd. Address No.26, Hongyun Street, Chonghe Village, Qingxi Town, Dongguan City, P.R, China Model no. GA361-1502400E, GA361-1502400B 100 – 240V ~ AC, 50/60Hz, 1.2A Input voltage Output voltage DC 15.0V Output current 2.4 A Output power 36.0 W...
-
Page 22: Disposal
Disposal • If have to dispose the device in the future, note that all electrical and electronic device must be disposed of separately from household waste at official disposal centres. • Avoid damage to the environment and risks to your personal health by disposing of device properly. - Page 23 • No naked flame sources, such as lighted candles, should be placed on the apparatus. Power adapter • Only use the power adaptor delivered with the device. • The socket outlet should be installed near the device and should be easily accessible. •...
