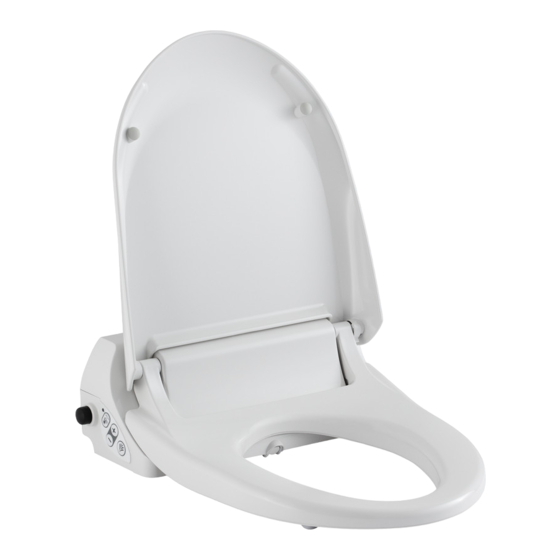

Geberit AquaClean 4000 Operating Instructions Manual
Hide thumbs
Also See for AquaClean 4000:
- User manual (32 pages) ,
- Installation manual (28 pages) ,
- Quick manual (9 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Geberit AquaClean 4000
Summary of Contents for Geberit AquaClean 4000
- Page 1 Geberit AquaClean 4000 Operating instructions...
-
Page 3: Table Of Contents
Operating Instructions Geberit AquaClean 4000 For true well-being ....................4 Easy to operate........................ 4 Any questions about Geberit AquaClean? ................ 4 Warranty card registration ....................4 Environment........................4 Important notes ...................... 5 Intended use ........................5 Declaration of conformity ....................5 For your safety ......................... -
Page 4: For True Well-Being
Substances" (2002/95/EC). It is largely free from hazardous substances such as lead, mercury, cadmium and chrome VI, which are environmental pollutants. All old Geberit AquaClean 4000 can be returned to Geberit free of charge for appropriate disposal. This arrangement applies to all EU member states as well as to Switzerland and Norway. -
Page 5: Important Notes
For your safety • In the event of evidence of damage to the Geberit AquaClean, disconnect the unit from the mains immediately and contact Geberit Customer Service. • If the mains connection cable is damaged, it must be replaced by a skilled person. -
Page 6: Geberit Aquaclean 4000 Operation
Operating Instructions Geberit AquaClean 4000 Geberit AquaClean 4000 operation Overview of controls 1 Specification plate and serial number 2 Control panel 3 Mains connection cable with plug 4 Cleaning instructions for end users 5 Drain screw 6 Spray arm 7 Compensation pad... -
Page 7: Integrated Control Panel
Operating Instructions Geberit AquaClean 4000 Integrated control panel <Shower>, start and stop Press the button: The spray arm moves into position and the shower procedure starts. The shower automatically stops after 20 s. You can stop the shower before this by pressing the <shower>... -
Page 8: Using Geberit Aquaclean 4000
The shower spray gradually cools down continuously during the shower procedure. You start the toilet flush as usual by pressing the flush plate on the cistern. The Geberit AquaClean 4000 can be used as a normal toilet at any time. 1 Sit down on the toilet. -
Page 9: What You Should Know
Operating Instructions Geberit AquaClean 4000 What you should know Spray shield The spray shield can be used to test the performance of the Geberit AquaClean 4000 without anyone sitting on the toilet. 1 Spray shield WC seat and lid with lowering function Dampers cushion the WC seat and lid noiselessly and slow down closing. -
Page 10: Care And Cleaning
Components To meet demands for design and performance, the Geberit AquaClean 4000 comprises a number of different components. Therefore, we ask that you follow the cleaning instructions below, as the warranty does not cover surface damage and material damage caused by improper use. -
Page 11: Permissible Cleaning Agents And Cleaning Equipment
Operating Instructions Geberit AquaClean 4000 Permissible cleaning agents and cleaning equipment Cleaning agents Cleaning agents are permitted to have a low acid content, e.g. they may contain citric acid. Cleaning agents should ideally be diluted with water. Cleaning agents must be fluid. -
Page 12: Non-Permissible Cleaning Agents And Cleaning Equipment
Operating Instructions Geberit AquaClean 4000 Non-permissible cleaning agents and cleaning equipment Cleaning agents The use of powdery cleaning agents, such as scouring powder or scouring agent, is not permitted. The use of corrosive cleaning agents, such as concentrated drain cleaners, is not permitted. -
Page 13: Tips
Operating Instructions Geberit AquaClean 4000 Tips Problem Fault clearance Use of disinfectants Apply disinfectant with a soft cloth and wipe the components clean. Test the disinfectant for suitability. Spray nozzle blocked with limescale or To clean the spray nozzle, submerge it in standard clogged by foreign bodies in the water limescale remover for a few hours. -
Page 14: Troubleshooting
Operating Instructions Geberit AquaClean 4000 Troubleshooting DANGER Danger of fatal electric shock ` Never open and repair the device yourself ` Never replace damaged mains connection cables yourself ` Contact customer service Malfunctions during operation Malfun c c tion Cause... - Page 15 Operating Instructions Geberit AquaClean 4000 Malfun c c tion Cause Fault clearance a lt c LED flashes red: once every Temperature sensor is defective Contact customer service LED flashes red: twice every Angle stop valve is closed Open the angle stop valve...
-
Page 16: Cleaning Or Replacing The Spray Nozzle
Operating Instructions Geberit AquaClean 4000 Cleaning or replacing the spray nozzle 1 Lift up the WC seat and WC lid. 2 Press the <+> and <-> or <+> and <shower> buttons at the same time. Result The spray arm extends without spraying any water. -
Page 17: Cleaning Or Replacing The Basket Filter
Operating Instructions Geberit AquaClean 4000 Cleaning or replacing the basket filter 1 Close the angle stop valve. 2 Loosen the connection bend and empty the residual water into a receptacle. 3 Remove the basket filter. 4 Clean and descale the basket filter. -
Page 18: Replacing The Compensation Pads
Operating Instructions Geberit AquaClean 4000 Replacing the compensation pads The Geberit AquaClean 4000 can be damaged if the compensation pads do not lie evenly on the WC ceramic appliance. 1 Lift up the WC seat and WC lid. 2 Remove the damaged compensation pad. -
Page 19: Emptying The Storage Water Heater
Operating Instructions Geberit AquaClean 4000 Emptying the storage water heater If you are not going to use the Geberit AquaClean 4000 for a long period of time, we recommend that you empty the storage water heater. As soon as you put the Geberit AquaClean 4000 back into operation, the storage water heater fills with water again automatically. -
Page 20: Removing And Fitting The Wc Seat And Wc Lid
Operating Instructions Geberit AquaClean 4000 Removing and fitting the WC seat and WC lid 1 Lift up the WC lid and turn the lid lock upwards. 2 Lift the WC lid and pull it off the right hinge pin. 3 Pull out the left hinge pin and pull the WC seat slightly forwards. - Page 21 Operating Instructions Geberit AquaClean 4000 4 Pull the WC seat off the right hinge pin and remove it. 5 Slide the cleaned WC seat onto the right hinge pin. 6 Push in the left hinge pin and turn it to engage.
- Page 22 Operating Instructions Geberit AquaClean 4000 7 Slide the cleaned WC lid onto the left hinge pin and insert it again on the right side. 8 Turn the lid lock downwards and close the WC lid.
-
Page 23: Technical Data
Operating Instructions Geberit AquaClean 4000 Technical data Nominal voltage 230 V AC Mains frequency 50–60 Hz Power consumption 800 W Power consumption standby / with heating element 0.9 / 5.8 W switched on Protection degree IP x4 Protection class Length of mains connection cable Flow rate, anal shower 0.9–1.6 l/min... -
Page 24: End User Warranty
Geberit and contracted by the end user to repair the product. The end user shall not be entitled to assert more extensive claims against Geberit on the basis of this warranty. - Page 27 First name: Surname: Company: Address: Postcode: Town: Installation date: Signature: Serial number [ ] bahama beige [ ] white alpine [ ] manhattan [ ] pergamon...
- Page 28 Fax (075 52) 934 866 www.i-love-water.de (DK) Geberit A/S (TR) Geberit Tesisat Sistemleri Tic Lægårdsvej 26 Ltd. ti. (AT) Geberit Vertriebs GmbH & Co. KG DK-8520 Lystrup Koþuyolu Cad. No: 33 Geberit AquaClean Schauraum Tlf. +45 86 74 10 86 34718 Kadýköy- Ýstanbul Turkey...
