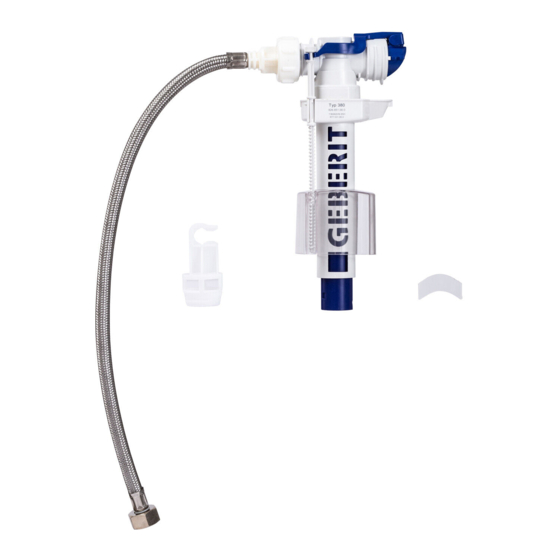

Geberit Impuls380 Product Installation

吉博力产品安装指导说明书-"Impuls380"
进水阀无补水
Geberit Product Installation-inlet valve
"Impuls380"without re ll
1a.
将进水阀卡入溢流管上部的固定架内；将进水
管的接头套上封水垫圈,插入进水孔,并拧紧安
装螺母，之后装入过滤网。
Fix the filling valve into the fixation frame;
Assemble a seal on screw connector, insert
it to water inlet hole and fastenthe nut then
to be fixed with a filter.
2a.
将进水阀固定在溢流管上部的固定架内,然后将
进水阀的软管接头与进水管的螺母装配好，注意
装好密封圈和过滤网。
Assemble the filling valve into the filling valve
fixation above the overflow pipe. Then assemble
the mental flexible pipe and connector nut.
Advert to assemble the seal and the filter.
170.543.00.0
注意:必须安装过滤网,并且定期清洗。
Please note that the filter must be assembled and it should be cleaned regularly.
1b.
6 L
旋转调节杆以调整工作水位，顺时针方向水位升
高，反之降低；确保工作水位到溢流管顶部的距
离不小于2cm。
Turning regulation pin in lockwise can adjust
working level, the water level will rise and vice
versa. Assure the minimum distance between
working level to the overflow top not less than
2cm.
2b.
6 L
旋转调节杆以调整工作水位，顺时针方向水位
升高，反之降低；确保工作水位到溢流管顶部
的距离不小于2cm。
Turning regulation pin in lockwise can adjust
working level, the water level will rise and
vice versa. Assure the minimum distance
between working level to the overflow top not
