Spectrum Digital eZdsp F28335 Quick Start Installation Manual page 2

Install eZdsp Content from the CD-ROM
Before you install the eZdsp software, please make sure
you are using Administrator privileges and any virus
checking software is turned off. The eZdsp board should
not be plugged in at this point.

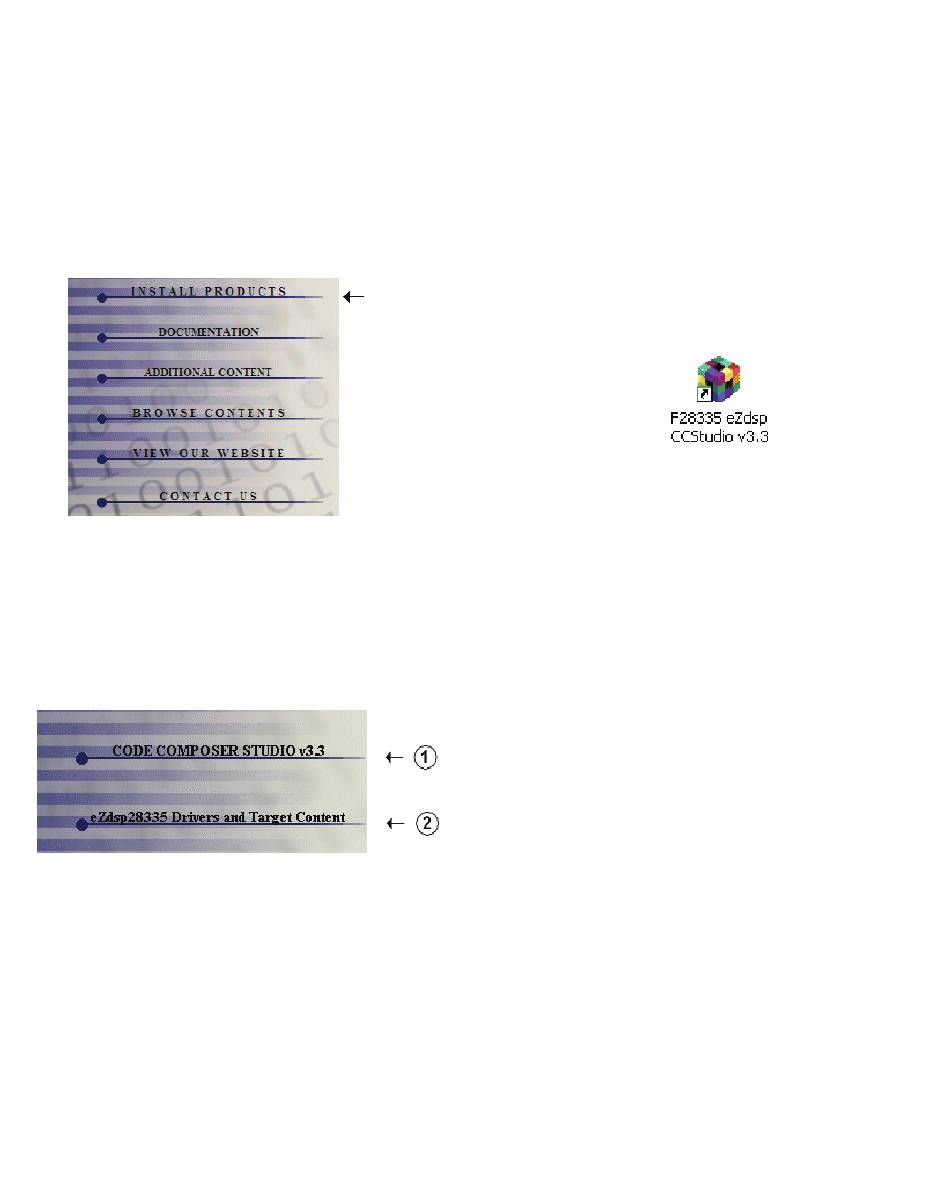

1. Insert the Code Composer Studio installation CD into
the CD-ROM Drive. An install menu (see below)
should appear. If it does not, manually run
Launch.exe from the CD-ROM. Select the Install
Products option from the menu.
2. Install any components you need. To debug with the
eZdsp you must have 1) a copy of Code Composer
Studio, 2) the target content package for your
board.
Users of the full Code Composer Studio package can
skip the Code Composer installation and simply install
the target content packages.
3. The installation procedure will create an icon on your
desktop for F28335 CCStudio.
Connect the eZdsp to Your PC
Connect the supplied USB cable to your PC or laptop.
1.
We recommend that anyone making hardware
modifications connect through a USB hub for safety.
2. Connect the included +5V power adapter brick to your
AC power source using the AC power cord.
3. Apply power to the eZdsp by connecting the power
brick to the +5V input on the eZdsp.
12502 Exchange Dr., Ste 440, Stafford, TX. 77477
4. Make sure your eZdsp CD-ROM is installed in your
CD-ROM drive. Now connect the eZdsp to your PC
using the included USB. After few seconds Windows
will launch its "Add New Hardware Wizard" and
prompt for the location of the eZdsp drivers.
5. Follow the instructions on the screens and let
Windows find the USB driver files "r28xxez.inf" and
"sdusb2em.sys" on the eZdsp CD-ROM. On XP
systems Windows will find the drivers automatically.
Starting Code Composer
To start Code Composer Studio, double click the F28335
eZdsp CCStudio icon on your desktop.
Once CCS has started select Debug->Connect from the
menu bar. Target Connect/Disconnect is a new feature
in CCS 3.3.
Note: paid annual software subscription service is not
available for eZdsp products.
F28335 eZdsp Hardware Registration
The eZdsp F28335 hardware can be registered using the
on-line registration process at www.spectrumdigital.com.
Spectrum Digital, Inc. warrants the products it produces
for one (1) year after the date of purchase. For a product
to be considered "in warranty", Spectrum Digital must be
notified of the defect within one (1) year after being
purchased from Spectrum Digital or one of its authorized
resellers. Spectrum Digital is not responsible for accidents,
improper installation of connections, misuse, neglect or
unauthorized modifications. If the product qualifies for
warranty repair Spectrum Digital may repair or replace the
product at its discretion.
