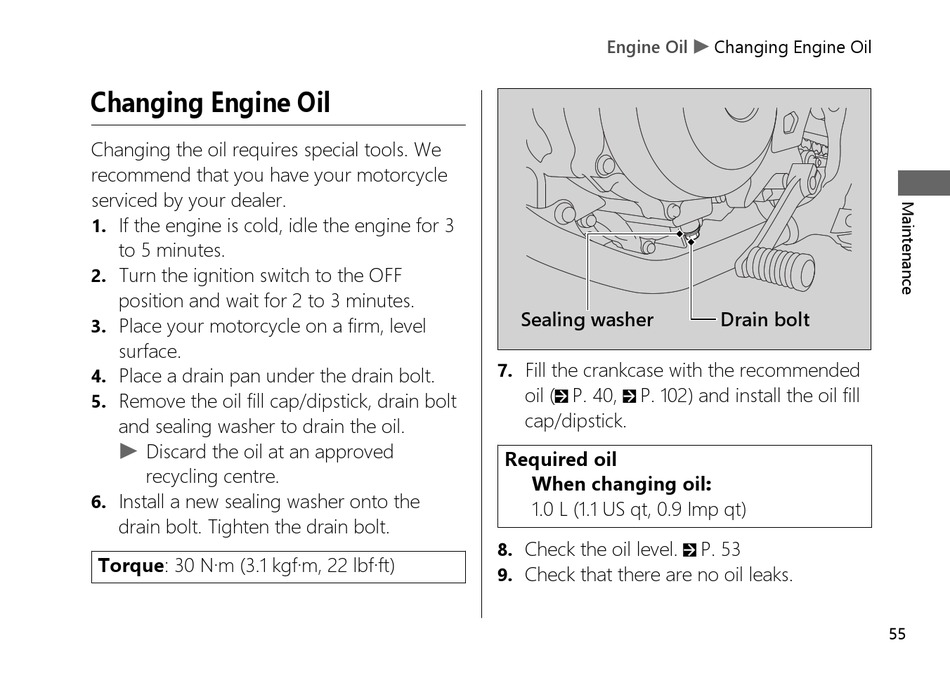

Changing Engine Oil
Changing the oil requires special tools. We
recommend that you have your motorcycle
serviced by your dealer.
If the engine is cold, idle the engine for 3
1.
to 5 minutes.
Turn the ignition switch to the OFF
2.
position and wait for 2 to 3 minutes.
Place your motorcycle on a firm, level
3.
surface.
Place a drain pan under the drain bolt.
4.
Remove the oil fill cap/dipstick, drain bolt
5.
and sealing washer to drain the oil.
Discard the oil at an approved
u
recycling centre.
Install a new sealing washer onto the
6.
drain bolt. Tighten the drain bolt.
Torque: 30 N·m (3.1 kgf·m, 22 lbf·ft)
Engine Oil
Sealing washer
Fill the crankcase with the recommended
7.
oil (
P. 40,
P. 102) and install the oil fill
2
2
cap/dipstick.
Required oil
When changing oil:
1.0 L (1.1 US qt, 0.9 Imp qt)
Check the oil level.
8.
Check that there are no oil leaks.
9.
Changing Engine Oil
u
Drain bolt
P. 53
2
55
