Seat - Honda XR150 2018 Owner's Manual

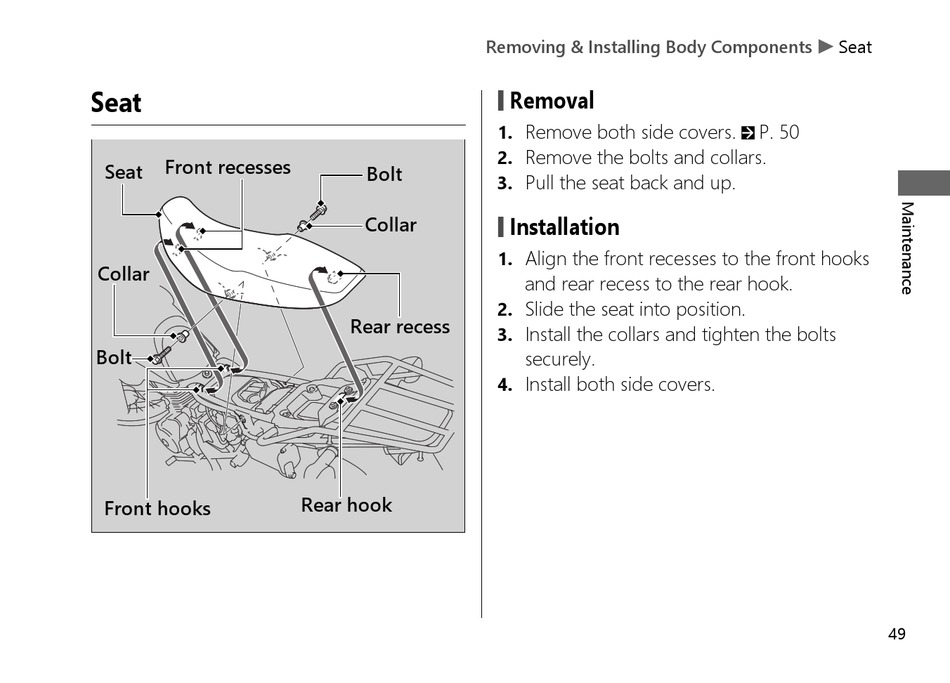

Seat

Front recesses
Seat
Collar
Bolt
Front hooks
Bolt
Collar
Rear recess
Rear hook
Removing & Installing Body Components
# Removal
Remove both side covers.
1.
Remove the bolts and collars.
2.
Pull the seat back and up.
3.
#
Installation
Align the front recesses to the front hooks
1.
and rear recess to the rear hook.
Slide the seat into position.
2.
Install the collars and tighten the bolts
3.
securely.
Install both side covers.
4.
Seat
u
P. 50
2
49
