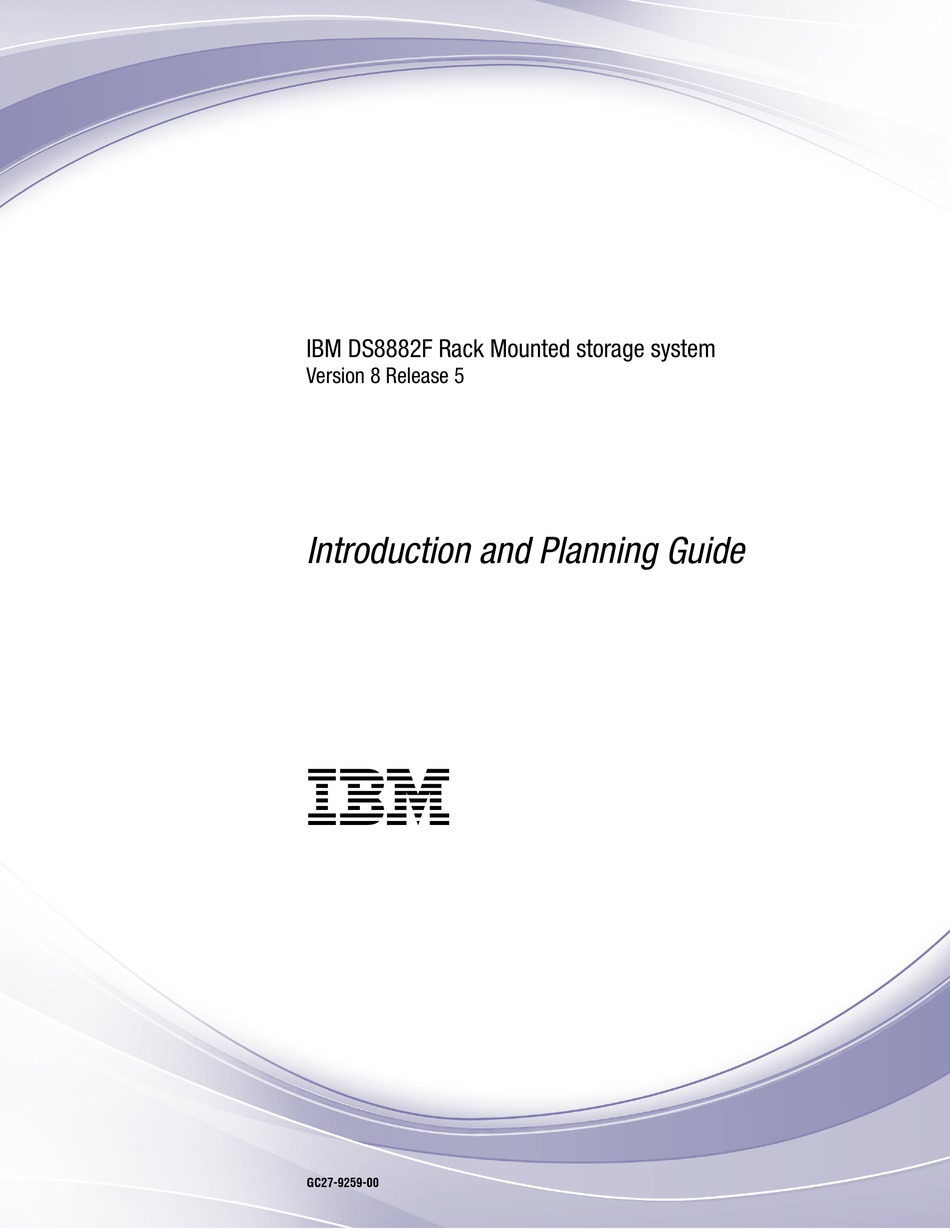

IBM DS8882F Rack Mounted storage system
Version 8 Release 5
Introduction and Planning Guide
IBM
GC27-9259-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS8882F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBM DS8882F

Summary of Contents for IBM DS8882F

  • Page 1 IBM DS8882F Rack Mounted storage system Version 8 Release 5 Introduction and Planning Guide GC27-9259-00...
  • Page 2 Before using this information and the product it supports, read the information in “Safety and environmental notices” on page 133 and “Notices” on page 131. This edition applies to version 8, release 5 of the DS8882F Rack Mounted storage system. © Copyright IBM Corporation 2018.

  • Page 3: Table Of Contents

    . 45 Hardware . Disaster recovery through Copy Services . 54 DS8882F (machine type 533x model 983) . Resource groups for Copy Services scope limiting 55 High Performance Flash Enclosures Gen2 pair . Comparison of Copy Services features . . 57 Management enclosure .
  • Page 4 Index ....149 Selecting a data migration method . . 108 Chapter 9. Planning for security . . . 111 Planning for data encryption . . 111 DS8882F Introduction and Planning Guide...

  • Page 5: About This Book

    About this book This book describes how to plan for a new installation of the DS8882F Rack Mounted storage system. It includes information about planning considerations, customization guidance, and configuration. Who should use this book This book is intended for personnel that are involved in planning. Such personnel include IT facilities managers, individuals responsible for power, cooling, wiring, network, and general site environmental planning and setup.
  • Page 6 Publications You can order or download individual publications (including previous versions) that have an order number from the IBM Publications Center website (www.ibm.com/shop/publications/order/). Publications without an order number are available on the documentation CD or can be downloaded here.
  • Page 7 DS8000 and supporting storage devices. Table 2. DS8000 series warranty, notices, and licensing publications Title Location Warranty Information http://www.ibm.com/support/docview.wss?uid=ssg1S7005239 for DS8000 series IBM Safety Notices Search for G229-9054 on the IBM Publications Center website IBM Systems http://ibm.co/1fBgWFI Environmental Notices About this book...
  • Page 8 View the websites in the following table to get more information about DS8000 series. Table 3. DS8000 series related websites Title Description ® IBM website (ibm.com Find more information about IBM products and services. IBM Support Portal Find support-related information such as downloads, website(www.ibm.com/storage/ documentation, troubleshooting, and service requests support) and PMRs.

  • Page 9: Ibm Publications Center

    The version of the currently active installed code docview.wss?uid=ssg1S1005392) bundle displays with the DS CLI ver command when you specify the -l parameter. IBM Publications Center The IBM Publications Center is a worldwide central repository for IBM product publications and marketing material. About this book...

  • Page 10: Sending Comments

    Your feedback is important in helping to provide the most accurate and highest quality information. Procedure To submit any comments about this publication or any other IBM storage product documentation: Send your comments by email to ibmkc@us.ibm.com. Be sure to include the...

  • Page 11: Chapter 1. Overview

    I/O enclosure, High Performance Flash Enclosures Gen2, a management enclosure (which includes the HMCs, Ethernet Switches, and RPCs), and battery backup modules to power the DS8882F modules. The HMCs are small form factor computers. The DS8884, DS8886, DS8884F, DS8886F, and DS8888F systems are not documented in this publication.

  • Page 12: Machine Types Overview

    EN 50581:2012 technical documentation for the assessment of electrical and electronic products regarding the restriction of hazardous substances. The IBM Security Key Lifecycle Manager stores data keys that are used to secure the key hierarchy that is associated with the data encryption functions of various devices, including the DS8000 series.

  • Page 13: Hardware

    The model 983 reports 2107 as the machine type to attached host systems. Hardware The architecture of the DS8882F is based on three major elements that provide function specialization and three tiers of processing power. HOST adapters HOST adapters...

  • Page 14: Ds8882F (Machine Type 533X Model 983)

    High Performance Flash Enclosure Gen2 pair with up to 48 Flash Tier 0, Flash Tier 1, or Flash Tier 2 drives. This modular rack-mountable enterprise storage system can be integrated into 16U contiguous space of an existing IBM z14 Model ZR1 (z14 Model ZR1), IBM LinuxONE Rockhopper II (z14 Model LR1), or other...
  • Page 15 6-core 256 GB 365 TB DS8882F (model 983) overview The DS8882F (model 983) consists of eight 2U modules for installation in and existing rack. The model 983 includes the following components: v High Performance Flash Enclosure Gen2 pair v I/O enclosure...

  • Page 16: High Performance Flash Enclosures Gen2 Pair

    Management Enclosure Battery Backup Module Battery Backup Module Figure 2. DS8882F model 983 modules High Performance Flash Enclosures Gen2 pair The High Performance Flash Enclosure Gen2 is a 2U storage enclosure that is installed in pairs. For version 8.5, the model 983 supports only one High Performance Flash Enclosure Gen2 pair.

  • Page 17: Management Enclosure

    – One midplane or backplane for plugging components that provides maintenance of flash drives, Expander Modules, and power supplies Management enclosure The model 983 contains a management enclosure. The management enclosure contains the following components: v Two Hardware Management Consoles (HMCs) v Two Ethernet switches v Two power control cards v Two power supply units (PSUs) to power the management enclosure...

  • Page 18: Power

    If both battery backup modules lose input power, they have sufficient capacity to continue to supply AC power to the DS8882F until it has completed a fire hose dump to protect modified data. The system will then gracefully power off.
  • Page 19 The LDAP server can have existing users and user groups that can be used for authentication on the DS8882F system. Setting up unified sign-on support for the DS8882F system is achieved by using IBM Copy Services Manager or IBM Spectrum Control. .
  • Page 20 The DS8882F storage system can work in cooperation with IBM Z hosts to provide the following performance enhancement functions. v Extended Address Volumes...

  • Page 21: Logical Configuration

    I/O Priority Manager on the Advanced tab of the System settings page in the DS8000 Storage Management GUI. Restriction of hazardous substances (RoHS) The DS8882F system meets RoHS requirements. It conforms to the following EC directives: v Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
  • Page 22 FB volumes are connected through host ports to an open systems host. CKD volumes require that logical subsystems (LSSs) be created as well so that they can be accessed by an IBM Z host. Pools must be created in pairs to balance the storage workload. Each pool in the pool pair is controlled by a processor node (either Node 0 or Node 1).

  • Page 23: Logical Configuration With Ds Cli

    1 GiB, and a small extent is 16 MiB. If you work in an IBM Z environment, a large extent is the size of an IBM 3390 Mod 1 disk drive (1113 cylinders), and a small extent is 21 cylinders.
  • Page 24 You can also assign host connection nicknames and host port nicknames. Host connection nicknames can be up to 28 characters, which is expanded from the previous maximum of 12. Host port nicknames can be 32 characters, which are expanded from the previous maximum of 16. DS8882F Introduction and Planning Guide...

  • Page 25: Raid Implementation

    Disk Array Array Site Rank = CKD Mod1 Extent in IBM System z environments = FB 1GB in an Open systems Host Extents Virtualization Extent Pool Volume Groups Map Hosts to Volumes Logical Volume Volume Group Figure 4. Logical configuration sequence RAID implementation RAID implementation improves data storage reliability and performance.
  • Page 26 RAID 10 implementation provides data mirroring from one disk drive to another disk drive. RAID 10 stripes data across half of the disk drives in the RAID 10 configuration. The other half of the array mirrors the first set of disk drives. Access DS8882F Introduction and Planning Guide...

  • Page 27: Logical Subsystems

    If you might need capacity increases in the future, leave the number of LSSs set to the maximum of 255. Note: If you reduce the CKD LSS limit to zero for IBM Z hosts, the storage system does not process Remote Mirror and Copy functions. The FB LSS limit must be no lower then eight to support Remote Mirror and Copy functions for open-systems hosts.
  • Page 28 When a volume is managed by Easy Tier, the allocation method of the volume is referred to as managed. Easy Tier allocates the capacity in ways that might differ from both the rotate capacity and rotate volume allocation methods. DS8882F Introduction and Planning Guide...

  • Page 29: Management Interfaces

    8451). DS command-line interface The IBM DS command-line interface (DS CLI) can be used to create, delete, modify, and view Copy Services functions and the logical configuration of a storage system. These tasks can be performed either interactively, in batch processes (operating system shell scripts), or in DS CLI script files.

  • Page 30: Ds Open Application Programming Interface

    Either way, the DS Open API presents another option for managing storage units by complementing the use of the IBM Storage Management GUI web-based interface and the DS command-line interface. Note: The DS Open API supports the storage system and is an embedded component.

  • Page 31: Ibm Spectrum Control

    With IBM Spectrum Control, it is possible to manage multiple DS8000 systems from a single point of control. Note: IBM Spectrum Control is not required for the operation of a storage system. However, it is recommended. IBM Spectrum Control can be ordered and installed as a software product on various servers and operating systems.

  • Page 32: Ds8000 Storage Management Gui Supported Web Browsers

    Microsoft Internet Explorer 11 Google Chrome 43 IBM supports higher versions of the browsers as long as the vendors do not remove or disable functionality that the product relies upon. For browser levels higher than the versions that are certified with the product, customer support accepts usage-related and defect-related service requests.
  • Page 33 4. Scroll to Scripting, and select Active scripting. Configuring Internet Explorer to access the DS8000 Storage Management GUI If DS8000 Storage Management GUI is accessed through IBM Spectrum Control with Internet Explorer, complete the following steps to properly configure the web browser.
  • Page 34 DS8882F Introduction and Planning Guide...

  • Page 35: Chapter 2. Hardware Features

    Non-encryption certification key Required when the storage system model is shipped to China or Russia. 0937 zFlex Frame field merge Indicates that the DS8882F will be installed in an existing IBM z14 model ZR1 rack 0938 Rockhopper II field merge...
  • Page 36 Includes 16 fillers Gen2 filler set 1765 Optional 1U keyboard and display Not available with ZR1 feature code 0937 or LR1 feature code 0938 1885 DS8000 Licensed Machine Code R8.5 Microcode bundle 88.x.xx.x for base model 983 DS8882F Introduction and Planning Guide...

  • Page 37: Storage Complexes

    The management console is a dedicated processor unit that can automatically monitor the state of your system, and notify you and IBM when service is required. To provide continuous availability of your access to the management-console functions, use an additional management console (already provided with model 983).

  • Page 38: Storage System Structure

    A minimum of two spare drives are allocated in a device adapter loop. Internal maintenance functions continuously monitor and report (by using the call home feature) to IBM when the number of drives in a spare pool reaches a preset threshold. This design ensures continuous availability of devices while it protects data and minimizing any service disruptions.

  • Page 39: Host Attachment Overview

    The storage system provides extensive connectivity using Fibre Channel adapters across a broad range of server environments. Host adapter intermix support The DS8882F model 983 provides only 4-port 16 Gbps host adapters, and a maximum of 16 ports is available. DS8882F model 983 The following table shows the host adapter plug order.

  • Page 40: I/O Load Balancing

    You can mix production and test servers in an open systems environment or mix open systems and IBM Z hosts. In this type of environment, servers rarely, if ever, contend for the same resource.

  • Page 41: Count Key Data

    T10 DIF support American National Standards Institute (ANSI) T10 Data Integrity Field (DIF) standard is supported on IBM Z for SCSI end-to-end data protection on fixed block (FB) LUN volumes. This support applies to the IBM DS8880 unit (98x models).

  • Page 42: Logical Volumes

    T10 DIF volumes can be used by any type of Open host with the exception of iSeries, but active protection is supported only for Linux on IBM Z or AIX on ™ IBM Power Systems . The protection can only be active if the host server has T10 DIF enabled.

  • Page 43: Lun Calculation

    If you migrate an existing non-striped volume to the same extent pool with a rotate extents allocation method, then the volume is "reorganized." If you add more ranks to an existing extent pool, then the "reorganizing" existing striped volumes spreads them across both existing and new ranks. You can configure and manage storage pool striping using the DS Storage Manager, and DS CLI, and DS Open API.

  • Page 44: Extended Address Volumes For Ckd

    On open volumes with 520 byte blocks, you can select one of the supported LUN sizes that are used on IBM i processors to create a LUN. The operating system uses 8 of the bytes in each block. This leaves 512 bytes per block for your data. Variable volume sizes are also supported.

  • Page 45: Quick Initialization

    You can create a 1 TB IBM Z CKD volume. A IBM Z CKD volume is composed of one or more extents from a CKD extent pool. CKD extents are 1113 cylinders in size. When you define a IBM Z CKD volume, you must specify the number of cylinders that you want for the volume.
  • Page 46 DS8882F Introduction and Planning Guide...

  • Page 47: Chapter 3. Data Management Features

    16K block size requirement. This process also eliminates recycle processing and the OCDS. Transparent cloud tiering translates into significant savings in CPU utilization within z/OS, specifically when you are using both DFSMShsm and transparent cloud tiering. © Copyright IBM Corp. 2018...
  • Page 48 The storage system supports the OpenStack Swift and Amazon S3 APIs. The storage system also supports the IBM TS7700 as an object storage target and the following cloud service providers: v Amazon S3...

  • Page 49: Dynamic Volume Expansion

    Open systems FB volumes: 16 TB v IBM Z CKD volume types 3390 model 9 and custom: 65520 cylinders v IBM Z CKD volume type 3390 model 3: 3339 cylinders v IBM Z CKD volume types 3390 model A: 1,182,006 cylinders...

  • Page 50: Extent Space Efficient (Ese) Capacity Controls For Thin Provisioning

    10: the percent of the available ESE capacity is zero Note: When the size of the extent pool remains fixed or is only increased, the allocatable physical capacity remains greater than or equal to the allocated physical DS8882F Introduction and Planning Guide...

  • Page 51: Ibm Easy Tier

    IBM Easy Tier Easy Tier is an optional feature that is provided at no cost. It can greatly increase the performance of your system by ensuring frequently accessed data is put on faster storage.

  • Page 52: Vmware Vstorage Api For Array Integration Support

    Write command for reading and writing the volume's metadata within a single operation. With the Compare and Write command, the storage system provides a faster mechanism that is displayed to the volume as an atomic action that does not require locking the entire volume. DS8882F Introduction and Planning Guide...

  • Page 53: Performance For Ibm Z

    IBM vCenter plug-in for ESX 4.x The IBM vCenter plug-in for ESX 4.x provides support for the VAAI interfaces on ESX 4.x. For information on how to attach a VMware ESX Server host to a DS8880 with Fibre Channel adapters, see IBM DS8000 series online product documentation ( http://www.ibm.com/support/knowledgecenter/...
  • Page 54 When a host system requests IBM HyperPAV processing and the processing is enabled, aliases on the logical subsystem are placed in an IBM HyperPAV alias access state on all logical paths with a specific path group ID. IBM HyperPAV is only supported on FICON channel paths.

  • Page 55: Copy Services

    TotalStorage Enterprise Storage Server Notes: v If you are creating paths from a DS8882F 4-port host adapter to a previous release DS8000 (Release 6.0 or later), which supports 8-port host adapters, you can only connect the lower four ports of the 8-port host adapter.
  • Page 56 The FlashCopy function allows you to make point-in-time, full volume copies of data so that the copies are immediately available for read or write access. In IBM Z environments, you can also use the FlashCopy function to perform data set level copies of your data.
  • Page 57 FlashCopy is an optional function. The FlashCopy function creates a copy of a source volume on the target volume. This copy is called a point-in-time copy. When you initiate a FlashCopy operation, a FlashCopy relationship is created between a source volume and target volume. A FlashCopy relationship is a mapping of the FlashCopy source volume and a FlashCopy target volume.
  • Page 58 That restriction is now removed. The Remote Pair FlashCopy relationship completes successfully with the “Preserve Mirror, Required” option, even if the status of the Metro Mirror volume pair is either in a suspended or duplex pending state. DS8882F Introduction and Planning Guide...
  • Page 59 Local Storage Server Remote Storage Server full duplex Local A Remote A Establish FlashCopy FlashCopy Metro Mirror full duplex Local B Remote B Figure 5. Remote Pair FlashCopy Note: The storage system supports Incremental FlashCopy and Metro Global Mirror Incremental Resync on the same volume. Safeguarded Copy The Safeguarded Copy feature creates safeguarded backups that are not accessible by the host system and protects these backups from corruption that can occur in...
  • Page 60 To see a current list of environments, configurations, networks, and products that support remote mirror and copy functions, click Interoperability Matrix at the following location IBM System Storage Interoperation Center (SSIC) website (www.ibm.com/systems/support/storage/config/ssic). The remote mirror and copy feature provides synchronous (Metro Mirror) and asynchronous (Global Copy) data mirroring.
  • Page 61 ™ ® Dispersed Parallel Sysplex (GDPS ), which is available for IBM Z environments, to ensure data consistency to multiple Metro Mirror volume pairs in a specified logical subsystem. Common options for Metro Mirror/Global Mirror and Global Copy include the following modes:...
  • Page 62 Metro/Global Mirror Provides a three-site, long-distance disaster recovery replication that combines Metro Mirror with Global Mirror replication for both IBM Z and open systems data. Metro/Global Mirror uses synchronous replication to mirror data between a local site and an intermediate site, and asynchronous replication to mirror data from an intermediate site to a remote site.
  • Page 63 3-site z/OS Metro/Global Mirror configurations. The storage system supports z/OS Metro/Global Mirror that is a 3-site mirroring solution that uses IBM System Storage Metro Mirror and z/OS Global Mirror (XRC). The z/OS Metro/Global Mirror Incremental Resync capability is intended to enhance this solution by enabling resynchronization of data between sites by using only the changed data from the Metro Mirror target to the z/OS Global Mirror target after a HyperSwap operation.

  • Page 64: Disaster Recovery Through Copy Services

    This function is supported on the storage system running in a IBM Z environment with version 1.7 or later at no additional charge. Interoperability with existing and previous generations of the DS8000 series All of the remote mirroring solutions that are documented in the sections above use Fibre Channel as the communications link between the primary and secondary storage systems.

  • Page 65: Resource Groups For Copy Services Scope Limiting

    Manually using external software (without Global Mirror) You can use Metro Mirror, Global Copy, and FlashCopy functions to create a consistent and restartable copy at your recovery site. These functions require a manual and periodic suspend operation at the local site. For instance, you can enter the freeze and run commands with external automated software.
  • Page 66 DS8000 storage systems, which in conjunction with the inherent volume addressing limitations support secure partitioning of Copy Services resources between user-defined partitions. The process of specifying the appropriate limitations is completed by an administrator using resource groups functions. DS8882F Introduction and Planning Guide...

  • Page 67: Comparison Of Copy Services Features

    For specific DS CLI commands used to implement resource groups, see the IBM DS8000 Command-Line Interface User's Guide. Comparison of Copy Services features The features of the Copy Services aid with planning for a disaster.

  • Page 68: I/O Priority Manager

    CKD medium priority 1 CKD medium priority 2 CKD medium priority 3 CKD medium priority 4 CKD low priority 1 CKD low priority 2 CKD low priority 3 CKD low priority 4 CKD low priority 5 DS8882F Introduction and Planning Guide...

  • Page 69: Securing Data

    Encryption also requires access to at least two external key servers. It is important to understand how to manage IBM encrypted storage and comply with IBM encryption requirements. Failure to follow these requirements might cause a permanent encryption deadlock, which might result in the permanent loss of all key-server-managed encrypted data at all of your installations.
  • Page 70 DS8882F Introduction and Planning Guide...

  • Page 71: Chapter 4. Planning The Physical Configuration

    If applicable, models also include the following indicators: v IBM / Openwave alliance v IBM / EPIC attachment v IBM systems, including System p and IBM Z v Lenovo System x and BladeCenter ® v IBM storage systems, including IBM System Storage ProtecTIER , IBM ®...

  • Page 72: Management Console Features

    It can proactively monitor the state of your storage system and notifying you and IBM when service is required. It also can be connected to your network for centralized management of your storage system by using the IBM DS command-line interface (DS CLI) or storage management software through the IBM DS Open API.

  • Page 73: Storage Features

    Storage features You must select the storage features that you want on your storage system. The storage features are separated into the following categories: v Drive-set features v Enclosure filler features Feature codes for drive sets Use these feature codes to order sets of encryption flash drives. The flash drives can be installed only in High Performance Flash Enclosures Gen2.

  • Page 74: Configuration Rules For Storage Features

    Specifically, effective capacities vary depending on the following configurations: RAID type and spares Drives in the DS8882F must be configured as RAID 5, RAID 6, or RAID 10 arrays before they can be used, and then spare drives are assigned. RAID 10 can offer better performance for selected applications, in particular, high random, write content applications in the open systems environment.
  • Page 75 For a CKD storage pool with 6,190 extents in which you expect to allocate all the space on 700 volumes, then you would have a pool overhead of 39 extents -> (700*2+6190/10)/53=38.09. RAID capacities for DS8882F Use the following information to calculate the physical and effective capacity for High Performance Flash Enclosures Gen2.

  • Page 76: I/O Adapter Features

    Use this feature code to identify the 2U I/O enclosure for your storage system. This I/O enclosure feature includes one 2U I/O enclosure. This feature supports two or four 16 Gbps 4-port host adapters (installed in pairs). DS8882F Introduction and Planning Guide...

  • Page 77: Feature Codes For Flash Raid Adapter Pairs

    Table 17. Feature codes for I/O enclosures Feature code Description 1305 2U I/O enclosure Feature codes for Flash RAID adapter pairs Use these feature codes to identify Flash RAID adapters for your storage system. Table 18. Feature codes for Flash RAID adapter pairs Feature code Feature name Description...

  • Page 78: Configuration Rules For Host Adapters

    How many host adapters will I install? You can install either two or four in fixed locations in pairs. v How can I balance the host adapters across the storage system to help ensure optimum performance? v What host adapter configurations help ensure high availability of my data? DS8882F Introduction and Planning Guide...

  • Page 79: Processor Complex Features

    Transparent cloud tiering connectivity can be enhanced with 10 Gbps adapter pairs to improve bandwidth for a native cloud storage tier in IBM Z environments. Table 22. Feature codes for Transparent cloud tiering adapter pairs...

  • Page 80: Processor Memory Features

    Feature codes for system memory Use these feature codes to order system memory for the DS8882F. Note: Memory is not the same as cache. The amount of cache is less than the amount of available memory. See the DS8000 Storage Management GUI.
  • Page 81 Table 25. Feature codes for power cords (continued) Feature code Power cord facility plug type Plug diagram 1023 Single-phase power cord, 250 V, 16 A SANS 164 1024 Single-phase power cord, 200 - 240 V, 16A CEI 23-16 1025 Single-phase power cord, 250 V, 20 A (L2) (L1) RS 3720DP...
  • Page 82 Single-phase power cord, 250 V, 16 A GB 2099.1, 1002 1034 Single-phase power cord, 250 V, 20 A NBR 14136 1035 Single-phase power cord, 250 V, 20 A CNS 10917-3 1036 Single-phase power cord, 250 V, 16 A SI 32 DS8882F Introduction and Planning Guide...
  • Page 83 Table 25. Feature codes for power cords (continued) Feature code Power cord facility plug type Plug diagram 1037 Single-phase power cord, 250 V, 16 A SEV 1011 The following list provides standard plug types and the countries in which they are commonly used.

  • Page 84: Input Voltage

    Description Requirements 1057 Battery backup module Two battery backup modules are included in the DS8882F model 983. Configuration rules for power features Ensure that you are familiar with the configuration rules and feature codes before you order power features. When you order power cord features, the following rules apply.

  • Page 85: Bsmi Certificate (Taiwan)

    BSMI certificate (Taiwan) The BSMI certificate for Taiwan option provides the required Bureau of Standards, Metrology, and Inspection (BSMI) ISO 9001 certification documents for storage system shipments to Taiwan. If the storage system that you order is shipped to Taiwan, you must order this option for each model that is shipped.
  • Page 86 DS8882F Introduction and Planning Guide...

  • Page 87: Chapter 5. Planning Use Of Licensed Functions

    Each licensed function indicator requires a corequisite 283x or 904x function authorization. Function authorization establishes the extent of IBM authorization for the licensed function before the feature activation code is provided by IBM. Each function authorization applies only to the specific storage system (by serial number) for which it was acquired.

  • Page 88: Ordering Licensed Functions

    You do not specify the license scope when you order function authorization feature numbers. Feature numbers establish only the extent of the IBM authorization (in terms of physical capacity), regardless of the storage type. However, if a licensed function has multiple license scope options, you must select a license scope when you initially retrieve the feature activation codes for your storage system.

  • Page 89: Rules For Ordering Licensed Functions

    2. Optional. Order the z-synergy Services license to support the physical capacity of all ranks that are formatted as CKD. 3. Optional. Order the Copy Services license to support the total usable capacity of all volumes that are involved in one or more copy services functions. Note: The Copy Services license is based on the usable capacity of volumes and not on physical capacity.

  • Page 90: Base Function License

    Order an inactive or disabled license and replace the active license activation key with the new inactive license activation key at the IBM Data storage feature activation (DSFA) website (www.ibm.com/storage/dsfa). v Go to the DSFA website and change the assigned value from the current number of terabytes (TB) to 0 TB.

  • Page 91: Database Protection

    The license capacity must cover both open systems data (fixed block data) and IBM Z data (count key data). All other licensed functions must have a capacity that is equal to or less than the Base Function license.

  • Page 92: I/O Priority Manager

    I/O data to assist the more critical I/O data in meeting its performance targets. Operating environment license The operating environment model and features establish the extent of IBM authorization for the use of the IBM DS operating environment. Thin provisioning Thin provisioning defines logical volume sizes that are larger than the physical capacity installed on the system.

  • Page 93: High Performance Ficon For Z Systems

    When a host system requests IBM HyperPAV processing and the processing is enabled, aliases on the logical subsystem are placed in an IBM HyperPAV alias access state on all logical paths with a given path group ID.

  • Page 94: Z/Os Distributed Data Backup

    Transparent cloud tiering on the storage system is fully integrated with DFSMShsm, which reduces CPU utilization on the host when you are migrating and recalling data in cloud storage. You can use the IBM Z host to manage transparent cloud tiering and attach metadata to cloud objects.

  • Page 95: Remote Mirror And Copy Functions

    You must purchase features for both the source (primary) and target (secondary) storage system. Remote mirror and copy functions The Copy Services license establishes the extent of IBM authorization for the use of the remote mirror and copy functions on your storage system. The following functions are included:...

  • Page 96: Z/Os Global Mirror

    The storage system supports z/OS Global Mirror that is a 3-site mirroring solution that uses IBM System Storage Metro Mirror and z/OS Global Mirror (XRC). The z/OS Metro/Global Mirror Incremental Resync capability is intended to enhance this solution by enabling resynchronization of data between sites by using only the changed data from the Metro Mirror target to the z/OS Global Mirror target after a HyperSwap operation.
  • Page 97 Table 33. Copy Services Manager on Hardware Management Console license feature codes Feature Code Feature code for licensed function indicator 8450 CSM on HMC - inactive 8451 CSM on HMC - 10 TB (up to 100 TB capacity) 8452 CSM on HMC - 15 TB (from 100.1 TB to 250 TB capacity) 8453 CSM on HMC - 25 TB (from 250.1 TB to 500 TB capacity) Chapter 5.
  • Page 98 DS8882F Introduction and Planning Guide...

  • Page 99: Chapter 6. Delivery And Installation Requirements

    Planning the physical installation site v Planning for power requirements v Planning for network and communication requirements For more information about the equipment and documents that IBM includes with storage system shipments, see Appendix C, “IBM equipment and documents,” on page 125.

  • Page 100: Shipment Weights And Dimensions

    When you are planning the rack for your storage system, you must answer the following questions that relate to rack specifications and available space: v Where are you installing the storage system? The DS8882F model 983 is a rack mountable system consisting of eight 2U modules. There are three different rack scenarios: –...
  • Page 101 - Minimum rail depth of 700 mm - Maximum rail depth of 780 mm v Does the rack in which you are installing the DS8882F model 983 have adequate space to accommodate the components? The rack must have 16U contiguous space to mount the eight 2U modules.

  • Page 102: Planning For Floor And Space Requirements

    Does the floor of the installation site meet floor-load requirements for the existing z14 Model ZR1, z14 Model LR1, or other standard 19-inch wide frame, plus the additional weight of the DS8882F model 983? v Can the installation site accommodate the amount of space that is required by the storage system, and does the space meet the following criteria? –...

  • Page 103: Planning For Power Requirements

    DS8882F model 983. Important: To eliminate a single point of failure, independent power feeds to each DS8882F power supply are required. At least one of the feeds should have power conditioning to ensure an acceptable level of power quality as specified in standards such as ANSI C84.1 and EN 50160.
  • Page 104 Find the power cord that is appropriate for your site. Ensure that your site meets the specified power connector requirements. For power cord feature codes, plug diagrams, and countries in which each plug type is commonly used, refer to “Feature codes for power cords” on page 70. DS8882F Introduction and Planning Guide...

  • Page 105: Planning For Environmental Requirements

    Note: The power consumption for the operating disk enclosure is typically 275 watts - 300 watts. The power consumption for the operating High Performance Flash Enclosure Gen2 is 500 watts. Table 37. Power consumption and environmental information for the DS8882F model 983 Measurement Unit of measure...
  • Page 106 Powered off: Plan for the required temperature and humidity ranges when the storage system is off. Table 42 on page 97 provides the temperatures and humidity requirements for your storage system when the power is off. DS8882F Introduction and Planning Guide...
  • Page 107 Table 42. Temperatures and humidity with the power off Measurement Value Temperature 10 - 43°C (50 - 110°F) Relative humidity 8 - 80% Wet bulb temperature (maximum) 27°C (80°F) In storage: Plan for the required temperature and humidity ranges when the storage system is in storage.
  • Page 108 Attention: In the absence of specific limits that are presented in this document, you must implement practices that maintain particulate or gas levels that are consistent with the protection of human health and safety. If IBM determines that the levels of particulates or gases in your environment damaged the storage system, the warranty is void.

  • Page 109: Planning For Safety

    You are responsible for providing appropriate service equipment for your storage system. The DS8882F model 983 requires two service representatives to install at your site because of the weight of the components. You must provide the installation safety equipment based on the position of the components in your frame.

  • Page 110: Planning For Network And Communications Requirements

    SSL (Secure Socket Layer) for management-console-to-IBM communication. The DS8882F uses remote code load (RCL) as the default delivery method for code upgrades. RCL provides the ability to securely download microcode and perform concurrent code load with support already engaged to quickly resolve any issues.
  • Page 111 Alternatively, AOS is installed on a PC that you provide and maintain. Contact your technical support representative for more details. In addition to AOS, IBM also offers remote support center (RSC). It is a simple SSH proxy based remote service solution that can be used if AOS does not meet your security guidelines.
  • Page 112 Have your technical service representative set the Fibre Channel access modes to the correct setting. See the IBM DS8000 Host Systems Attachment Guide for more information about Fibre Channel access modes. v Storage systems can connect to IBM SAN Volume Controller host systems. See the IBM DS8000 Host Systems Attachment Guide for more information.

  • Page 113: Chapter 7. Planning Your Storage Complex Setup

    DNS settings, if you plan to use a domain name server to resolve network names v Routings, if you want to specify a default gateway for routing Note: IBM attaches your LAN after the storage complex is installed and in operation. © Copyright IBM Corp. 2018...

  • Page 114: Remote Support Settings

    When you enable outbound (call home) remote support, your management console sends an electronic call home record to IBM support when there is a problem within the storage complex. If inbound remote service is also enabled, an technical service representative can securely sign on to the management console from a remote location in response to the service call.

  • Page 115: Notification Settings

    Notification settings Use the notification worksheets to specify the types of notifications that you want to receive and that you want others to receive. Note: The technical service representative sets up the notification process. Notifications contain information about your storage complex, such as serviceable events.
  • Page 116 Use this control switch setting only when you attach more than one DS8000 storage system to an AS/400 or IBM i host and the last three digits of the worldwide node name (WWNN) are the same on any of the storage systems.

  • Page 117: Chapter 8. Planning Data Migration

    How much data is to be migrated? Operating system v Is it a IBM Z or UNIX system? Consider using IBM Remote Mirror and Copy functions such as Metro Mirror, Global Mirror, or some variation of a logical volume manager.

  • Page 118: Selecting A Data Migration Method

    Table 48. Comparison of data migration options Type Example Advantages Disadvantages OS / LVM Logical Volume Little or no Potential application Mirroring Managers, (LVM) Veritas application service delays Volume Manager disruption (VxVM), Windows Disk Administrator DS8882F Introduction and Planning Guide...
  • Page 119 Backup /Restore (Tivoli application service some have high packages Legato, Veritas) interruption, application service standard utilities interruption Third-party IBM SAN Volume Multiple Cost of migration migration Controller, DataCore heterogeneous appliance / service, appliances SANsymphony storage venders application supported; migration...
  • Page 120 DS8882F Introduction and Planning Guide...

  • Page 121: Chapter 9. Planning For Security

    Manager key servers. To enable disk encryption, the storage system must be configured to communicate with two or more IBM Security Key Lifecycle Manager key servers. The physical connection between the Hardware Management Console (HMC) and the key server is through an Internet Protocol network.

  • Page 122: Planning For Key Lifecycle Managers

    TLS 1.2 protocol with this key server, use IBM Security Key Lifecycle Manager V2.5 or later. v If your encryption key server runs on an IBM Z host LPAR with z/OS, use IBM Security Key Lifecycle Manager for z/OS V1.1.0.3 or later.

  • Page 123: Planning For Full-Disk Encryption Activation

    Full disk encryption offerings must be activated before use, as part of the system installation and configuration. This installation and activation review is performed by the IBM Systems Lab Services team. To submit a request or inquiry, see the Storage Services website(www-03.ibm.com/systems/services/labservices/ platforms/labservices_storage.html), and click Contact us.

  • Page 124: Managing Secure Service Accounts

    IBM recommends Assist On-site (AOS) as a secure remote service method. AOS provides a mechanism to establish a secure network connection to IBM over the internet with SSL encryption. It can be configured so that the service administrator must approve remote service access and can monitor remote service activity.
  • Page 125 TLS 1.2 and are NIST SP 800-131A compliant. Otherwise, network connection to these systems will be prohibited. For information about configuring your environment for NIST SP 800-131A conformance, see security best practices in the IBM DS8000 series online product documentation ( http://www.ibm.com/support/knowledgecenter/ST5GLJ_8.1.0/ com.ibm.storage.ssic.help.doc/f2c_securitybp.html).
  • Page 126 DS8882F Introduction and Planning Guide...

  • Page 127: Chapter 10. License Activation And Management

    You can complete these activities and then activate the function. Activation refers to the retrieval and installation of the feature activation code into the storage system. The feature activation code is obtained by using the IBM Data storage feature activation (DSFA) website (www.ibm.com/storage/dsfa) and is based on the license scope and license value.

  • Page 128: Activation Of Licensed Functions

    If the capacity is exceeded, IBM is notified that the usage exceeds the allowed capacity on any given licensed function. You are notified by IBM and required to extend enablement of your licensed function and install a new licensed feature key.

  • Page 129: Scenarios For Managing Licensing

    If you received your license keys from a technical service representative, enter them in the Activate Licensed Functions window. v If you need to obtain your license keys from the IBM Data storage feature activation (DSFA) website, complete the following steps.

  • Page 130: Managing A Licensed Feature

    This additional license capacity increases your Copy Services authorization level. 2. After you order the features, you receive confirmation from IBM that these new features were processed. 3. Connect to the IBM-supported Disk Storage Feature Activation (DSFA) website at IBM Data storage feature activation (DSFA) website (www.ibm.com/storage/...

  • Page 131: Appendix A. Accessibility Features

    Accessibility features These are the major accessibility features associated with the IBM DS8000 series online product documentation. v You can use screen-reader software and a digital speech synthesizer to hear what is displayed on the screen.
  • Page 132 DS8882F Introduction and Planning Guide...

  • Page 133: Appendix B. Warranty Information

    Appendix B. Warranty information The statement of limited warranty specifies the warranty period, type of warranty service, and service level. See IBM Warranty Information for information on machine type models 283x or 533x. © Copyright IBM Corp. 2018...
  • Page 134 DS8882F Introduction and Planning Guide...

  • Page 135: Appendix C. Ibm Equipment And Documents

    The following installation components are included with your shipment: Storage system Your shipment includes the eight modules that make up the DS8882F system. These modules are installed in a conforming 19-inch rack, in a 16U contiguous space, in the specified sequence (rack layout).

  • Page 136: Customer Components

    If released, these ECs are included in your shipment for the technical service representative to install. Customer components IBM provides media and documents that are intended for you to keep. v License and warranty documents v READ ME FIRST for IBM products...

  • Page 137: Appendix D. Customization Worksheets

    For more details, refer to Chapter 7, “Planning your storage complex setup,” on page 103. After you fill out the worksheets, give them to the technical service representatives who complete the installation. © Copyright IBM Corp. 2018...
  • Page 138 DS8882F Introduction and Planning Guide...

  • Page 139: Appendix E. Compliance Standards

    AP2 indicates the 2U Management Enclosure chassis only for regulatory component identity within the higher level integrated solution system being offered under the identity of DS8882F. As no rack or common cabinet enclosure is offered with this storage system of components, the MTM underneath this is a variable Print On Demand (Pod) based upon any given ordered integrated solution system, indicating it's service identity).
  • Page 140 DS8882F Introduction and Planning Guide...

  • Page 141: Notices

    Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead.

  • Page 142: Trademarks

    The materials at those websites are not part of the materials for this IBM product and use of those websites is at your own risk. IBM may use or distribute any of the information you provide in any way it believes appropriate without incurring any obligation to you.

  • Page 143: Homologation Statement

    Review the safety notices and safety information labels before using this product. IBM Systems safety notices and information This publication contains the safety notices for the IBM Systems products in English and other languages. It also contains the safety information labels found on the hardware in English and other languages.
  • Page 144 Caution notices Use the reference numbers in parentheses at the end of each notice, such as (C001), to find the matching translated notice in IBM Systems Safety Notices. CAUTION : Energy hazard present. Shorting might result in system outage and possible physical injury.
  • Page 145 CAUTION: The system contains circuit cards, assemblies, or both that contain lead solder. To avoid the release of lead (Pb) into the environment, do not burn. Discard the circuit card as instructed by local regulations. (C014) CAUTION: This product is equipped with a 3-wire (two conductors and ground) power cable and plug.
  • Page 146 It is the responsibility of the customer to ensure that the outlet is correctly wired and grounded to prevent an electrical shock. (R001 part 1 of 2) DS8882F Introduction and Planning Guide...
  • Page 147 CAUTION: • Do not install a unit in a rack where the internal rack ambient temperatures will exceed the manufacturer’s recommended ambient temperature for all your rack-mounted devices. • Do not install a unit in a rack where the air flow is compromised. Ensure that air flow is not blocked or reduced on any side, front or back of a unit used for air flow through the unit.
  • Page 148 DANGER: Racks with a total weight of > 227 kg (500 lb.), Use Only Professional Movers! (R003) DANGER: Do not transport the rack via fork truck unless it is properly packaged, secured on top of the supplied pallet. (R004) DS8882F Introduction and Planning Guide...
  • Page 149 Danger notices Use the reference numbers in parentheses at the end of each notice, such as (D001), to find the matching translated notice in IBM Systems Safety Notices. DANGER: To prevent a possible shock from touching two surfaces with different protective ground (earth), use one hand, when possible, to connect or disconnect signal cables.
  • Page 150 If IBM supplied a power cord(s) , connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product. • Do not open or service any power supply assembly.
  • Page 151 Labels Use the reference numbers in parentheses at the end of each notice, such as (L001), to find the matching translated notice in IBM Systems Safety Notices. DANGER: Hazardous voltage, current, or energy levels are present inside any component that has this label attached.

  • Page 152: Vendor-Specific Uninterruptible Power Supply Safety Statements

    CAUTION: Risk of electrical shock. This battery cabinet receives power from more than one source. The lead acid battery may cause chemical hazard. This battery presents a risk of electric shock and energy hazard. DS8882F Introduction and Planning Guide...

  • Page 153: Environmental Notices

    (applicable to UPS and a remote battery supply not having a grounded supply circuit). Environmental notices This information contains all the required environmental notices for IBM Systems products in English and other languages. The IBM Systems Environmental Notices (ftp://public.dhe.ibm.com/systems/ support/warranty/envnotices/environmental_notices_and_user_guide.pdf)
