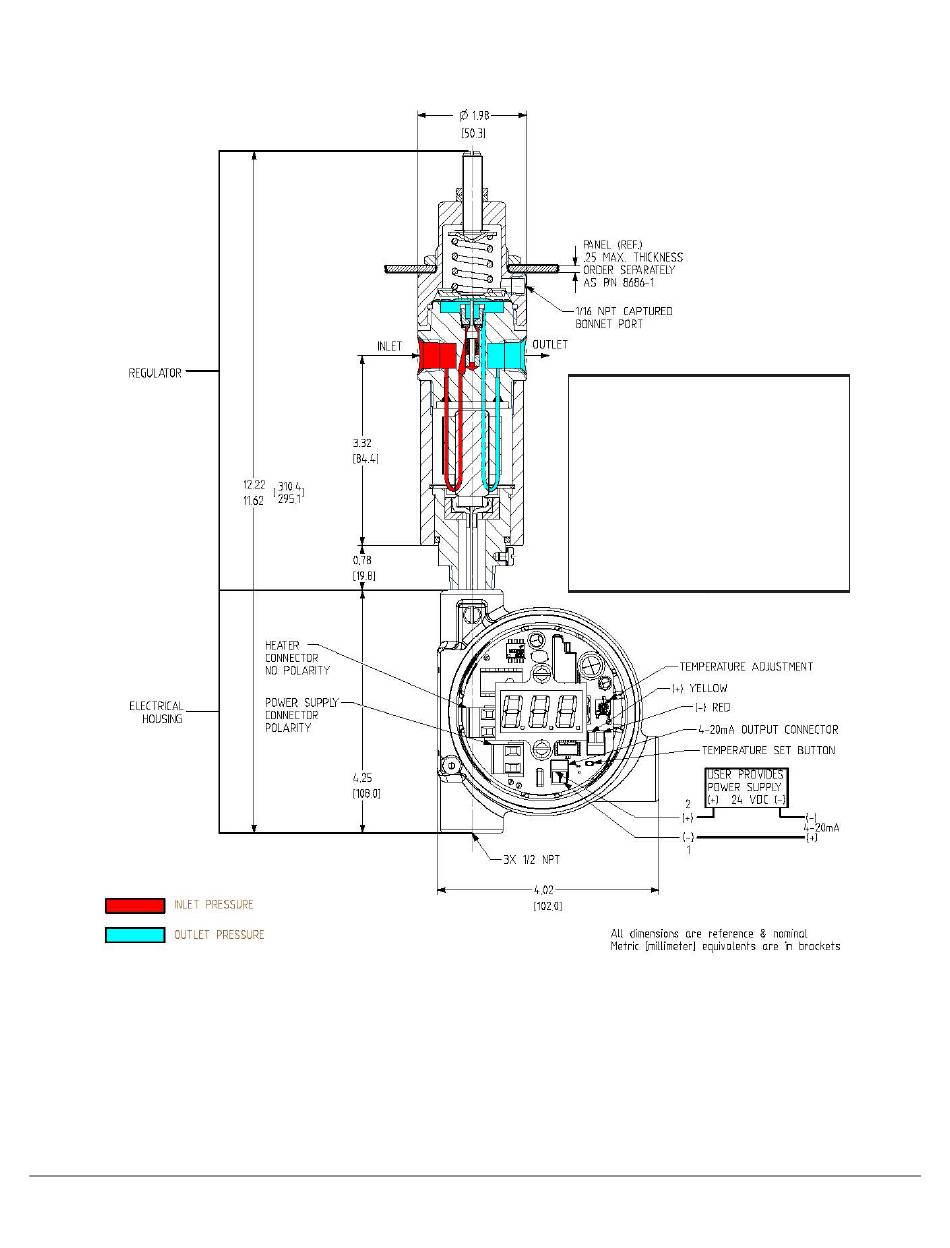

Figure 2
6
Separated assembly is supplied with
electrical housing shipped separately from
the regulator assembly. Extra wire is
provided. Connectors J4 and J2 from the
regulator assembly must be attached to
the corresponding control board terminals.
For integral applications the electronics
enclosure must engage the regulator
assembly by at least 5 full threads made
wrench tight.
(J2)
(J1)
