Fuel Indicating System Wiring Schematic - Piper APACHE PA-23-235 Service Manual

LEFT OUTBOARD
FUEL SENDER
16-17 OHMS
OPTIONAL WING TIP FUEL TANKS
SERIAL NOS. 27-7654001 AND UPO
PIPER AZTEC SERVICE MANUAL
2515
MAIN BUS
5 AMP
1. ON PA-23-250 AND PA-23-250 (SIX
PLACE) SERIAL NOS. 27-2505 TO
27-3836; 27-3838 TO 27-3943 INCL.
ONLY.
2. ON PA-E23 AND PA-23-250 (SIX
PLACE) ONLY.
3. RESISTANCE VALUE FOR FUEL TANK
SENDER UNITS ON AIRCRAFT TOTAL
30.0 - 31.0 OHMS. (REFER TO SECTION
XI, ELECTRICAL SCHEMATIC BY AP-
PROPRIATE AIRCRAFT SERIAL NOS.).
RIGHT WING
CONNECTOR
SEE NOTE 2
GAUGES
GAUGES
LEFT OUTBOARODLEFT
INBOARD
RIGHT INBOARD RIGHT OUTBOARD
FUELSENDER
FUELSENDER FUEL SENDER
FUELSENDER
SEE NOTE 3
SEE NOTE 3
FUEL TANK SWITCH
FUEL TANK SWITCH
RIGHT OUTBOARD
FUEL SENDER
15-17 OHMS
I
.
,
RIGHT TIP TANK
FUEL SENDER
13-15 OHMS 13-16 OHMS

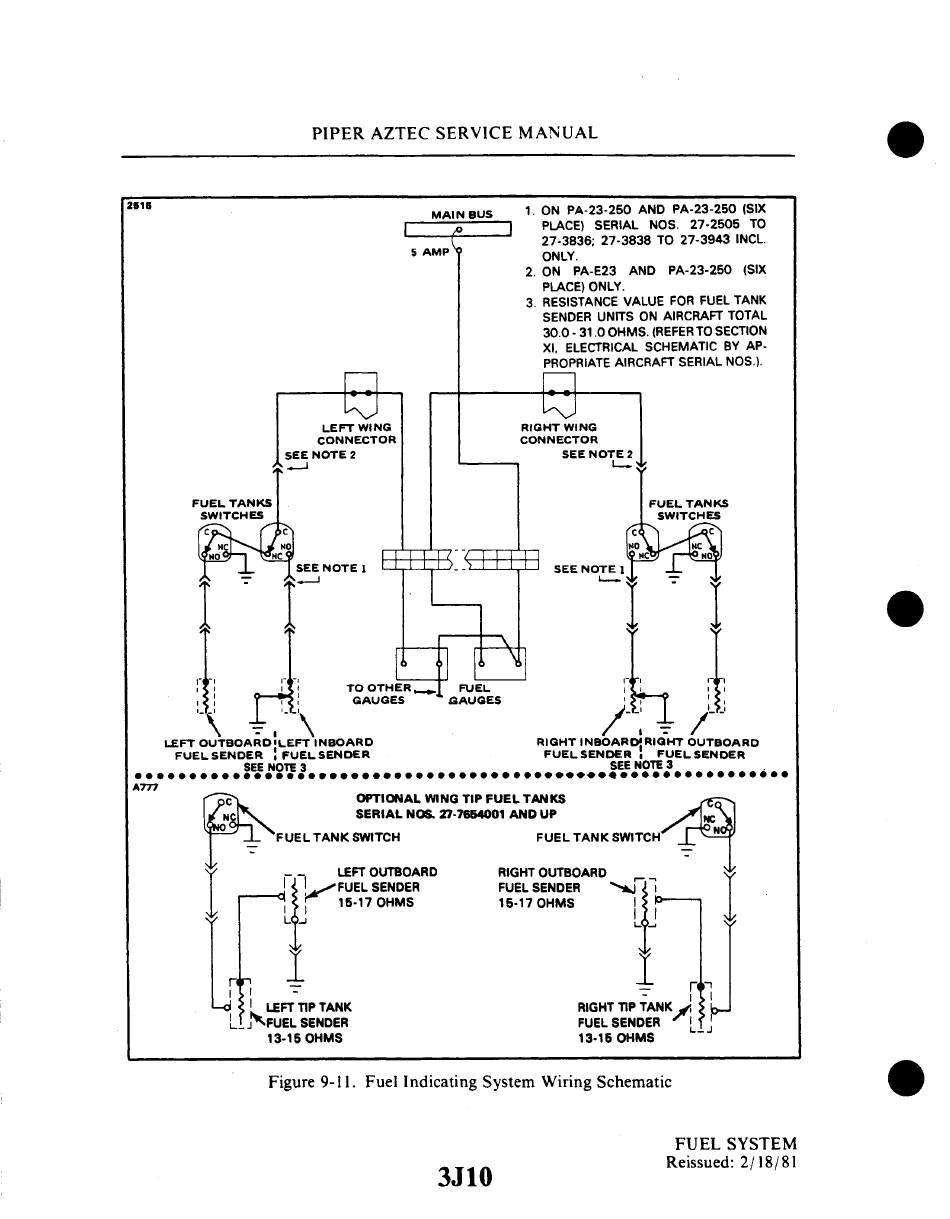

Figure 9-11. Fuel Indicating System Wiring Schematic
FUEL SYSTEM
Reissued: 2/18/81
3J10
