PIPER AZTEC SERVICE MANUAL
2533
1.
ON/OFF CONTROL
2.
OXYGEN OUTLETS
3.
RECHARGE VALVE
4.
FORWARD BAGGAGE
COMPARTMENT FLOORBOARD
5.
REGULATOR
6.
PRESSURE GAUGE
7.
CYLINDER
8.
MOUNTING STRAPS

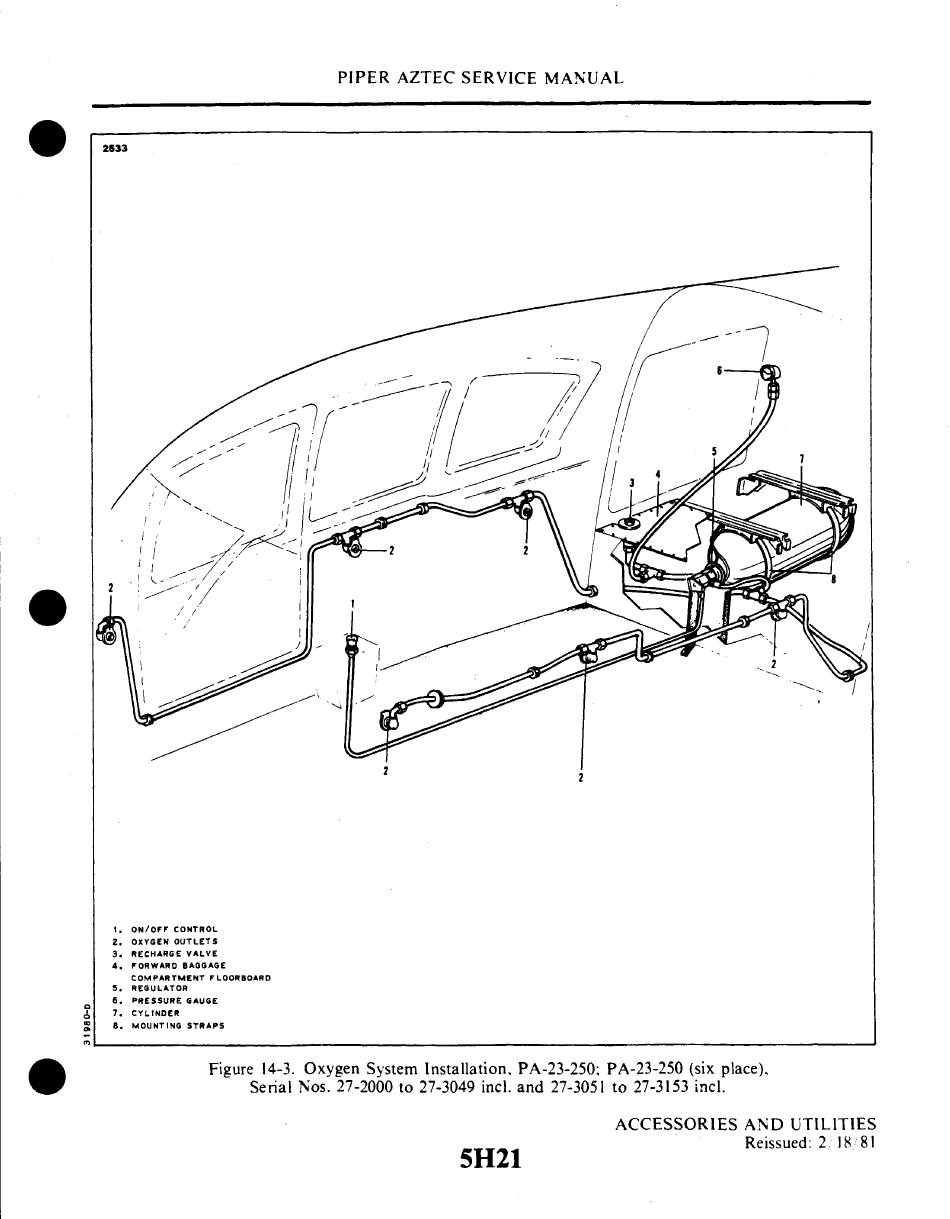

Figure 14-3. Oxygen System Installation. PA-23-250; PA-23-250 (six place),
Serial Nos. 27-2000 to 27-3049 incl. and 27-3051 to 27-3153 incl.
ACCESSORIES AND UTILITIES
Reissued: 2/ 18 81
5H21
