Figure
7-29
Index
8
I
9
10
7
10
3
6
PIPER AZTEC SERVICE MANUAL

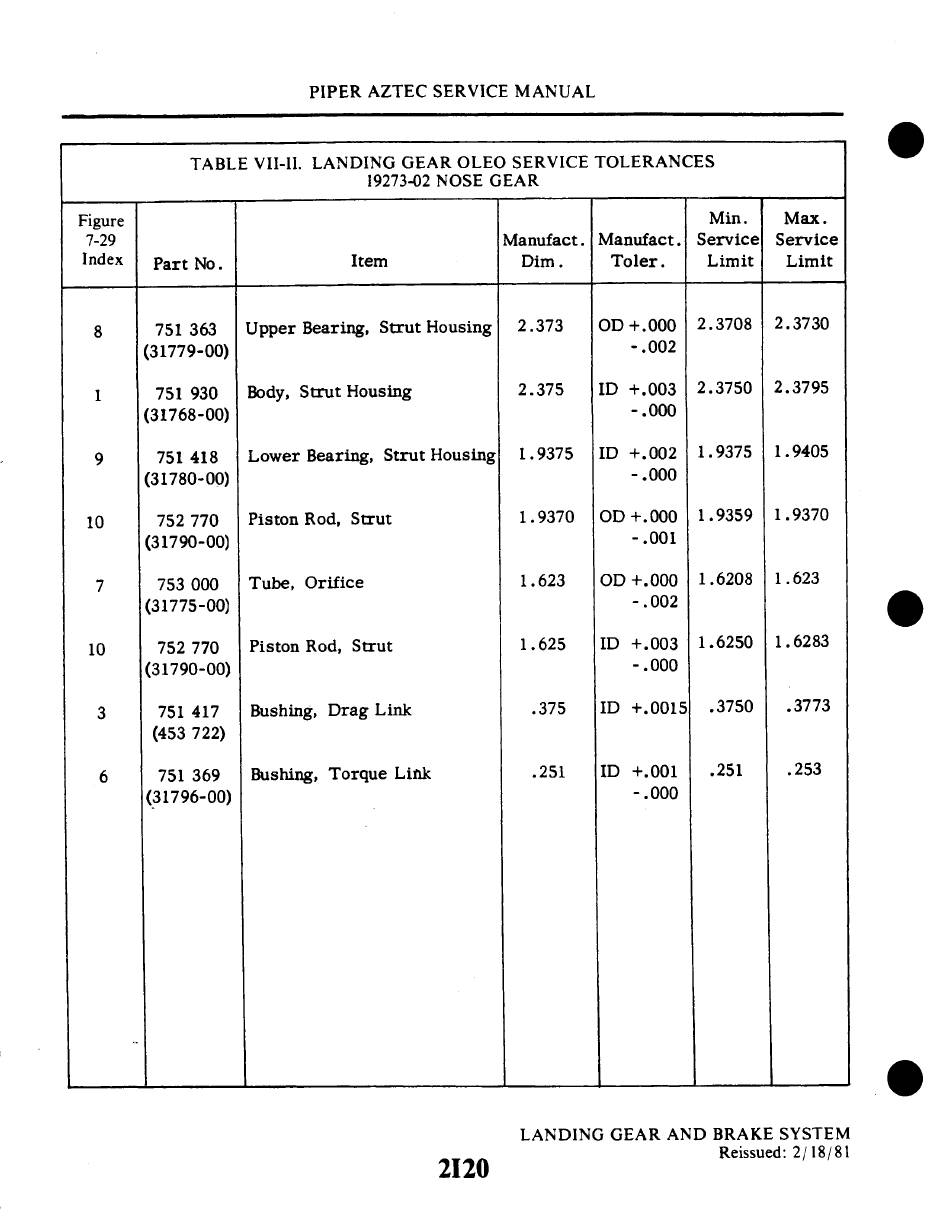

TABLE VII-II. LANDING GEAR OLEO SERVICE TOLERANCES
19273-02 NOSE GEAR
Part No.
751 363
(31779-00)
751 930
(31768-00)
751 418
(31780-00)
752 770
(31790-00)
753 000
(31775-00)
752 770
(31790-00)
751 417
(453 722)
751 369
(31796-00)
Item
Upper Bearing, Strut Housing
Body, Strut Housing
Lower Bearing, Strut Housing
Piston Rod, Strut
Tube, Orifice
Piston Rod, Strut
Bushing, Drag Link
Bushing, Torque Link
Manufact.
Dim.
2.373
2.375
1.9375
1.9370
1.623
1.625
.375
.251
Manufact.
Toler.
OD +.000
-. 002
ID +.003
-. 000
ID +.002
-. 000
OD +.000
-. 001
OD +.000
-. 002
ID +.003
-. 000
ID +.0015
ID +.001
-. 000
Min.
Service
Limit
2.3708
2.3750
1.9375
1.9359
1.6208
1.6250
.3750
.251
Max.
Service
Limit
2.3730
2.3795
1.9405
1.9370
1.623
1.6283
.3773
.253
LANDING GEAR AND BRAKE SYSTEM
Reissued: 2/18/81
2120
