Orbit Merret OM 402UNI Manual page 34

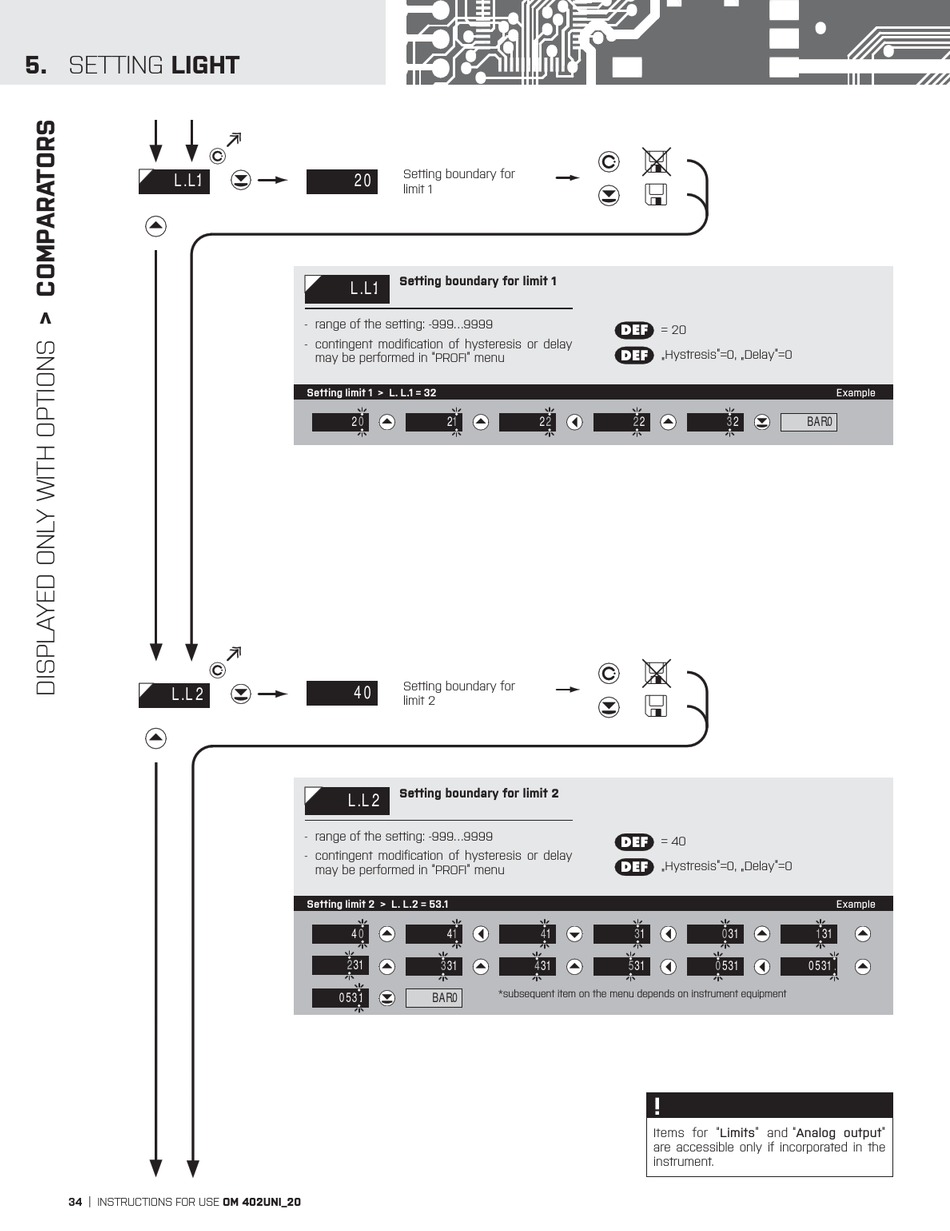

SETTING LIGHT
5.
L. L. 1
L. L. 2
34 | INSTRUCTIONS FOR USE OM 402UNI_20
20 Setting boundary for
limit 1
L. L. 1 Setting boundary for limit 1
- range of the setting: -999...9999
- contingent modification of hysteresis or delay
may be performed in "PROFI" menu
Setting limit 1 > L. L.1 = 32
20 21
40 Setting boundary for
limit 2
L. L. 2 Setting boundary for limit 2
- range of the setting: -999...9999
- contingent modification of hysteresis or delay
may be performed in "PROFI" menu
Setting limit 2 > L. L.2 = 53.1
40 41
231
331
053. 1 BAR. 0


DEF = 20
DEF
„Hystresis"=0, „Delay"=0
22 22


DEF = 40
DEF
„Hystresis"=0, „Delay"=0
41 31
431 531
*subsequent item on the menu depends on instrument equipment
!
Items for "Limits" and "Analog output"
are accessible only if incorporated in the
instrument.
Example
32 BAR. 0
Example
031 131
0531 0531.
