- Page 1 Reference Guide Section A – General Description Section B – How to use the VT36 VT36 GB VHA1-00-02...
-

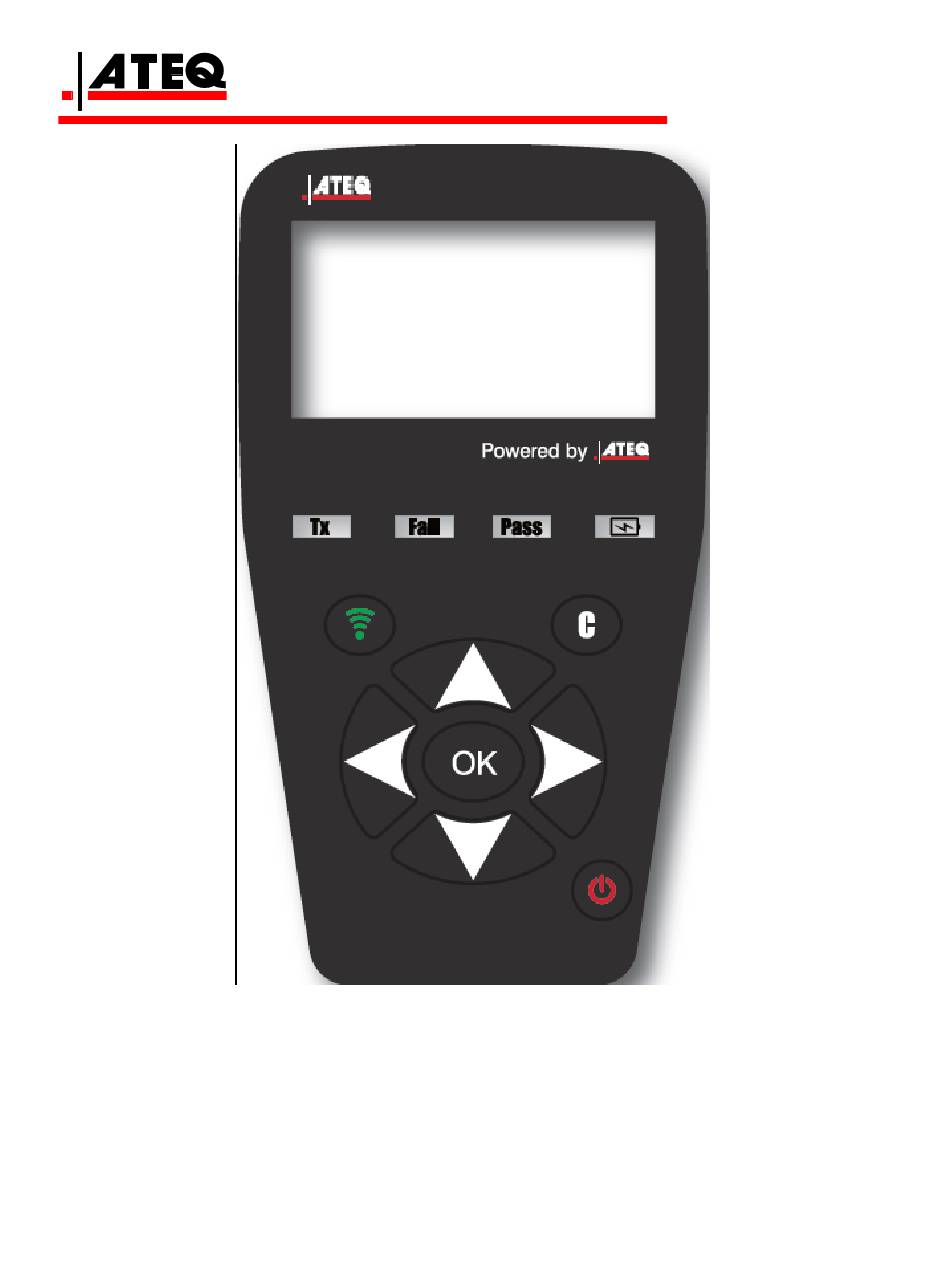

Page 2: Front Face
The principle of this instrument is to awaken and then retrieve data from smart valves mounted on vehicle wheels, in order to check their identifiers. The instrument interacts with the smart valves to assist technicians service Tire Pressure Monitor Systems (TPMS). VT36 is capable to trigger all know sensors. - Page 3 Battery VT36 Operates with rechargeable battery Type Li-On. USB connector / Charging the battery The USB connection allows software updates to be installed onto the tool using the WEB VT program. TPM sensor results can also be printed using this program.
- Page 4 SECTION B – HOW TO USE THE VT36 B.0 SWITCH ON THE VT36 Please, wait until the welcome screen shows “ MAIN MENU “. VT36 GB VHA1-00-02...
- Page 5 B.1 TESTING A TPM SENSOR Confirm the choice : VEHICLE SELECTION Select the brand then confirm Select 4 or 5 wheels then confirm VT36 GB VHA1-00-02...
- Page 6 Hold the VT36 directly on the rubber tire, over the valve stem. Some sensors are banded to the wheel and can be located 180⁰ opposite the valve stem. (Refer to owner’s manual) Start the test cycle During the trigger processing,...
- Page 7 Low Bat Pass Fail Follow the same procedure for the rest of the three or four wheels by pressing the key and then key. (Refer to vehicle owner’s manual or other reference guides for TPM reset procedure.) VT36 GB VHA1-00-02...
- Page 8 The picture below is an example of a valve data communication result: Vehicle make Valve ID Pressure Temperature Battery Status **Note: The VT36 will identify the sensor information that is transmitted. Not all sensors transmit every piece of information shown. *** VT36 GB VHA1-00-02...
- Page 9 B.2 TESTING A KEY (RKE TEST) Confirm the choice : KEY FOB Select the brand then confirm Select radio frequencies then confirm VT36 GB VHA1-00-02...
- Page 10 Start the test cycle Check the key Low Bat Pass Fail VT36 GB VHA1-00-02...
- Page 11 The format (AUTO is recommended) The buzzer ON or OFF The contrast AUTO OFF for saving battery. (1 to 2 mn is recommended) Confirm the choice : SETTING Select the item then confirm (OK) Select the item then confirm (OK) VT36 GB VHA1-00-02...
- Page 12 B.4 LANGUAGE LANGUAGE allows to select different language : Confirm the choice : LANGUAGE SELECT the language then confirm (OK). SELECT the language then confirm (OK). Web Site TPMS : www.tpms-tool.com VT36 GB VHA1-00-02...
