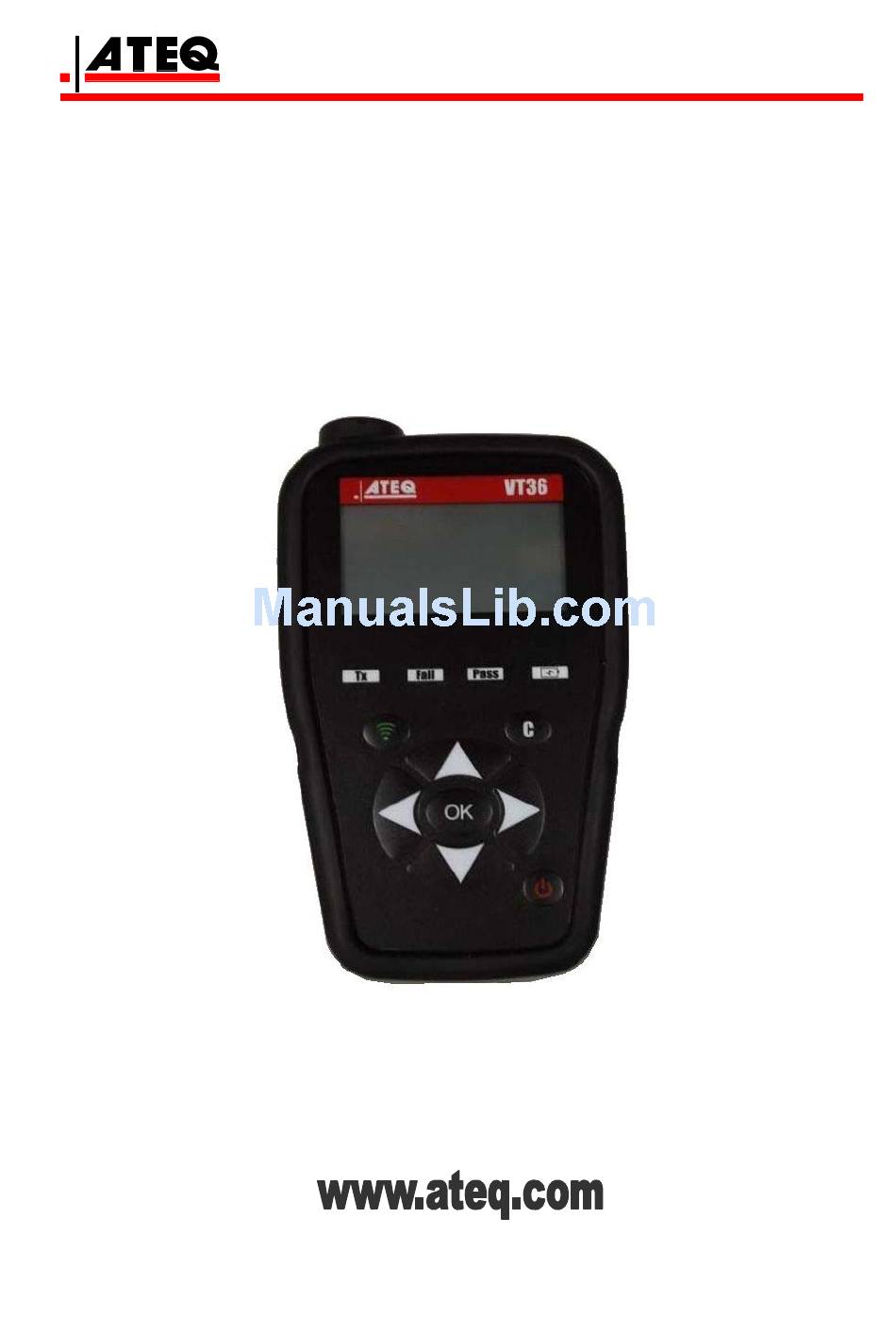

Page 1: User Guide
USER GUIDE ATEQ VT36 Version HA1-09 Reference: UM-36400C-U... - Page 2 REVISION OF THE ATEQ VT36 MANUAL Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Edition/ Date Reference Chapters updated Revision (week/year) First edition...
- Page 3 4. LIMITED HARDWARE WARRANTY ....................29 5. SAFETY BATTERY AND CHARGE INFORMATION ............... 29 6. FCC STATEMENTS ........................... 30 7. CE STATEMENTS ..........................31 8. RECYCLING ............................31 Index UM-36400C-U User manual ATEQ VT36 Page 1/32...
-
Page 4: User Guide
Approx. 2 lbs. Weight: Operating: -4° F to 131° F (-20° C to +55° C). Temperature: Storage: -40°F to 140° F (-40° C to +60° C). Up to 6560 ft (2000 m). Operating Altitude: UM-36400C-U User manual ATEQ VT36 Page 2/32... -
Page 5: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS Do not discard. Retain for future reference. This device complies with: - Part 15 of the FCC Rules (FCC ID: 2AFOA-VT36) - CE / CEM standards - ROHS standards Operation is subject to the following two conditions:... -
Page 6: Caution
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the tool away from heat generating sources. Do not operate the tool with the battery cover removed. UM-36400C-U User manual ATEQ VT36 Page 4/32... -
Page 7: Function Keys

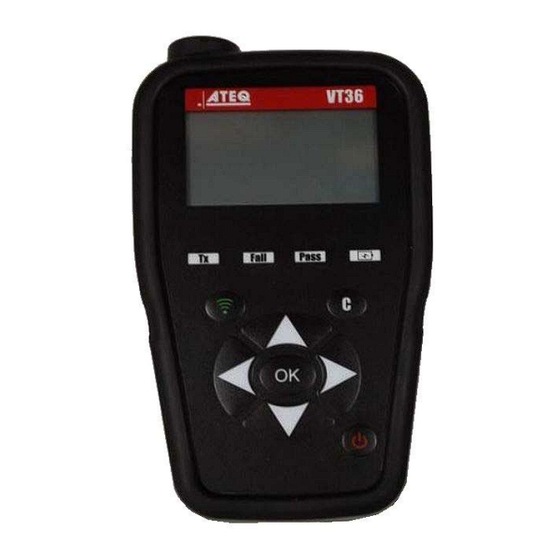

Next, continue or confirm. Cancel, previous step. Navigate to select "up”. Navigate to select “down”. Navigate to select “left”. Navigate to select “right”. Battery charge Antenna indicator and low bat light Result lights Keyboard Trigger light UM-36400C-U User manual ATEQ VT36 Page 5/32... -
Page 8: Power On
At first starting or after a factory reset, the work COREA zone is asked as Fig. 3. Fig. 3 MAIN MENU Then reverts to the MAIN MENU as Fig. 4. CHECK SENSOR Fig. 4 UM-36400C-U User manual ATEQ VT36 Page 6/32... -
Page 9: Operating Instructions
FR 2 We recommend you trigger each wheel sensor, one final time, to make sure they are working correctly prior to releasing the vehicle to the customer. 4 End RL RR 3 Fig. 5 UM-36400C-U User manual ATEQ VT36 Page 7/32... -
Page 10: Vt36 Use
TOYOTA SUBARU ProAce Combi SUZUKI > RAV4 III TESLA RAV4 IV > TOYOTA Solara II 1.2. S ELECT ODEL TOYOTA RAV4 III ProAce Combi > 2005−2013 > RAV4 III RAV4 IV Solara II UM-36400C-U User manual ATEQ VT36 Page 8/32... - Page 11 : START The tool is ready to trigger the sensors. 1.5. T EST SENSOR RAV4 III RAV4 III ▲ SELECT TIRE TRIGGER PROCESSING ◄ ► ▼ : START : START For tire selection. UM-36400C-U User manual ATEQ VT36 Page 9/32...
- Page 12 NO SENSOR DETECTED 2: FAIL 2/3: FAIL. : START RAV4 III DUPLICATE SENSOR 3: FAIL : START RAV4 III REDUCE TIRE PRESSURE 4: FAIL : START RAV4 III COM. ERROR 5: FAIL : START UM-36400C-U User manual ATEQ VT36 Page 10/32...
-
Page 13: Program Blank Sensor
VEHICLE SELECTION ALCAR by Schrader SUBARU ALLIGATOR Sens.it SUZUKI > EU−Pro TESLA HUF Intellisens > TOYOTA 2.1.1. Vehicle selection mode PROGRAM SENSOR VEHICLE SELECTION SENSOR SELECTION SUBARU > VEHICLE SELECTION SUZUKI TESLA > TOYOTA UM-36400C-U User manual ATEQ VT36 Page 11/32... - Page 14 TOYOTA Use EU-Pro1 or EU-Pro PROGRAM SENSOR Hybrid ALCAR by Schrader ALLIGATOR Sens.it (C) STOP (OK) NEXT > EU−Pro HUF Intellisens The device displays blank sensor's reference of the selected dealer. to continue. UM-36400C-U User manual ATEQ VT36 Page 12/32...
- Page 15 2.6. "C " OPY ORIGINAL SENSOR SECTION EZ−sensor RAV4 III > COPY ID CREATE SENSOR COPY ID : START RAV4 III RAV4 III TRIGGER PROCESSING COPY ID : START : START UM-36400C-U User manual ATEQ VT36 Page 13/32...
- Page 16 RAV4 III 3: FAIL: reduce the tire pressure and REDUCE TIRE PRESSURE 3: FAIL press to test again. : START RAV4 III COM. ERROR 4: FAIL 4: FAIL: press to test again. : START UM-36400C-U User manual ATEQ VT36 Page 14/32...
- Page 17 UPLOADING… 315 MHz : START : START RAV4 III V E R I F Y I N G 315 MHz : START RAV4 III F383834 25°C 0.10 bar BAT:OK 315 MHz : START UM-36400C-U User manual ATEQ VT36 Page 15/32...
- Page 18 Note: in this operation the ID is a RAV4 III random number. V E R I F Y I N G 315 MHz : START RAV4 III EE995DD 25°C 0.10 bar BAT:OK 315 MHz : START UM-36400C-U User manual ATEQ VT36 Page 16/32...
-
Page 19: Part # Lookup
SUBARU ProAce Combi SUZUKI > RAV4 III TESLA RAV4 IV > TOYOTA Solara II 3.2. S ELECT VEHICLE MODEL TOYOTA RAV4 III ProAce Combi > 2005−2013 > RAV4 III RAV4 IV Solara II UM-36400C-U User manual ATEQ VT36 Page 17/32... - Page 20 OE SERVICE VALVE to scroll dealers. 3.1. S ELECT DEALER PART# LOOKUP 42607-20010 > OE OE Sensor ref TOYOTA OE SERVICE KIT RAV4 III OE SERVICE VALVE 2005-2013 to scroll dealer's part number. UM-36400C-U User manual ATEQ VT36 Page 18/32...
-
Page 21: Settings
FORMAT: change the format of sensor ID display. BUZZER: turn buzzer to ON or OFF (YES or NO). CONTRAST: adjust LCD backlight brightness level (0% to 100%). AUTO OFF: time to turn off the device automatically after not being operated. UM-36400C-U User manual ATEQ VT36 Page 19/32... - Page 22 A first starting or after a factory reset, the zone option appears on the screen. For apply a factory reset to the device, please use the WebVT software. Connect the VT36 device to the PC, when recognized, enter into the "Settings" menu and then click on the "Factory reset" button.
- Page 23 Scroll up and down to select function or settings. Up or down to select the desired change. Press to confirm the change Enter settings parameter. and return to settings. Press return settings without change. UM-36400C-U User manual ATEQ VT36 Page 21/32...
- Page 24 Scroll up and down to select function or settings. Up or down to select the desired change. Enter settings parameter. Press to confirm the change and return to settings. Press return settings without change. UM-36400C-U User manual ATEQ VT36 Page 22/32...
-
Page 25: About
VT36 TPMS TOOL user guide ABOUT 1. ENTER IN THE ABOUT MENU This is to display the current version and information about the device. MAIN MENU ABOUT S/N: K360−10853 Version: HA1−09−06 Database: MYE1−55 Receiver 1:OK 2:−− LANGUAGE UM-36400C-U User manual ATEQ VT36 Page 23/32... -
Page 26: Language
French / Hebrew / Italian / Magyar / Scroll up and down to select language. Norsk / Polski / Portugues / Romana / Russian / Slovencina / Slovenscina / Spanish / Suomi / Svenska / Turkish. Validate by enter key. UM-36400C-U User manual ATEQ VT36 Page 24/32... -
Page 27: Recent Sensor Data
The data is automatically replaced if a new vehicle is triggered. The data remains in the memory even after the device has been turned off. MAIN MENU RAV4 III F383834 25°C 0.10 bar BAT:OK 315 MHz : START RECENT SENSOR DATA UM-36400C-U User manual ATEQ VT36 Page 25/32... -
Page 28: Miscellaneous
"CHARGE" turns to green light. Battery replacement The tool must be returned to the factory for battery replacement. Opening the tool or tampering with the seal placed on the tool, if broken will void the warranty UM-36400C-U User manual ATEQ VT36 Page 26/32... -
Page 29: Troubleshooting
Please follow the steps below: IMPORTANT: Temporarily turn off all of the anti-virus and spam blocking software on your computer. This is necessary to ensure a successful upgrade. USB connector for Internet update. Fig. 7 UM-36400C-U User manual ATEQ VT36 Page 27/32... - Page 30 Warning! Do not disconnect the TPMS TOOL from the PC or turn off your computer during the update process. This may result in serious damage to the tool. www.tpms-tool.com UM-36400C-U User manual ATEQ VT36 Page 28/32...
-
Page 31: Limited Hardware Warranty
ATEQ may, at its option, use new or may not apply to you. refurbished or used parts in good working condition National Statutory Rights to repair or replace any hardware product. -
Page 32: Fcc Statements
Always store the battery out or water, do not short circuit or short the contacts of reach of children. with a metal object. A Li-Po battery should be stored with a minimum Use a specified charger approved by the ATEQ charge 30%. store completely manufacturer and supplied with the device. -
Page 33: Ce Statements
This applies to your tool but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. For further information, please contact ATEQ. UM-36400C-U User manual ATEQ VT36 Page 31/32... -
Page 34: Index
Language ..........24 Warning ............3 Main Menu ..........8 Warranty ........... 29 WebTPM PC suite ........28 Operating instructions ........ 7 Overview ............ 7 Zone ............20 Part # Lookup ........... 17 UM-36400C-U User manual ATEQ VT36 Page 32/32... - Page 36 This document is the exclusive property of ATEQ. It may not be communicated, reproduced or used without prior consent.
