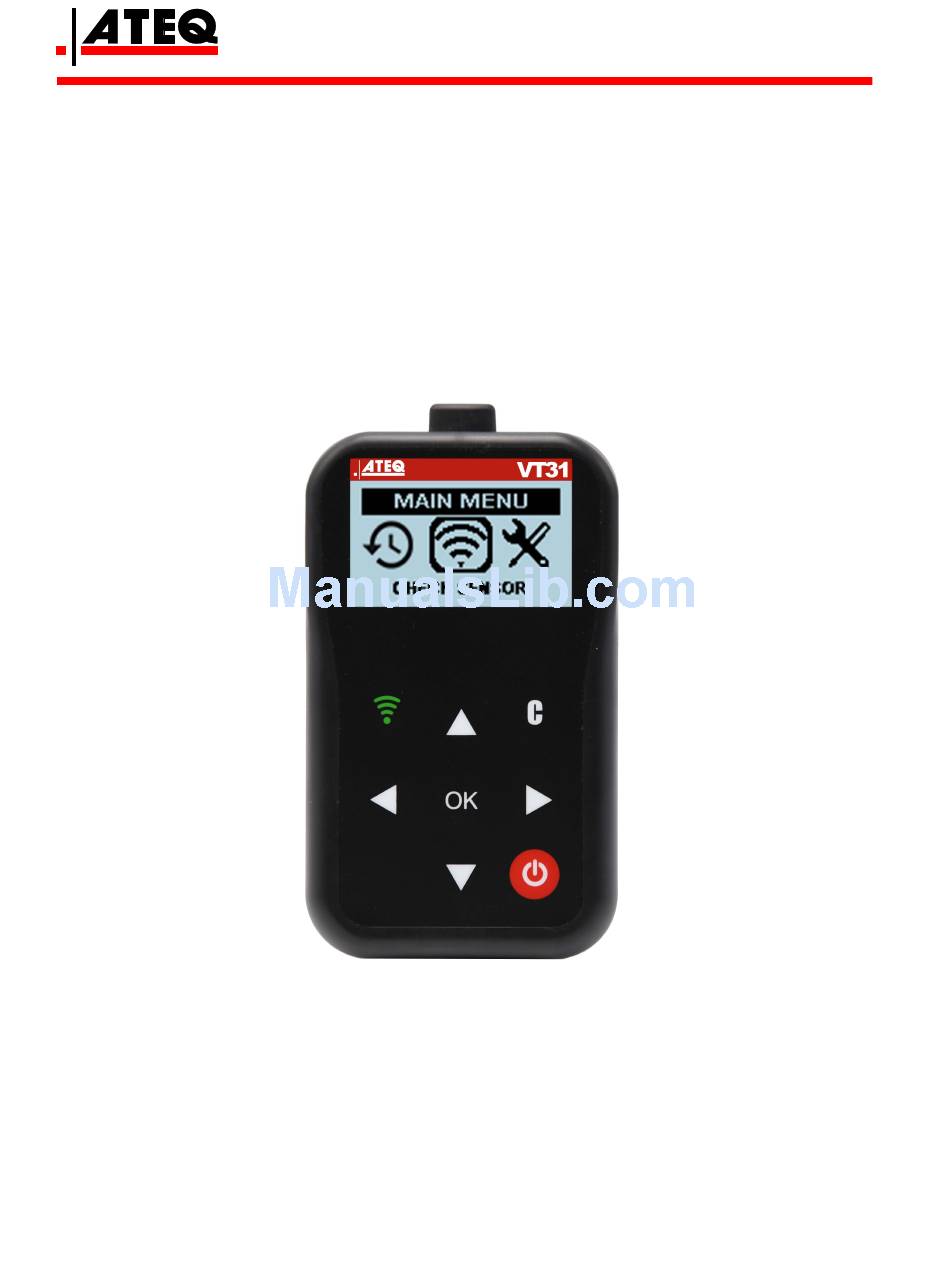

- Page 1 USER GUIDE ATEQ VT31 www.ateq-tpms.com AVAILABLE IN NORTH AMERICA ONLY...
- Page 2 VT31 TPMS TOOL user guide REVISION OF THE ATEQ VT31 MANUAL Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Edition/ Date Reference...
-
Page 3: Table Of Contents
1. ENTER IN THE ABOUT MENU ......................18 LANGUAGE ........................19 1. ENTER LANGUAGES MENU ......................19 MISCELLANEOUS ......................20 1. CHARGE ............................20 2. TROUBLESHOOTING ........................21 3. LIMITED HARDWARE WARRANTY ....................22 4. RECYCLING............................23 User manual ATEQ VT31 Page 2/23... -
Page 4: User Guide
Weight: Approx. 0.5 lbs. Temperature: Operating: 14° F to 122° F (-10° C to +50° C). Storage: -40°F to 140° F (-40° C to +60° C). Operating Altitude: Up to 6560 ft (2000 m). User manual ATEQ VT31 Page 3/23... -
Page 5: Important Safety Instructions
Do not use on live electrical circuits. Must read instructions before use. Wear safety goggles. (User and bystanders). Risk of entanglement. Read the Warranty, Safety and Recycling information at the end of this user guide. User manual ATEQ VT31 Page 4/23... -
Page 6: Caution
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the tool away from heat generating sources. Do not operate the tool with the battery cover removed. User manual ATEQ VT31 Page 5/23... -
Page 7: Function Keys

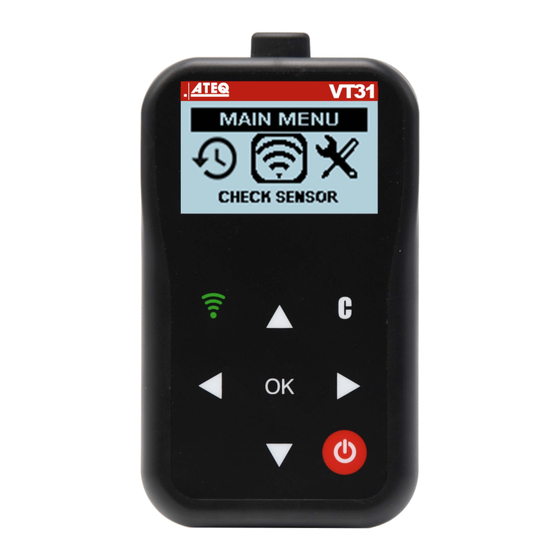

Power ON /OFF switch Test or trigger sensor. Next, continue or confirm. Cancel, previous step. Navigate to select "up”. Navigate to select “down”. Navigate to select “left”. Navigate to select “right”. Antenna Screen Keyboard User manual ATEQ VT31 Page 6/23... - Page 8 Fig. 1 ATEQ VT31 KAUNP1-01-00T The software version and work zone as Fig. 2. ZONE : AMERICA Fig. 2 MAIN MENU Then reverts to the MAIN MENU as Fig. 3. CHECK SENSOR Fig. 3 User manual ATEQ VT31 Page 7/23...
-
Page 9: Operating Instructions
FR 2 We recommend you trigger each wheel sensor, one final time, to make sure they are working correctly prior to releasing the vehicle to the customer. 4 End RL RR 3 Fig. 4 User manual ATEQ VT31 Page 8/23... -
Page 10: Vt31 Use
VEHICLE SELECTION TOYOTA SUBARU ProAce Combi > RAV4 III SUZUKI TESLA RAV4 IV > TOYOTA Solara II 1.2. S ELECT ODEL TOYOTA RAV4 III > 2005-2013 ProAce Combi > RAV4 III RAV4 IV Solara II User manual ATEQ VT31 Page 9/23... - Page 11 ▼ : START The tool is ready to trigger the sensors. 1.5. T EST SENSOR RAV4 III RAV4 III ▲ SELECT TIRE TRIGGER PROCESSING ◄ ► ▼ : START : START For tire selection. User manual ATEQ VT31 Page 10/23...
- Page 12 315 MHz : START : START RAV4 III 1: PASS : press to go to next 2: FAIL NO SENSOR DETECTED tire. 2/3: FAIL . : START RAV4 III 3: FAIL DUPLICATE SENSOR : START User manual ATEQ VT31 Page 11/23...
-
Page 13: Recent Sensor Data (Section To Complete)
VT31 TPMS TOOL user guide 2. RECENT SENSOR DATA (SECTION TO COMPLETE) This section is to … MAIN MENU RECENT SENSOR DATA User manual ATEQ VT31 Page 12/23... -
Page 14: Settings
UNITS : change the air pressure and temperature display (kPa, Bar or PSI with F° or C°). FORMAT : change the format of sensor ID display. CONTRAST : adjust LCD contrast level (0% to 100%). AUTO OFF : time to turn off the device automatically after not being operated. User manual ATEQ VT31 Page 13/23... - Page 15 Scroll up and down to select function or settings. Up or down to select the desired change. Press to confirm the change Enter settings parameter. and return to settings. Press return settings without change. User manual ATEQ VT31 Page 14/23...
- Page 16 AUTO : display sensor ID format in the way sensor is transmitting. DECIMAL : force to display sensor ID in decimal (0 to 9). HEXADECIMAL : force to display sensor ID in hexadecimal (0 to F). User manual ATEQ VT31 Page 15/23...
- Page 17 Scroll up and down to select function or settings. Up or down to select the desired change. Press to confirm the change Enter settings parameter. and return to settings. Press return settings without change. User manual ATEQ VT31 Page 16/23...
- Page 18 Scroll up and down to select function or settings. Up or down to select the desired change. Enter settings parameter. Press to confirm the change and return to settings. Press return settings without change. User manual ATEQ VT31 Page 17/23...
-
Page 19: About
MAIN MENU ABOUT SN : K360-00002 Version : KAUNP1-01-00T Database : MYAx-01 Receiver : OK ABOUT ABOUT FOR MORE INFORMATION : Scroll up and down to see different information WWW.ATEQ-TPMS.COM Press to return main menu. User manual ATEQ VT31 Page 18/23... -
Page 20: Language
VT31 TPMS TOOL user guide LANGUAGE 1. ENTER LANGUAGES MENU MAIN MENU LANGUAGE > ENGLISH ESPANOL FRANCAIS LANGUAGE Scroll up and down to select language. Validate by enter key. User manual ATEQ VT31 Page 19/23... -
Page 21: Miscellaneous
The power button can be pressed and held for a BATTERY LEVEL second to display battery status. Battery replacement When battery is low or your device doesn’t charge, change 9V PP3 battery on the back of your TPMS TOOL . User manual ATEQ VT31 Page 20/23... -
Page 22: Troubleshooting
3) The sensor may be the type that periodically triggers on its own and is not designed to respond to a triggering frequency. 4) Your TPMS TOOL may require a software upgrade. 5) Check “ Auto Off ” time settings for screen display. 6) Your TPMS TOOL is damaged or defective. User manual ATEQ VT31 Page 21/23... -
Page 23: Limited Hardware Warranty
(1) to repair or replace the hardware, or (2) to refund the price paid, provided that the hardware is returned to the point of purchase or such other place as ATEQ may direct with a copy of the sales receipt or dated itemized receipt. Shipping and handling charges may apply except where prohibited by applicable law. -
Page 24: Recycling
VT31 TPMS TOOL user guide No Other Warranties No ATEQ dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty. Warranty Periods Please note that in the European Union, any warranty period less than two years shall be increased to two years.
