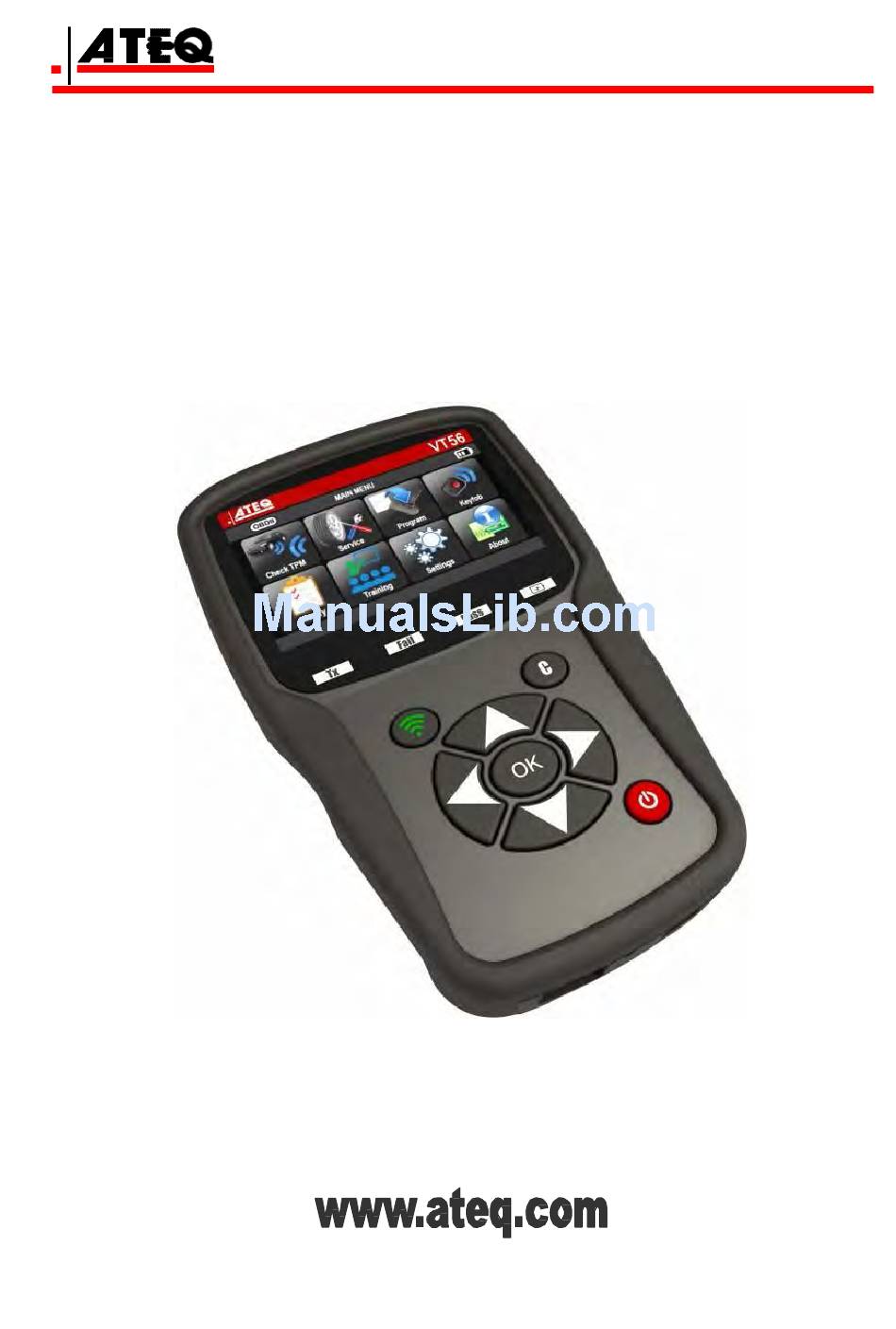

  • Page 1 USER GUIDE ATEQ VT 56025 Version DA1-03 Reference: UM-36600A-U...
  • Page 2 REVISION OF THE ATEQ VT56025 MANUAL Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Edition/ Date Reference Chapters updated Revision (week/year) First edition...

  • Page 3: Table Of Contents

    2. PRINT SENSOR DETAILS ......................35 3. TROUBLESHOOTING ........................36 4. TOOL UPDATE ..........................36 5. LIMITED HARDWARE WARRANTY ..................... 39 6. SAFETY BATTERY AND CHARGE INFORMATION ..............40 7. RECYCLING ..........................41 Index UM-36600A-U User manual ATEQ VT56025 Page 1...

  • Page 4: User Guide

    Storage: -4° F to 131° F (-20° C to +45° C). Product content: VT56025 TPMS Instrument. USB cable. RJ45 cable. Option accessories: OBDII Module. Re-Learn Magnet (option). Docking Station (option). IrDA Printer (option). UM-36600A-U User manual ATEQ VT56025 Page 2...

  • Page 5: Important Safety Instructions

    Do not use on live electrical circuits. Must read instructions before use. Wear safety goggles. (User and bystanders). Risk of entanglement. Read the Warranty, Safety and Recycling information at the end of this user guide. UM-36600A-U User manual ATEQ VT56025 Page 3...

  • Page 6: Caution

    To reduce the risk of fire, do not operate the tool in the vicinity of open containers or flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the tool away from heat generating sources. Do not operate the tool with the battery cover removed. UM-36600A-U User manual ATEQ VT56025 Page 4...

  • Page 7: Function Keys

    Power ON /OFF switch Next, continue or confirm. Cancel, previous step. Navigate to select "up”. Navigate to select “down”. Navigate to select “left”. Navigate to select “right”. Battery status Result lights Battery charge indicator Trigger light UM-36600A-U User manual ATEQ VT56025 Page 5...
  • Page 8 This icon is to back to the home page. This icon must be selected to send sensors data to the ECU. This icon is to delete the current sensors displayed. This icon is to send the sensor data to the printer. UM-36600A-U User manual ATEQ VT56025 Page 6...

  • Page 9: Power On

    The tool displays a first start picture. Wait a few seconds and the tool displays the main menu. The tool is ready to operate. To power off the tool, press and hold (about 3 seconds) the key. UM-36600A-U User manual ATEQ VT56025 Page 7...

  • Page 10: Operating Instructions

    TPM system has been retrained. For vehicles that do not require retraining, we recommend you trigger each wheel sensor, one final time, to make sure they are working correctly prior to releasing the vehicle to the customer. UM-36600A-U User manual ATEQ VT56025 Page 8...

  • Page 11: Vt56025 Use

    1. CHECK SENSOR This is to trigger all the sensors on the vehicle and reprogram the id's in the ECU through OBD port. Continue ELECT ANUFACTURER = Continue = Previous UM-36600A-U User manual ATEQ VT56025 Page 9...
  • Page 12 TPMS TOOL user guide ELECT VEHICLE MODEL = Continue = Previous ELECT YEAR = Continue = Previous EST SENSORS The tool is ready to trigger sensors. To scroll wheels. The tool is triggering the sensor. UM-36600A-U User manual ATEQ VT56025 Page 10...
  • Page 13 = Previous and erase results Trigger all wheels. = Continue = Previous and erase results The tool has not detected a sensor. Try again. = Continue = Previous and erase results = Next wheel. UM-36600A-U User manual ATEQ VT56025 Page 11...
  • Page 14 The transfer begins. The following messages appear briefly. CONNECTED TRANSFER OK = Previous VERIFY OK SUCCESSFUL TRANSFER The data transfer to the ECU is complete. OBD2 module must be unplugged from the DLC connector. UM-36600A-U User manual ATEQ VT56025 Page 12...

  • Page 15: Service Tpms

    Part lookup, Keyfob test, Help. Continue ELECT ANUFACTURER = Continue Scroll up and down = Previous to select a vehicle make. ELECT VEHICLE MODEL = Continue Scroll up and down = Previous to select a vehicle model. UM-36600A-U User manual ATEQ VT56025 Page 13...
  • Page 16 ELECT YEAR = Continue Scroll up and down = Previous to select a year. ELECT SERVICE The following services are available: Relearn procedure, RF detection, Part lookup, Keyfob test, Help. = Continue = Previous UM-36600A-U User manual ATEQ VT56025 Page 14...
  • Page 17 This service explains the procedure to relearn the sensor on the vehicle. = Continue = Previous = Continue Follow instructions. = Previous EST SENSORS The tool is ready to trigger sensors. To trigger the sensor. Proceed as "CHECK SENSOR". UM-36600A-U User manual ATEQ VT56025 Page 15...
  • Page 18 This unique feature allows users to find the sources of other RF interferences. The tool looks for these signals and displays the strength of the interference on the bar graph display. = Continue = Previous = Previous UM-36600A-U User manual ATEQ VT56025 Page 16...
  • Page 19 This is a spare parts data base for all the sensors available for all cars. = Continue = Previous = Previous to scroll dealer's part number. Example of partsuppliers: O'Reilly OE/Srv Kit DILL DORMAN John Dow Dynamic MYERS NAPA UM-36600A-U User manual ATEQ VT56025 Page 17...
  • Page 20 = Continue = Previous from the service menu = Continue = Previous Press key fob button If the tool detects a = Previous signal the light becomes on. UM-36600A-U User manual ATEQ VT56025 Page 18...
  • Page 21 This feature is to assist the user to troubleshoot the TPMS issue. = Continue = Previous = Continue Select the case of = Previous the issue. = Continue To continue = Previous information texts. Follow instructions on the screen. UM-36600A-U User manual ATEQ VT56025 Page 19...

  • Page 22: History

    TPMS TOOL user guide 3. HISTORY This feature is to list all the sensors triggered by make. = Continue = Continue Select the make to = Previous display. UM-36600A-U User manual ATEQ VT56025 Page 20...

  • Page 23: Settings

    AUTO OFF: time to turn off the device automatically after not being operated. ZONE: to select the area of work, AMERICA , EUROPE or KOREA. Be careful, when you change the zone, a WebVT download or SD card is required to get the zone data. UM-36600A-U User manual ATEQ VT56025 Page 21...
  • Page 24 LANGUAGE: select displayed language among English, Español, French, Deutsch, Italiano, Cestina, Polski. = Confirm Scroll up and down = Previous to select the Language menu. = Confirm Scroll up and down = Previous to select a language. UM-36600A-U User manual ATEQ VT56025 Page 22...
  • Page 25 UNITS: change the air pressure and temperature display (kPa, Bar or PSI with F° or C°). = Confirm Scroll up and down = Previous to select the Units menu. = Confirm Scroll up and down = Previous to select a unit. UM-36600A-U User manual ATEQ VT56025 Page 23...
  • Page 26 AUTO: display sensor ID format in the way sensor is transmitting. DECIMAL: force to display sensor ID in decimal (0 to 9). HEXADECIMAL: force to display sensor ID in hexadecimal (0 to F). UM-36600A-U User manual ATEQ VT56025 Page 24...
  • Page 27 When buzzer on is set to YES, a beep is triggered when the sensor ID is detected. = Confirm Scroll up and down = Previous to select Buzzer On menu. = Confirm Scroll up and down = Previous to select Yes or No. UM-36600A-U User manual ATEQ VT56025 Page 25...
  • Page 28 Scroll up and down = Previous to select Auto Off menu. = Confirm Scroll up (+) to Increase time and = Previous down (-) to decrease time. Change by 60 min (maximum) to DISABLED (never). UM-36600A-U User manual ATEQ VT56025 Page 26...
  • Page 29 Scroll up and down = Previous to select a Zone. = Confirm Scroll up and down = Previous to select a new zone. The tool will load the new database for the selected zone. UM-36600A-U User manual ATEQ VT56025 Page 27...

  • Page 30: About

    TPMS TOOL user guide 5. ABOUT = Continue = Previous = Previous UM-36600A-U User manual ATEQ VT56025 Page 28...

  • Page 31: Program Blank Sensor

    Following your options, some above brands in example may change. = Continue Scroll up and down to select a vehicle = Previous make. = Continue = Previous Scroll up and down to select a vehicle model. UM-36600A-U User manual ATEQ VT56025 Page 29...
  • Page 32 COPY option. = Previous Position the sensor in front of the tool antenna to check To trigger the sensor. the sensor. The tool trigger the sensor, wait a few seconds. UM-36600A-U User manual ATEQ VT56025 Page 30...
  • Page 33 Position the sensor in front of the tool antenna to send the = Continue ID to the new sensor. = Home Wait a few seconds. The tool verifies the ID uploaded. The sensor is cloned. UM-36600A-U User manual ATEQ VT56025 Page 31...
  • Page 34 CREATE option. = Previous Position the sensor in front of the tool = Continue antenna to send ID to the new sensor. = Home Wait a few seconds. The tool verifies the ID uploaded. UM-36600A-U User manual ATEQ VT56025 Page 32...
  • Page 35 TPMS TOOL user guide The sensor is = Continue created. = Previous EPROGRAM ISSUE In case of ID = Start transfer issue, the again following message appears, start again. = Previous UM-36600A-U User manual ATEQ VT56025 Page 33...

  • Page 36: Miscellaneous

    Plug the jack to the docking station and install the tool in. The docking and in all cases, the LED "CHARGE" light will turn on (red). Battery replacement It's recommended to return the tool to the factory for battery replacement. UM-36600A-U User manual ATEQ VT56025 Page 34...

  • Page 37: Print Sensor Details

    Note: the link between the tool and the printer is infrared. 5) Select with the arrows the icon. = Print 6) Printing the results by pressing OK = Previous UM-36600A-U User manual ATEQ VT56025 Page 35...

  • Page 38: Troubleshooting

    IMPORTANT: Temporarily turn off all of the anti-virus and spam blocking software on your computer. This is necessary to ensure a successful upgrade. Slot for SD card for non Internet USB connector update. for Internet update. USB connector for Internet update with tool in docking station. UM-36600A-U User manual ATEQ VT56025 Page 36...
  • Page 39 Warning! Do not disconnect the TPMS TOOL from the PC or turn off your computer during the update process. This may result in serious damage to the tool. UM-36600A-U User manual ATEQ VT56025 Page 37...
  • Page 40 8) Turn the TPMS TOOL on. The latest software version will be displayed on the screen. Warning! Do not turn off the TPMS TOOL or extract the SD card during the update process. This may result in serious damage to the tool. UM-36600A-U User manual ATEQ VT56025 Page 38...

  • Page 41: Limited Hardware Warranty

    BREACH OF ANY EXPRESS OR IMPLIED provided that the hardware is returned to the WARRANTY ON YOUR PRODUCT EVEN IF point of purchase or such other place as ATEQ ATEQ HAS BEEN ADVISED OF THE may direct with a copy of the sales receipt or POSSIBILITY OF SUCH DAMAGES.

  • Page 42: Safety Battery And Charge Information

    Remember to follow any special current Use a specified charger approved by the regulations any area, and always switch off ATEQ manufacturer and supplied with the your device when its use is prohibited or device. when it may cause interference or danger.

  • Page 43: Recycling

    This applies to your tool but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. For further information, please contact ATEQ. UM-36600A-U User manual ATEQ VT56025 Page 41...

  • Page 44: Index

    Language........21, 22 Use Instructions ........4 Main Menu ........... 9 Warning ..........3 Miscellaneous ........34 Warranty..........39 WebTPM PC suite ......37 Operating instructions ......8 Overview..........8 Zone ........... 27 UM-36600A-U User manual ATEQ VT56025 Page 42...
  • Page 45 Test Box Diagnose Sensor failures without having to mount and dismount the tire several times. Ensure your gauge pressure matches the “Tire Relative Pressure”. Save valuable time. Tire Inflator Fit your tire filling hose with a compatible TPMS pressure gauge. The vehicle dashboard gives you an absolute pressure reading while your shop gauge displays a relative pressure.
  • Page 46 This document is the exclusive property of ATEQ. It may not be communicated, reproduced or used without prior consent.
