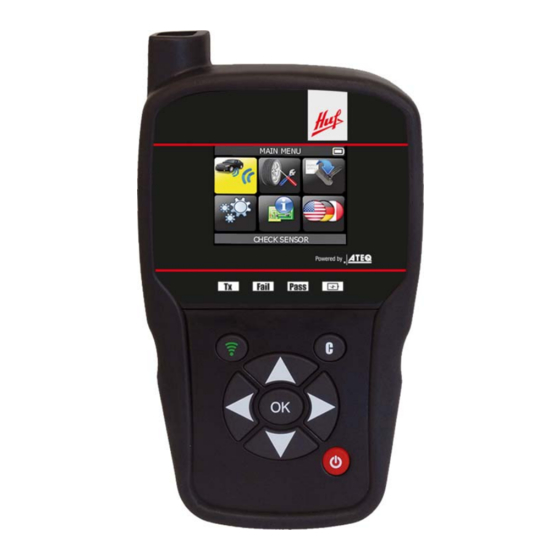

ATEQ Huf VT46-HUF User Manual

Tpms tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

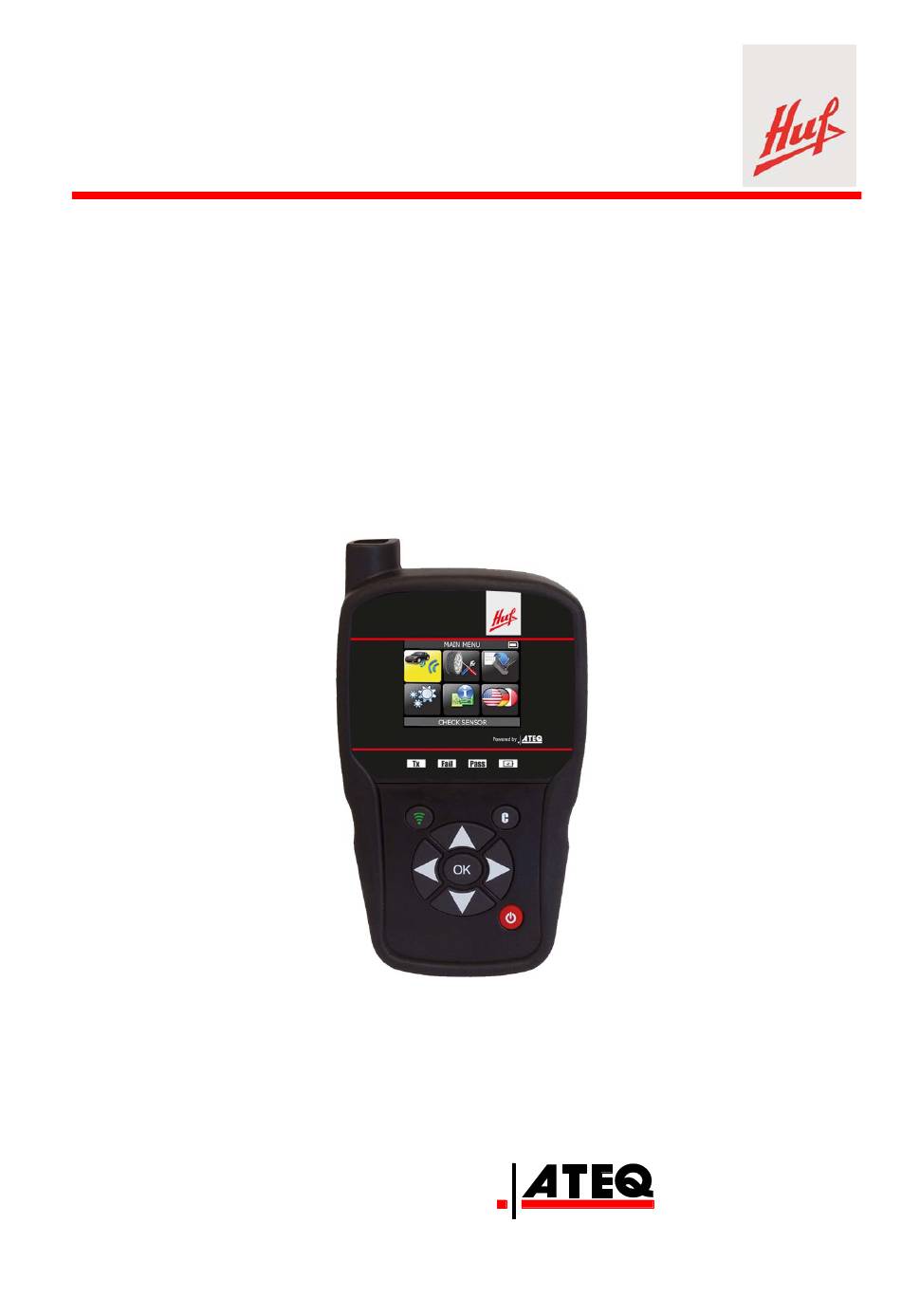

USER GUIDE
VT46-HUF
Version JHUF2-07
Powered by
Reference: UM-365HUA-U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Huf VT46-HUF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEQ Huf VT46-HUF

Summary of Contents for ATEQ Huf VT46-HUF

  • Page 1 USER GUIDE VT46-HUF Version JHUF2-07 Powered by Reference: UM-365HUA-U...
  • Page 2 REVISION OF THE VT46-HUF GUIDE Due to continuing improvements, the information contained in this user manual, and the features and design of this device are subject to be changed without prior notice. Edition/ Date Reference Chapters updated Revision (week/year) First edition UM-365HUA-U 24/2017 S/W version JHUF2-07.

  • Page 3: Table Of Contents

    VT46-HUF TPMS TOOL Table of contents TABLE OF CONTENTS User Guide   VT46-HUF TPMS TOOL....................2     1. SPECIFICATIONS ..........................2   2. IMPORTANT SAFETY INSTRUCTIONS ..................... 3   3. CAUTION ............................. 4   4. TOOL OVERVIEW ..........................5  ...

  • Page 4: User Guide

    VT46-HUF TPMS TOOL User guide User Guide VT46-HUF TPMS TOOL 1. SPECIFICATIONS Battery Type: Rechargeable Lithium-Polymer. Battery Life: Approximately 300 activations per full charge. Dimensions (Max. L,W,D): 20.0 cm x 12.0 cm x 4.0 cm. Case Material: High Impact ABS. Response Frequency: Main frequencies: 315 MHz and 433.92 MHz (supporting most specific frequencies).

  • Page 5: Important Safety Instructions

    VT46-HUF TPMS TOOL User guide 2. IMPORTANT SAFETY INSTRUCTIONS Do not discard. Retain for future reference. This device complies with: - Part 15 of the FCC Rules (FCC ID: 2ABSJ-VT46) - CE / CEM standards - ROHS standards Operation is subject to the following two conditions: (1) This device will not cause harmful interference, and (2) This device will accept any interference received, including interference that may cause undesired or improper operation.

  • Page 6: Caution

    VT46-HUF TPMS TOOL User guide 3. CAUTION PLEASE READ THESE INSTRUCTIONS BEFORE USE Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and reliable when properly used. All TPMS TOOLS are intended for use only by qualified and trained automotive technicians or in a light industrial repair shop environment.

  • Page 7: Tool Overview

    VT46-HUF TPMS TOOL User guide 4. TOOL OVERVIEW Antenna Display screen Keyboard 4.1. L IGHTS Result light Result light Trigger light Battery status "Fail" "Pass" 4.2. C ONNECTORS RJ45 connector for OBD USB connector for module connection battery charge and firmware update.

  • Page 8: Function Keys

    VT46-HUF TPMS TOOL User guide 5. FUNCTION KEYS Power ON/OFF switch Test or trigger sensor. Next, continue or confirm. Cancel, previous step. Navigate to select "up”. Navigate to select “down”. Navigate to select “left”. Navigate to select “right”. UM-365HUA-U User manual VT46-HUF Page 6/34...

  • Page 9: Power On

    VT46-HUF TPMS TOOL User guide 6. POWER ON Press turn device. The TPMS TOOL:  First displays the logo as Fig. 1. Fig. 1  The software version and the work zone as Fig. 2. Fig. 2  The MAIN MENU will then be displayed as Fig.

  • Page 10: Operating Instructions

    VT46-HUF TPMS TOOL User guide 7. OPERATING INSTRUCTIONS 7.1. TPMS TOOL O VERVIEW Read and diagnose sensors, OBDII ECU reset and transfer data to ECU. Note: With some vehicles, if the vehicle is in “learn mode” the vehicle will also confirm that the TPM sensor has communicated to the ECU with a series of horn beeps.

  • Page 11: Tool Usage

    VT46-HUF TPMS TOOL User guide TOOL USAGE IMPORTANT: Vehicle specific information in this manual is used as an example and may not represent specific instructions each make and model may require. When performing various functions with the tool, it is important to refer to the on-screen prompts and/or repair manual information.
  • Page 12 VT46-HUF TPMS TOOL User guide 1.2. S ELECT ODEL = continue = previous 1.3. S ELECT YEAR = continue = previous 1.4. S ELECT NUMBER OF WHEELS This option does not appear for all vehicles. = continue = previous UM-365HUA-U User manual VT46-HUF Page 10/34...
  • Page 13 VT46-HUF TPMS TOOL User guide 1.5. T EST SENSORS TRIGGER = continue = previous Select tire. 1.6. T EST RESULTS to select next tire To select another tire or The tool is triggering the sensor. UM-365HUA-U User manual VT46-HUF Page 11/34...
  • Page 14 VT46-HUF TPMS TOOL User guide Trigger all wheels. = continue = previous and erase results (no save) The tool does not detect a sensor Press to test again. Or press to move on to the next step. UM-365HUA-U User manual VT46-HUF Page 12/34...

  • Page 15: Service Tpms

    VT46-HUF TPMS TOOL User guide 2. SERVICE TPMS This menu has two functions, first to relearn sensor IDs to the ECU and second to read all sensor spare part numbers available by vehicle. = continue Select "SERVICE TPMS" = previous menu.
  • Page 16 VT46-HUF TPMS TOOL User guide 2.1.1. Reprogram ECU through OBDII port = continue = previous The tool is triggering the sensor. Plug OBDII module into the OBDII port on vehicle. = continue = abort Note: the following screen message is displayed when all the sensors are triggered and the OBDII module is connected to the TPMS TOOL.
  • Page 17 VT46-HUF TPMS TOOL User guide Note: this feature is not supported on all vehicles. The data has been successfully transferred to the ECU. The OBDII module can = abort now be unplugged from the ECU. 2.2. P OOKUP This spare parts data base indicates the sensors available for each car. = continue = previous = continue...

  • Page 18: Program Blank Sensor

    VT46-HUF TPMS TOOL User guide 3. PROGRAM BLANK SENSOR This section explains how to recover a sensor ID in order to enter it in a blank sensor. If the "old" sensor can be read, use the "COPY ORIGINAL SENSOR" menu to recover the ID.
  • Page 19 VT46-HUF TPMS TOOL User guide 3.1. "C " OPY ORIGINAL SENSOR MENU = continue = previous to trigger the original sensor Wait a few seconds. = continue ID of the old sensor is displayed. = previous UM-365HUA-U User manual VT46-HUF Page 17/34...
  • Page 20 VT46-HUF TPMS TOOL User guide Hold the new programmable sensor to upload data near the device antenna. to the blank sensor. Wait a few seconds. Wait a few seconds. The data has now been successfully transferred to the sensor. = continue UM-365HUA-U User manual VT46-HUF Page 18/34...
  • Page 21 VT46-HUF TPMS TOOL User guide 3.2. "C " REATE NEW SENSOR SECTION = continue = previous Hold the new programmable sensor to upload data near the device antenna. to the blank sensor. Wait a few seconds. Wait a few seconds. The data has now been successfully transferred to the sensor.

  • Page 22: Settings

    VT46-HUF TPMS TOOL User guide SETTINGS 1. SETTINGS = continue = previous Select "SETTINGS" menu. = continue Scroll up and down to = previous select function or settings. Key functional descriptions: REGION: to select the area of work, AMERICA, EUROPE and KOREA. UNITS: change the air pressure and temperature display (kPa, Bar or PSI with F°...
  • Page 23 VT46-HUF TPMS TOOL User guide 1.1. C HANGE EGION SETTINGS = confirm Scroll up and down = previous to select the zone menu. = confirm Scroll up and down = previous to select a zone. The tool will load the new database for the selected zone. 1.2.
  • Page 24 VT46-HUF TPMS TOOL User guide 1.3. C HANGE ORMAT SETTINGS = continue Scroll up and down to = previous select function or settings. = continue Scroll up and down to = previous select the format. AUTO: display sensor ID format in the way sensor is transmitting. DECIMAL: force to display sensor ID in decimal (0 to 9).
  • Page 25 VT46-HUF TPMS TOOL User guide 1.5. C HANGE ETTINGS = continue Scroll up and down to = previous select function or settings. The selection turns red. = continue = previous Scroll up and down to set the time. Change from 1 to 60 min or DISABLED. 1.6.
  • Page 26 VT46-HUF TPMS TOOL User guide 1.7. A BOUT MENU This menu displays the current firmware version and information about the device. = continue Select the "ABOUT" = previous menu. = previous UM-365HUA-U User manual VT46-HUF Page 24/34...

  • Page 27: Recent Sensor Data

    VT46-HUF TPMS TOOL User guide RECENT SENSOR DATA 1. RECENT SENSOR DATA When a new vehicle is triggered the result is automatically stored in the RECENT SENSOR DATA menu. You may recall the result and continue to trigger the entire vehicle. The data is automatically replaced if a new vehicle is triggered.

  • Page 28: Rke Test

    VT46-HUF TPMS TOOL User guide RKE TEST 1. RKE TEST This is to test the strength of the keyfob RF signal. = continue = previous Select "SETTINGS" menu. 1.1. S ELECT ANUFACTURER = continue = previous 1.2. S ELECT ODEL = continue = previous UM-365HUA-U...
  • Page 29 VT46-HUF TPMS TOOL User guide 1.1. S ELECT THE REQUENCY = continue = previous 1.2. R EAD INSTRUCTIONS To reset the device and start a new test. Press keyfob buttons. = previous The device waits for RF signal. 1.3. T EST RESULTS PASS: High signal strength, more than...

  • Page 30: Miscellaneous

    VT46-HUF TPMS TOOL User guide MISCELLANEOUS 1. CHARGE Low Battery Indication Battery indicator status: Your TPMS TOOL incorporates a low battery detection circuit. Battery life averages 300 sensor tests per charge 100% (approximately 60 to 80 vehicles), When 0% is flashing, the tool will turn off after although this may vary depending on 10 seconds.

  • Page 31: Troubleshooting

    VT46-HUF TPMS TOOL User guide 2. TROUBLESHOOTING If the TPMS TOOL is unable to trigger one or more of the sensors, please use the following troubleshooting guide: 1) The vehicle does not have a sensor even though a metal valve stem is present. Be aware of rubber style snap-in stems used on TPMS systems.

  • Page 32: Tool Update

    VT46-HUF TPMS TOOL User guide 3. TOOL UPDATE Upgrading your TPMS TOOL When new vehicles and sensors become available, it is necessary to upgrade your tool. Please follow the steps below: IMPORTANT: Temporarily turn off all anti-virus and spam blocking software on your computer. This is necessary to ensure a successful upgrade.

  • Page 33: Limited Hardware Warranty

    VT46-HUF TPMS TOOL User guide DIRECT OR INDIRECT) OR COMMERCIAL 4. LIMITED HARDWARE WARRANTY LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT HUF Limited Hardware Warranty EVEN IF HUF HAS BEEN ADVISED OF THE HUF warrants to the original purchaser that your POSSIBILITY OF SUCH DAMAGES.
  • Page 34 VT46-HUF TPMS TOOL User guide When the red LED turns off, the charge is NEVER charge the battery immediately after use complete. and while still hot. Leave it to cool down to ambient temperature. About the Charger If you see any smoke or liquid coming from the Do not use the charger in a high moisture battery, stop the charge immediately.

  • Page 35: Fcc Statements

    VT46-HUF TPMS TOOL User guide interference, and (2) this device must accept any 6. FCC STATEMENTS interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to 7. CE STATEMENTS comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 36: Index

    VT46-HUF TPMS TOOL Index Index A  Overview ............ 8 About ............24 P  Accessories ..........2 Power supply ..........32 Auto off ............. 23 Product content .......... 2 B  Program blank sensor ......16 Battery ............32 R  Buzzer ............22 Recent sensor data ........
  • Page 38 Powered by This document is the exclusive property of HUF IntelliSens. It may not be communicated, reproduced or used without prior consent.
