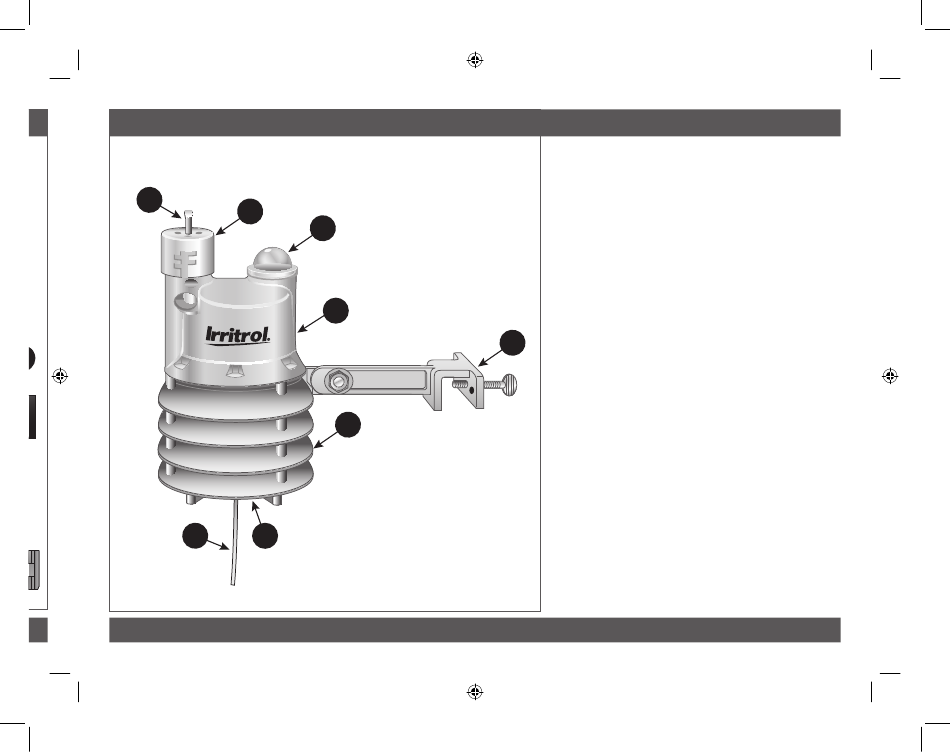

CL-W1
Wireless Weather Sensor
1
4
8
2
3
4
6
7
1 – Weather Sensor Test Pin
Pressed to simulate rain sensor
operation and test communication.
2 – Rain Sensor Adjustment Cap
Adjusts Rain Sensor threshold to a
nominal setting of 1/8", 1/4", 1/2" or 3/4"
(3 mm, 6 mm, 12 mm or 19 mm)
of accumulated rainfall.
3 – Solar Collector
Collects and measures solar radiation.
5
Requires full exposure to sunlight.
4 – Battery Compartment
Factory-installed 9V-Alkaline battery
can sustain normal Weather Sensor
operations up to five years.
5 – QuickClip Mounting Bracket
TM
Convenient QuickClip mounting
bracket provides quick and easy
Weather Sensor installation.
6 – Temperature Sensor (not shown)
7 – RF Transmission LED (not shown)
8 – Antenna Wire
Climate Logic at a Glance
5
