Quick Start Guide - Irritrol Climate Logic User Manual

Climate Logic System
The Quick-Start guide provides the essential steps required to properly install and setup the
Climate Logic system in the most direct route possible. As needed, refer to the detailed information
on the page number listed with each step.

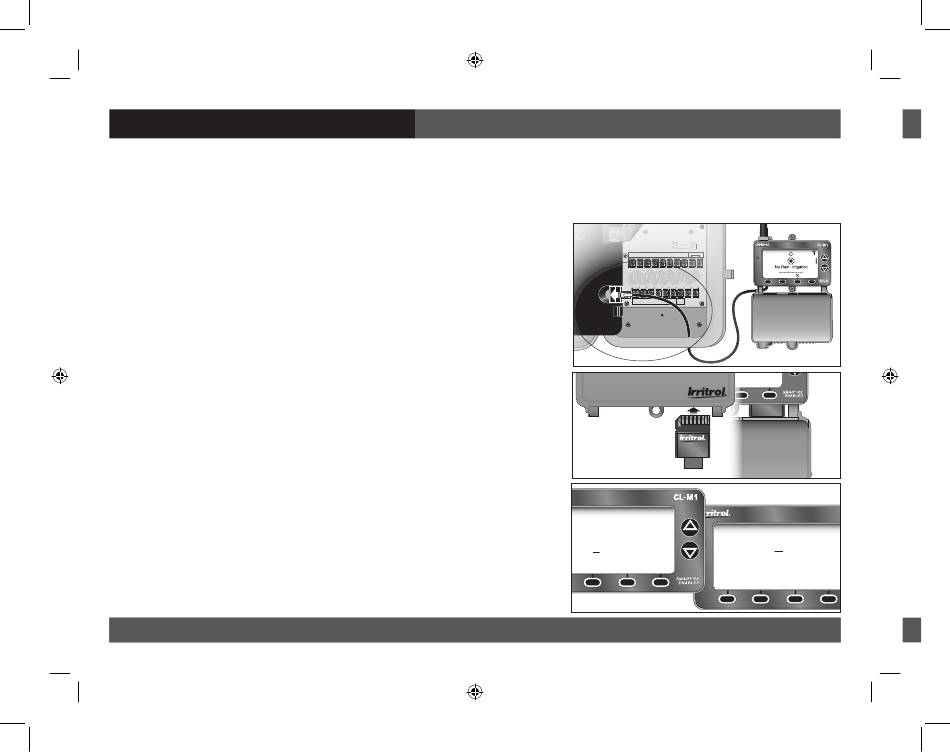

Step 1 – Connect and secure the Receiver Module next
to the controller. See page 6.
Step 2 – Adjust controller program A for the hottest/
driest conditions expected, without causing
over-watering and runoff. Retain all watering
time/day restrictions in the program schedule
as required See page 6.
Step 3 – Synchronize the Receiver Module and controller
to the current time and date. See page 7.
Step 4 – Insert the Receiver Module Setup Card as
shown. See page 8.
Step 5 – Establish your location by entering the five-digit
ZIP code, or Lat/Lon coordinates as preferred.
See page 8.
2 2
Quick Start Setup Guide Topic
Quick-Start Guide
CLIMATE LOGIC CLIMATE LOGIC
CLIMATE LOGIC
Location
ZIP
00000
SAVE CANCEL
CLIMATE LOGIC
24 VAC
EARTH 7 8 9 10 11 12 VC
GROUND
100%
_ _ _ F
9:15
a
MENU
+ -
1 2 3 4 5 6 MV/
Pump
Sensor
CLIMATE LOGIC CLIMATE LOGIC
TM TM
69 40% 30%
F F
– – –
No Rain - Irrigation
MUST SET LOCATION
1:15 11/16
a
MENU MENU SET LOC
CLIMATE LOGIC
CLIMATE LOGIC TM
SETUP CARD SETUP CARD
THIS SIDE UP THIS SIDE UP
CLIMATE LOGIC
CLIMATE LOGIC
SETUP CARD
SETUP CARD
THIS SIDE UP
Location
00.0000
LAT
-000.0000
LONG
LAT NEXT
North America
SAVE CANCEL ZIP
Quic
Step 6
11/16
Step 7
Step 8
Step 9
NEXT
