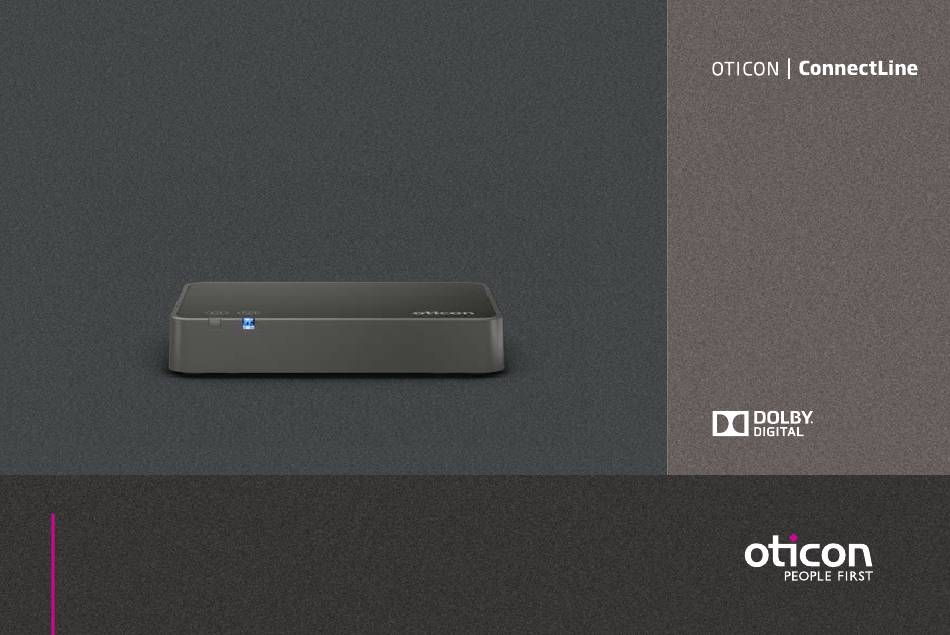

- Page 1 TV Adapter 2.0 Instructions for use...
- Page 2 This booklet guides you on how to use and maintain your new TV Adapter. Please read TV Adapter 2.0 is intended to be used together with the Oticon Streamer the booklet carefully including the Warning section. This will help you to achieve the full or Oticon Streamer Pro and Oticon wireless hearing instruments.
-
Page 3: Table Of Contents
Contents TV adapter overview Warnings Installation Placing the TV adapter Connecting the TV adapter to a power outlet Connecting the TV adapter to the TV Connecting using TOSLINK Connecting using RCA Connecting using mini jack adapter Connecting using SCART Pairing the Streamer to the TV adapter Volume control Start TV listening IMPORTANT NOTICE... - Page 4 Package content Box 1 Box 2 The TV adapter box consists of the following elements: Power supply RCA cable Mini jack Adapter TV Adapter 2.0 Box 3 Instructions for use TV Adapter 2.0 This guide (Instructions for use) TOSLINK...
-
Page 5: Tv Adapter Overview
TOSLINK inserted and streaming (invalid signal)* Fault condition ** No light Blinking Steady * Try other input connection * * Contact your hearing care professional SelectMe Power supply TOSLINK out TOSLINK in RCA left and right For more information please refer to: www.oticon.ca/connectline... -
Page 6: Warnings
Warnings Warnings You should familiarize yourself fully with the following general warnings and the Choking hazards and risk of swallowing small parts entire contents of this booklet before using your TV Adapter to ensure personal safety • Your TV Adapter and its parts should be kept out of reach of children and anyone who and correct use. -
Page 7: Installation
Installation Activating the TV adapter for the first time Before you can use the Streamer and your hearing aids with your TV, the TV adapter must be connected to a power outlet, connected to the TV and paired with your Streamer. This is a step-by-step guide on how to install the TV adapter. -
Page 8: Placing The Tv Adapter
Placing the TV adapter There are two options of placing the TV adapter: 1. Close to the TV — placed horizontally (A). 2. Behind or close to the TV hanging on the wall (vertically) (screws not included) (B). -
Page 9: Connecting The Tv Adapter To A Power Outlet
Connecting the TV adapter to a power outlet Start by connecting the TV adapter to a power outlet. Box 1 Use the power supply from box 1 1. Plug the power cord into the “power” connector on the TV adapter (A). 2. -
Page 10: Connecting The Tv Adapter To The Tv
*Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. Please refer to the detailed specification of ConnectLine TV Adapter 2.0. (www.oticon.ca/connectline) and your TV manual/specifications to ensure compatibility. Please see the following pages for a solution which fits your TV. -
Page 11: Connecting Using Toslink
Please note: It may be necessary to configure your TV, DVD player or home theatre system so that the correct audio output is available on the TOSLINK output. For more advanced or complex installations please refer to the support section on www.oticon.ca/connectline... -
Page 12: Connecting Using Rca
4. Refer to page 28 for pairing of Streamer with the TV adapter. Please note: It may be necessary to configure your TV so that the correct audio output is available on the RCA output. For more advanced or complex installations please refer to the support section on www.oticon.ca/connectline... -
Page 13: Connecting Using Mini Jack Adapter
5. Refer to page 28 for pairing of the TV adapter with Streamer. Please note: The TV speakers may be muted when connecting to the headphone output, and sound only heard through the Streamer/TV adapter. For more advanced or complex installations please refer to the support section on www.oticon.ca/connectline TV cord... -
Page 14: Connecting Using Scart
SCART output (i.e. not e.g. sound from a connected DVD player). For more advanced or complex installations please refer to the support section on www.oticon.ca/connectline * The SCART Adapter is an accessory which is not included in the package content. If you need a SCART Adapter,... -
Page 15: Pairing The Streamer To The Tv Adapter
Pairing the Streamer to the TV adapter Before using your Streamer for TV listening, it must be paired to the TV adapter. For pairing: 1. Make sure the TV adapter is powered on, i.e. the power indicator is steady green. Press and hold the on/off button on the Streamer Pro (B) for 5-6 seconds until the blue light starts blinking (A). - Page 16 Pairing Streamer Pro Streamer Pro Description top status front adapter Streamer and TV adapter on Streamer in pairing mode Pairing complete Streaming — no audio input detected RCA inserted and streaming TOSLINK inserted and streaming (digital) Steady Blinking...
-
Page 17: Volume Control
Volume control Use the volume button on the Streamer to adjust the TV volume level in the hearing instruments. Adjust the volume by pressing up or down briefly. Repeat the brief press for further adjustments. Mute While watching TV it is possible to switch off the microphones in your hearing instruments, so that only the sound from the TV is heard. -
Page 18: Start Tv Listening
Start TV listening Pairing Streamer Pro Streamer Pro Description Make sure to wear the Streamer around your neck using the top status front adapter neck loop, and make sure the Streamer is powered on. Streamer and TV adapter on Turn on the TV sound Streaming - no audio input detected Briefly press the TV button on the front of the Streamer. -
Page 19: Selectme, Using More Than One Tv Adapter
SelectMe, using more than one TV adapter With Streamer Pro 1.1 and later you can use multiple TV adapters. E.g. one in the living room and one in the bedroom. To switch between TV adapters: 1. Make sure you are not connected to any TV adapter i.e. the Streamer should be turned on, but not active. -
Page 20: Technical Information
Technical information USA and Canada This device contains a radio module with the following certification ID numbers: Model name BS-F200 FCC ID: U28TVBOX03 Operating conditions Temperature: +5°C to +40°C Humidity: 15% to 93%, non-condensing IC: 1350B-TVBOX03 Atmospheric pressure: 700 hPa to 1060 hPa Storage and transportation Temperature and humidity shall not exceed the below limits for Notice: The device complies with Part 15 of the FCC Rules and with Industry Canada’s... - Page 21 This Class B digital apparatus complies with Canadian ICES-003. Radiofrequency radiation exposure Information: This equipment complies with FCC and IC radiation exposure limits set forth for an NOTE: This equipment has been tested and found to comply with the limits for a Class B uncontrolled environment.
- Page 22 International warranty Hereby, Oticon A/S declares that this TV Adapter 2.0 (BS-F200) is in compliance with the essential Your TV adapter is covered by an international limited warranty issued by the manufacturer for a period of 12 months from the date of delivery. This limited warranty...
- Page 23 Imported and Distributed by: Audmet Canada Ltd 1600-4950 Yonge St Toronto, ON M2N 6K1 www.oticon.ca...
