oticon ConnectLine Phone Adapter 2.0 Instructions For Use Manual

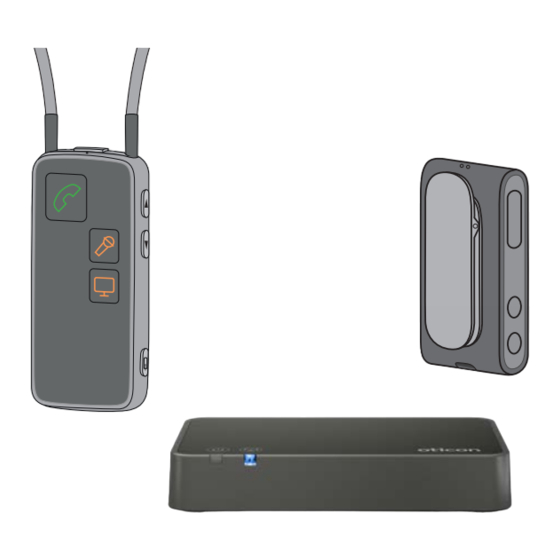

Intended to be used together with oticon connectclip or oticon streamer pro and oticon wireless hearing aids
Hide thumbs Also See for ConnectLine Phone Adapter 2.0:
Table of Contents

Advertisement

Quick Links

Phone Adapter 2.0
Instructions for use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ConnectLine Phone Adapter 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for oticon ConnectLine Phone Adapter 2.0

Summary of Contents for oticon ConnectLine Phone Adapter 2.0

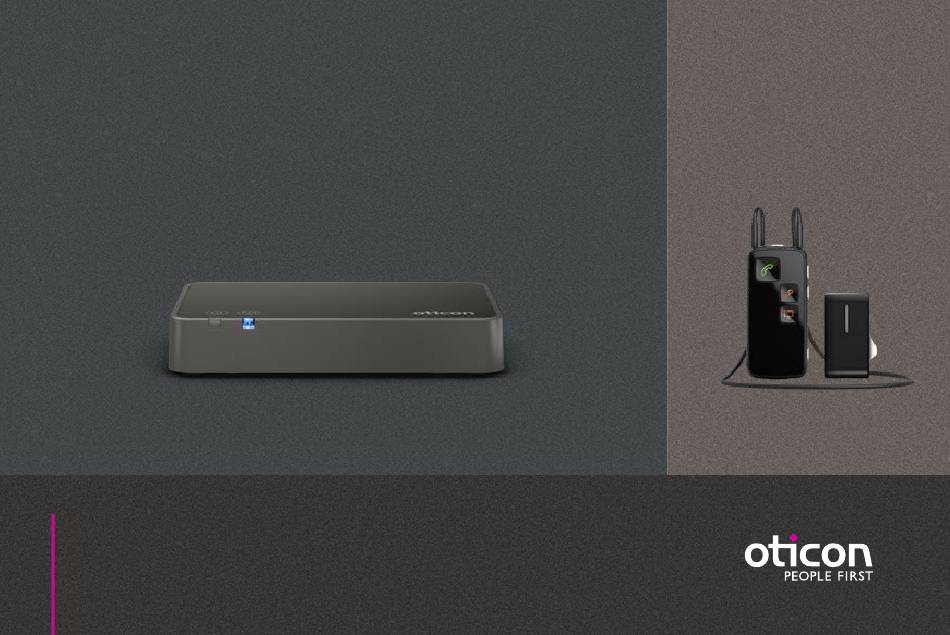

  • Page 1 Phone Adapter 2.0 Instructions for use...

  • Page 2: Table Of Contents

    Contents Using the ConnectLine phone adapter Incoming calls Streamer Pro Outgoing call Streamer Pro Incoming calls ConnectClip Outgoing calls ConnectClip Cleaning the Phone Adapter International warranty Additional information...

  • Page 3: Using The Connectline Phone Adapter

    Using the ConnectLine phone adapter The landline phone solution supports both incoming and outgoing phone calls. During a phone call the hearing aids are used as headsets and the microphone, on the Streamer or on the ConnectClip, enables hands-free operation. Streamer ConnectClip This part of the guide is the “Instructions for Use”, and it explains how the Streamer or...

  • Page 4: Incoming Calls Streamer Pro

    Incoming calls Streamer Pro How to answer and end a call Make sure that you are able to speak into the Streamer’s microphone. Microphone When your landline phone rings, you will hear an incoming call alert in your hearing aids. The phone indicator on the phone adapter will blink green and at the same time the phone button on the Streamer and the status indicator will blink green.
  • Page 5 Receiving a call Streamer Pro Streamer Pro Streamer Pro Phone Description top status front adapter Streamer and phone adapter connected Phone ringing: Phone indicator and Streamer Pro top status blink green. You will hear an incoming call notification in your aids. When the call is connected, you will hear a beep acknowledging that the call is answered –...

  • Page 6: Outgoing Call Streamer Pro

    Outgoing call Streamer Pro How to make a call Make sure that you are able to speak into the Streamer’s microphone. Microphone 1. To make a call press the Streamer’s phone button briefly (A). The hook is now off and you will hear a dial tone in the hearing aids. The phone button on the Streamer and phone indicator on the phone adapter will turn steady green.
  • Page 7 Making a call Streamer Pro Streamer Pro Phone Description top status front adapter Streamer and phone adapter are connected Press the Streamer’s phone button briefly and you will hear a dial tone in the hearing aids Steady Blinking...

  • Page 8: Incoming Calls Connectclip

    Incoming calls ConnectClip How to make a call Make sure that you are able to speak into the ConnectClips microphone (A). When your landline phone rings, you will hear an incoming call alert in your hearing aids. The phone indicator on the phone adapter will blink green and at the same time the status indicator on the ConnectClip will blink green (B).
  • Page 9 Receiving a call ConnectClip ConnectClip Phone Description ConnectClip Status Power adapter ConnectClip and phone adapter are connected Phone ringing: Phone indicator and ConnectClip status blinks green. You will hear an incoming call notification in your aids. When the call is connected, you will hear a beep acknowledging that the call is answered –...

  • Page 10: Outgoing Calls Connectclip

    Outgoing calls ConnectClip How to make a call Make sure that you are able to speak into the ConnectClips microphone (A). 1. To make a call press the ConnectClips multibutton briefly (B). The hook is now off and you will hear a dial tone in the hearing aids. The status indicator on the ConnectClip and the phone indicator on the phone adapter will turn steady green.

  • Page 11: Cleaning The Phone Adapter

    Cleaning the Phone Adapter Making a call ConnectClip Phone Description ConnectClip Use a soft, dry cloth to clean the Phone Adapter. Status Power adapter ConnectClip and phone adapter are connected Press the multibutton on the ConnectClip briefly and you will hear a dial tone in the hearing aids Steady Blinking IMPORTANT NOTICE...

  • Page 12: International Warranty

    For further support or tips please check the information on incorrect handling or care, excessive use, accidents, repairs made by an unauthorised www.oticon.global/support party, exposure to corrosive conditions, damage due to foreign objects entering the device or incorrect adjustments are NOT covered by the limited warranty and may void it.

  • Page 13: Additional Information

    Additional information Volume control Use the volume button on the Streamer or ConnectClip to adjust the phone volume level Turn off the phone adapter in the hearing aids. Adjust the volume by pressing up or down briefly. Repeat the brief If you don’t want to receive phone calls to your Streamer, turn off the phone adapter by press for further adjustments.
  • Page 14 0000198499000001 Phone Adapter 2.0 Installation guide...
  • Page 15 Intended use Thank you for choosing our product as your means to better hearing. Phone Adapter 2.0 is intended to be used together with Oticon ConnectClip or Oticon Streamer Pro and Oticon wireless hearing aids. To support your efforts, we have put great care and attention into making sure that your new phone adapter has the highest quality and is easy to use and maintain.
  • Page 16 Contents Package content Phone adapter overview Warnings Installation Connecting the phone adapter to a power outlet Connecting to phone line and landline phone Pairing Streamer Pro to the phone adapter Pairing the ConnectClip to the phone adapter Technical information Description of symbols used on the regulatory packaging label and on the product label Description of symbols used in this booklet IMPORTANT NOTICE...

  • Page 17: Package Content

    Package content Phone Adapter 2.0 – what is in the box The phone adapter box consists of the following elements: Phone Adapter 2.0 Power supply Phone cable (The power supply may vary from country to country) This guide (Installation guide and Instructions for Use)

  • Page 18: Phone Adapter Overview

    Power on, no connection to the Streamer ConnectLine in/out* Pairing with the Streamer For PSTN wall adapter The Streamer is wirelessly connected Incoming call Phone conversation Fault condition (contact your hearing care professional) No light Blinking Steady * For more information please refer to: www.oticon.global/connectline...
  • Page 19 Warnings Warnings You should familiarise yourself fully with the following general warnings and the entire Fire hazards contents of this booklet before using your Phone Adapter. Consult your hearing care pro- • The power source in your Phone Adapter 2.0 has insufficient energy to cause fire fessional if you experience unexpected operations or events with your phone adapter.

  • Page 20: Installation

    Installation Activating the phone adapter for the first time Before you can use the landline phone solution together with your hearing aids, the phone adapter must be connected to a power outlet and the public telephone line. This is a step-by-step guide on how to install the phone adapter. All needed parts for the installation are included in the package.

  • Page 21: Connecting The Phone Adapter To A Power Outlet

    Connecting the phone adapter to a power outlet Box 1 Use the power supply with USB cable from box 1 1. Plug the USB connector into the “power” connector on the phone adapter. 2. Plug the power supply into the mains wall socket or another power source. 3.

  • Page 22: Connecting To Phone Line And Landline Phone

    Connecting to phone line and landline phone Box 2 Place the phone adapter in a suitable spot near your landline phone or base station. 1. Unplug the phone line from the landline phone (or base station).* 2. Plug the phone line from the wall adapter into the phone adapter “IN” connector. 3.

  • Page 23: Pairing Streamer Pro To The Phone Adapter

    Pairing Streamer Pro to the phone adapter The very first time your Streamer is used with the phone adapter, it must be paired to Pairing Streamer Pro the phone adapter. Streamer Pro Streamer Pro Phone Description top status front adapter For pairing: Streamer and 1.

  • Page 24: Pairing The Connectclip To The Phone Adapter

    Pairing the ConnectClip to the phone adapter Status The very first time your ConnectClip is used with the phone adapter, it must be paired to Pairing ConnectClip the phone adapter. ConnectClip ConnectClip Phone Description Status Power adapter For pairing: ConnectClip and 1.

  • Page 25: Technical Information

    Technical information Conditions of Use Home environment Phone Adapter 2.0 contains a wireless transmitter using 2.4 GHz technology. The emission power from Phone Adapter 2.0 is max. 10 dBm EIRP. Operating conditions: • Temperature: +5°C to +40°C Phone Adapter 2.0 complies with international standards concerning radio transmitters, •...
  • Page 26 Notice Note: This equipment has been tested and found to comply with the limits for a Class B The device complies with Part 15 of the FCC Rules and with Industry Canada’s licence- digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide exempt RSSs standards.

  • Page 27: Description Of Symbols Used On The Regulatory Packaging Label And On The Product Label

    Description of symbols used on the regulatory packaging label Japan TELEC label and Japan JATE label T : A12-0209005 - indicates that the device can connect to the telephone network. and on the product label R : 005-100259 - indicates mark for certified radio equipment. Manufacturer The device is produced by the manufacturer whose name and address are stated next Power supply outlet...

  • Page 28: Description Of Symbols Used In This Booklet

    Description of symbols used in this booklet Oticon A/S Warnings Kongebakken 9 Text marked with a warning symbol must be read before using the device. DK-2765 Smørum Manufacturer The device is produced by the manufacturer whose name and address are stated Denmark next to the symbol.
