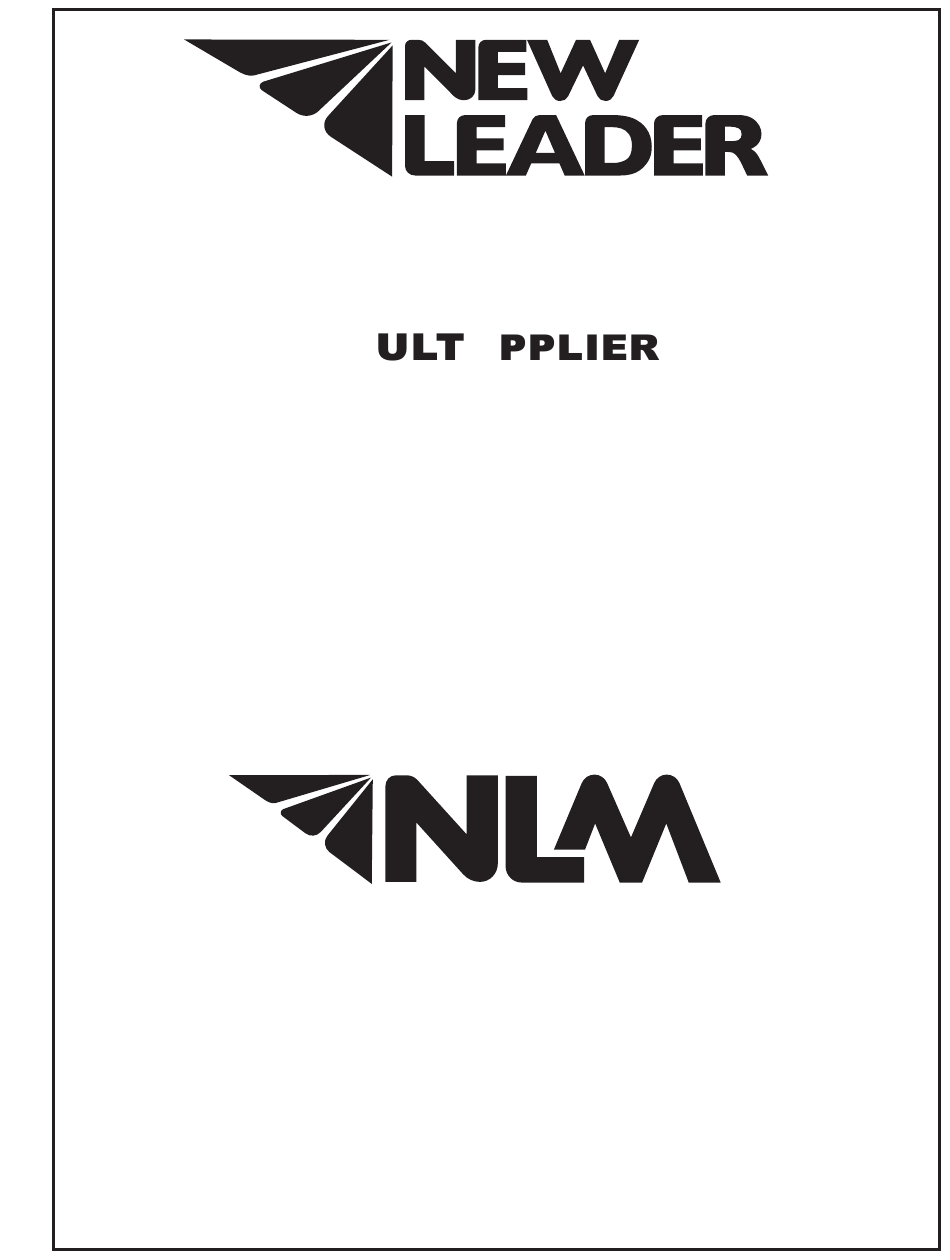

New Leader Guardian L3030G4 MultApplier Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Guardian L3030G4
M
A
Operator's Manual
UNIT SERIAL NUMBER ___________________________
INSERT SERIAL NUMBER__________________________
MANUAL NUMBER: 307369-AA-G
EFFECTIVE 12/2018
1330 76TH AVE SW
CEDAR RAPIDS, IA 52404-7052
PHONE (800) 363-1771 | FAX (319) 286-3350
www.newleader.com
Copyright 2019 Highway Equipment Company, Inc.
Now doing business as New Leader Manufacturing
