NOTE: If local access is desired (see "Local
Access" section), leave the yellow and green wires
(pins 5 and 6) unconnected at the T-Line module.
These will be connected to the CMnet.
3. Replace the power jumper.
4. Enter the channel number, offset, and gain on the
T-Line FB parameter page as listed in the "Channel
Number" section.
ALC part no. CON is a package of 8-wire connectors and
covers (AMP part nos. 641237-8 and 640550-8) which
require a 22 AWG stranded wire. Other connectors are
available by calling your local Amp distributor at 800-
526-5142. The cable wiring configuration is shown
above. The cable should not exceed 50 ft.
NOTE: When making a sensor cable, disregard the
numbers imprinted on the plastic connector.

Using the Enhanced Zone Sensor

Shown in Figure 19, the enhanced zone sensor provides
local setpoint adjust, timed local override, and occupancy
indication.

Local Setpoint Adjust

Use the sensor's left switch to adjust the occupied
setpoints. When this switch is placed in the middle
position, the setpoints specified on the T-Line FB
parameter page are in effect. The switch's left position
lowers the setpoints by an amount specified on the
parameter page (default is 3 degrees). The switch's right
position raises the setpoints by the same amount.
Rev. (29-JUN-99) • TNI v4.7
S E N S O R T -L IN E
T E R M T E R M
1 1
2
2
3 3
4 4
T -L in e M o d u le
5
5
6 6
1 2 3 4 5 6 7 8 7 7
8 8
*
If L o c a l A c c e ss is d e s ir ed , th is
w ire w ill b e + c o m m .
If L o c a l A c c e ss is d e s ir ed , th is
* *
w ire w ill b e - c o m m .

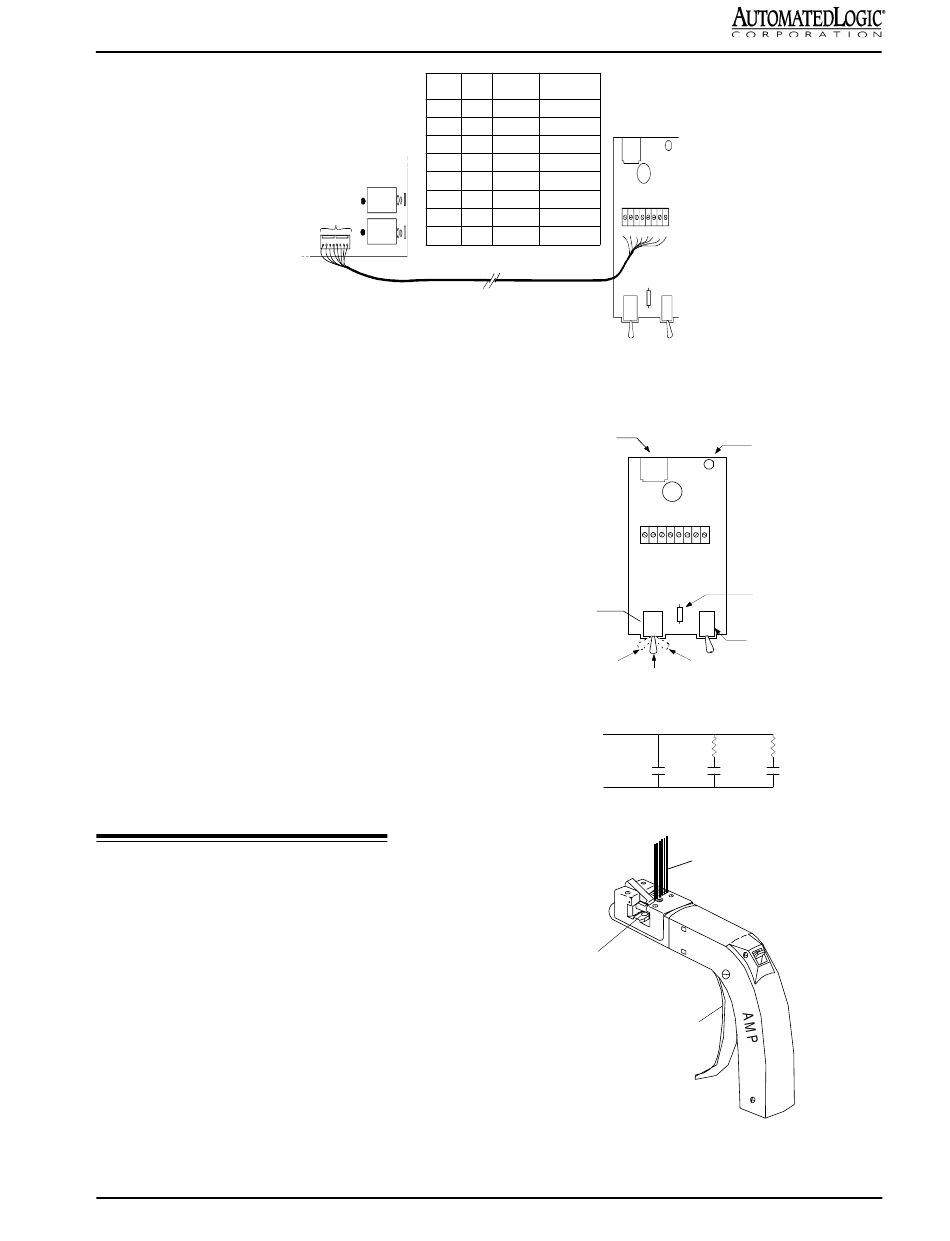

Figure 18: Enhanced Zone Sensor Wiring Configuration
15
W I R E
F U N C T IO N
C O L O R
B L A C K G N D
B R O W N
T H E R M IS T O R
R E D
S W IT C H IN P U T
O R A N G E R S Z + L E D
Y E L L O W N O T U S E D *
R S Z +
G R E E N N O T U S E D **
B L U E 5 V + , L E D P o w er
J1
8 7 6 5 4 3 2 1
W H IT E N O T U S E D
REMOTE
TERMINAL
CONNECTOR
J2
J1
8 7 6 5 4 3 2 1
R3
SW1
LOCAL
SETPOINT
ADJUST
COOLER
NORMAL
SETPOINT
TLO
GND
(pin 1)
+5 V
(pin 3)
Figure 19: Enhanced Zone Sensor Functions
FEED
SLIDE
Figure 20: AMP Crimper (ALC part no. CRIMP)
©1995-99 Automated Logic Corporation
OCCUPIED
INDICATOR
D1
SENSING
SW2
ELEMENT
TIMED
LOCAL
OVERRIDE
WARMER
COOLER WARMER
10k Ohm 22k Ohm
WIRE
CAM
HANDLE
