6.) OPERATION contd...
6.2 Fitting Quick Connectors contd...
STEP 3
NOTE: The connector is supplied
with two sizes of grommet 4-6mm &
6-8mm. The appropriate size should
be selected to fit the cable diameter.

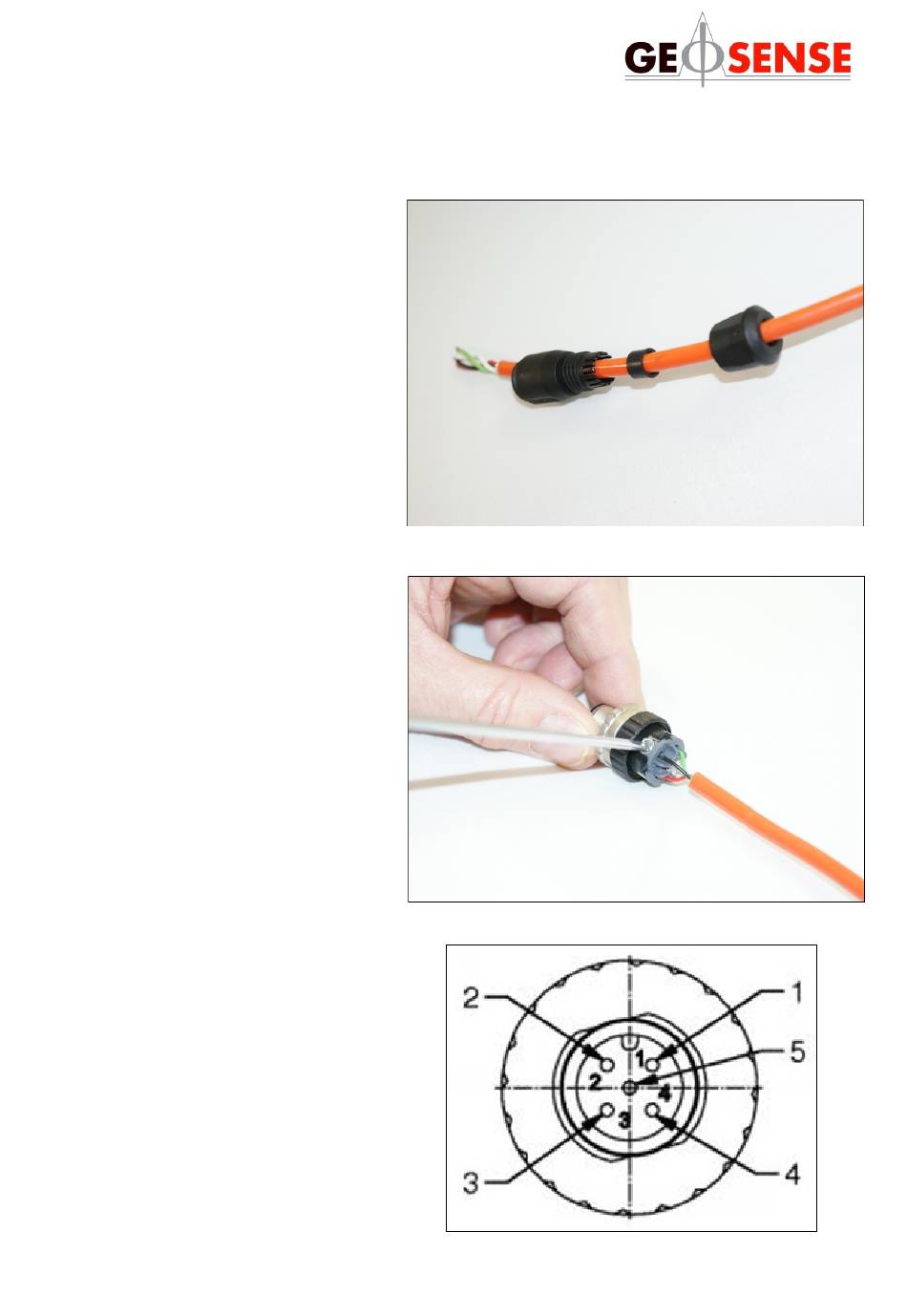

Feed the cable through the locking
nut, grommet and housing
STEP 4
Wire the conductors into the
coupling as shown below
Connector position 1 vibrating wire
Connector position 2 vibrating wire
Connector position 3 thermistor
Connector position 4 thermistor
Connector position 5 shield
