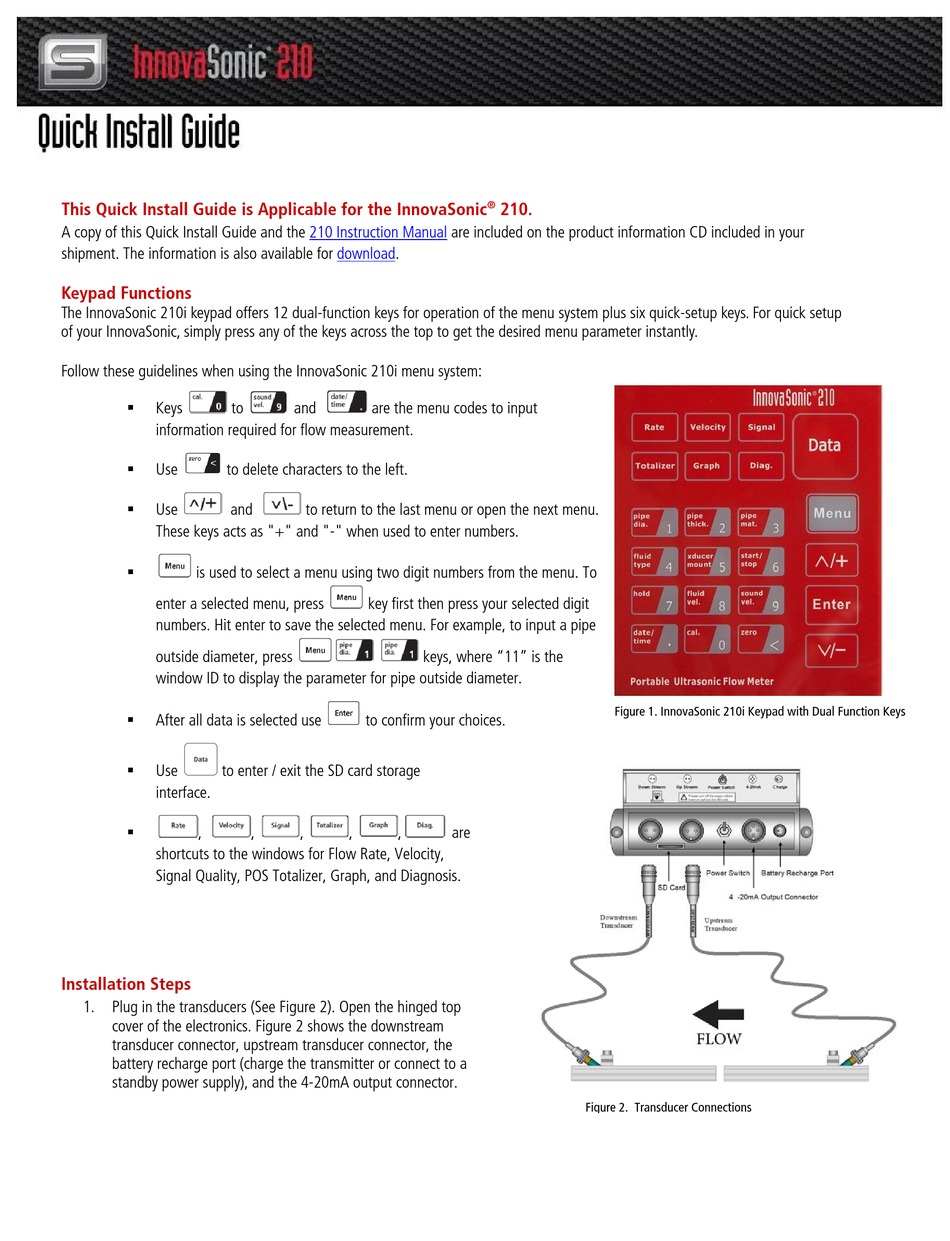

Sierra InnovaSonic 210 Quick Install Manual

This Quick Install Guide is Applicable for the InnovaSonic
A copy of this Quick Install Guide and the
shipment. The information is also available for download.

Keypad Functions

The InnovaSonic 210i keypad offers 12 dual-function keys for operation of the menu system plus six quick-setup keys. For quick setup
of your InnovaSonic, simply press any of the keys across the top to get the desired menu parameter instantly.
Follow these guidelines when using the InnovaSonic 210i menu system:

Keys to
information required for flow measurement.

Use to delete characters to the left.

Use and
These keys acts as "+" and "-" when used to enter numbers.

is used to select a menu using two digit numbers from the menu. To
enter a selected menu, press
numbers. Hit enter to save the selected menu. For example, to input a pipe
outside diameter, press
window ID to display the parameter for pipe outside diameter.

After all data is selected use

Use to enter / exit the SD card storage
interface.

,
shortcuts to the windows for Flow Rate, Velocity,
Signal Quality, POS Totalizer, Graph, and Diagnosis.

Installation Steps

1. Plug in the transducers (See Figure 2). Open the hinged top
cover of the electronics. Figure 2 shows the downstream
transducer connector, upstream transducer connector, the
battery recharge port (charge the transmitter or connect to a
standby power supply), and the 4-20mA output connector.
210 Instruction Manual
and are the menu codes to input
to return to the last menu or open the next menu.
key first then press your selected digit
keys, where "11" is the
to confirm your choices.
, , , ,
®
210.
are included on the product information CD included in your
Figure 1. InnovaSonic 210i Keypad with Dual Function Keys
are
Figure 2. Transducer Connections
