Form 4C Recloser Control
Front Panel Replacement Kit KME4-701
Installation Instructions

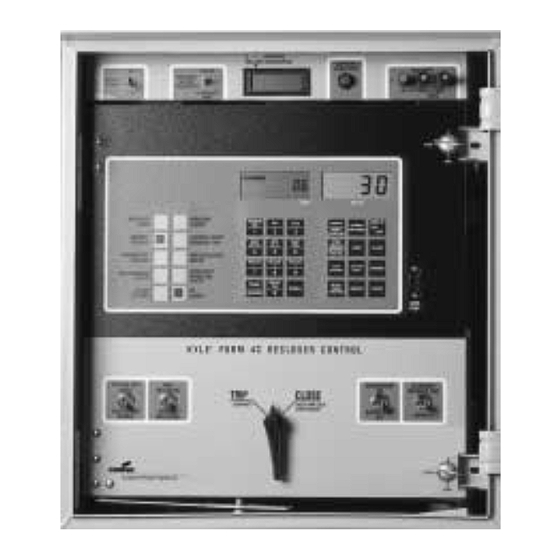

Figure 1.
Kyle
®
Type Form 4C Recloser Control
Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . 2
Hazard Statement Definitions . . . . . . . . . . . . . . . . 2
Product Information . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
February 2002 • New Issue (Supersedes KB083 3/01)
Printed in USA
S280-77-13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Application of New Control Labels . . . . . . . . . . . . 4
Removal of Front Panel Assembly . . . . . . . . . . . . 5
Installation of Control Panel . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service Information
961066KM
. . . . . . . . . . . . . . . . . . 7
1
