Summary of Contents for Cooper SAFEPATH SP4-LOC

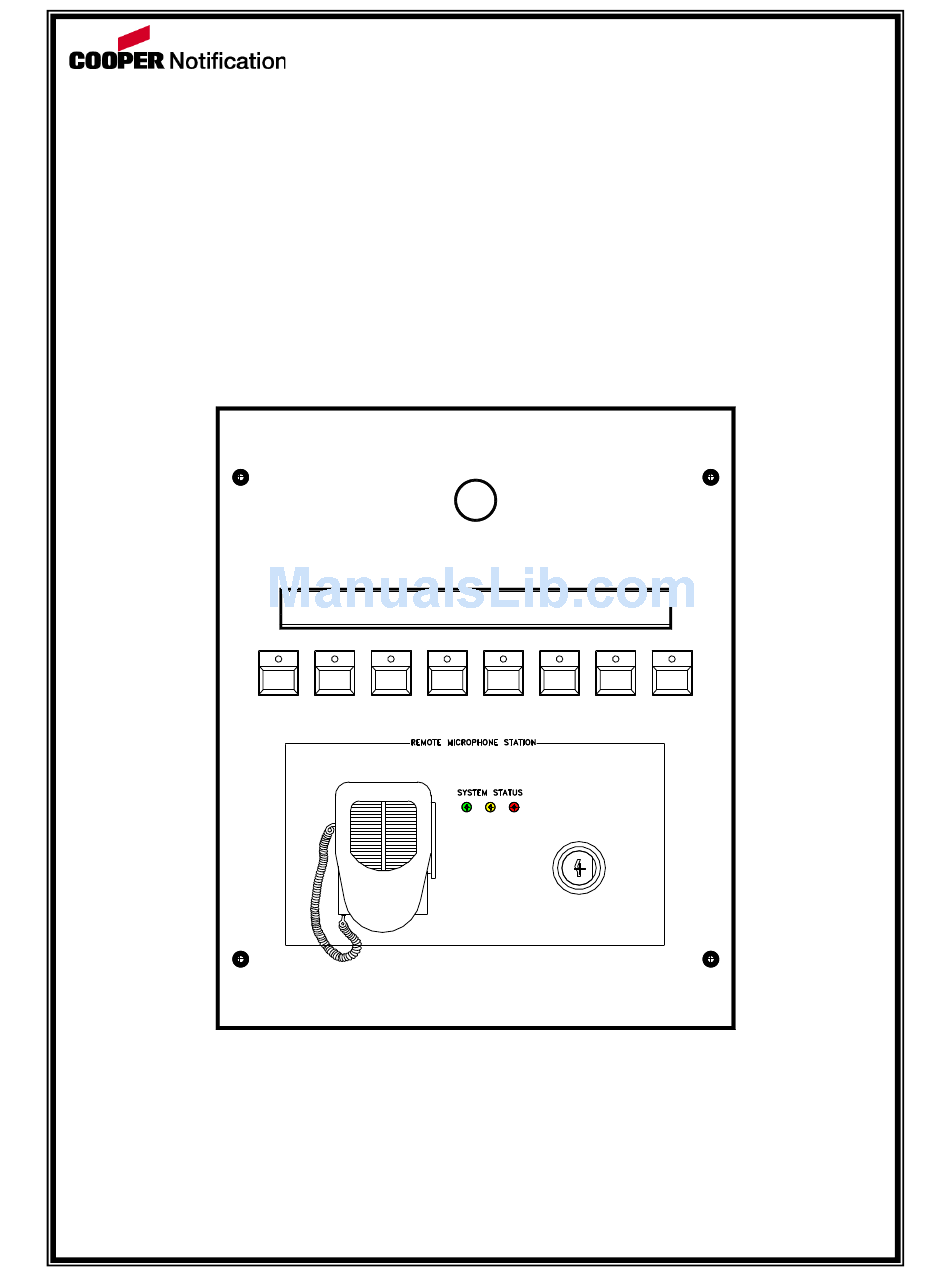

- Page 1 SP4-LOC SAFEPATH REMOTE MICROPHONE AND LOCAL OPERATING CONSOLE INSTALLATION AND OPERATION MANUAL LOCAL OPERATING CONSOLE Part Number: P85173 Rev. B Copyright 2012 Cooper Wheelock Inc., dba Cooper Notification. All rights reserved.
-
Page 2: Notation Conventions
HVAC PUSHBUTTON OPTION IS BEING ADDED, THE CIRCUIT CAN CONTAIN HIGH VOLTAGE THAT CAN CAUSE SERIOUS INJURY OR DEATH TO THE INSTALLER. Additional copies of this manual may be obtained from www.coopernotification.com in the Technical Support section, or from: Cooper Notification 273 Branchport Ave. Long Branch, N.J. 07740... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Mechanical Backbox: 15-1/4 x 14-1/2 x 3.5 in. Dimensions (H x W x D) Surface Front: 15-1/4 x 14-1/2 x 1/8 in. See Figure 1. Flush Front: 16-1/4 x 15-1/2 x 1/8 in. Weight 8 lbs. Finish White Indoor Surface Mount Mounting Indoor Flush Mount... -
Page 4: Panel Door
15.50" 14.50" LOCAL OPERATING CONSOLE 16.25" 15.25" PANEL DOOR BACKBOX OUTLINE TRIM RING 1/2" Figure 1: Outside Dimensions for the SP4-LOC Front Door P85173 B Sheet 4 of 10... - Page 5 MOUNTING Comply with all of the latest applicable codes, regulations, laws, standards, and guidelines. 1. Remove the FRONT DOOR ASSEMBLY from the backbox by removing the eight (8) nuts holding the assembly in place (flush-mount only). 2. Remove the INNER PANEL ASSEMBLY (Figure 2) from the backbox. Figure 2: Inner Panel Assembly 3.
- Page 6 14.50" 9.25" SURFACE FLUSH MOUNT MOUNT HOLES (4) HOLES (8) 15.25" 11.00" 1/4"x1/2" DOUBLE KNOCKOUT (3) TOP, BOTTOM, AND BACK 1/2"/3/4" Figure 3: Mounting Holes for Mounting the Backbox, Flush and Surface 4. Connect the conduit fittings to the desired cable knockouts and run the appropriate pushbutton and SPRM wiring into the backbox. If the optional HVAC pushbutton is installed, run the HVAC wiring through a separate conduit away from the pushbutton and remote microphone wiring.
- Page 7 INSTALLING AND WIRING THE INNER PANEL If applicable, mount and wire the optional HVAC Emergency Shutoff Pushbutton. Connect the pushbutton IN wiring to the terminal blocks (TB2 and TB3) as shown in Figure 4 (SP40S). Connect the pushbutton RET (TB4 and TB5) wiring to the next LOC’s IN pushbutton terminal blocks. Connect 28V wiring to the terminal blocks as shown in Figure 4 (SP40S).
- Page 8 Figure 5: Wiring Diagram SPRM to SP40S Wiring is power limited. Mount the INNER PANEL to the backbox using the four #8-32 truss head screws. Mount the FRONT DOOR to the backbox using the eight washers and #8-32 nuts in the locations shown in Figure 8 (flush-mount only).
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS SP40S Panel AUXILIARY INPUT SUPERVISION JUMPER JP4. REMOVE FOR SUPERVISION. CC/NAC SWITCH SW6 PLACE IN CC POSITION CC/NAC CC/NAC 24V OUT SP40S AUXILIARY INPUT SELECTION JUMPER J4. SELECT 1V POSITION Figure 7: Switch and Jumper Locations on the SP40S for SPRM Operation See Figure 7 for switch and jumper locations. - Page 10 Figure 8: Exploded View of the SP4-LOC 9/12 P85173 B Sheet 10 of 10...
