STEP 5 Continued:
D. Thread a second acorn nut onto the exposed end of the rod. If there is not enough exposed
thread to start the nut or if the rod will not go all the way through the drum, double check to
make sure the drum edges are fitted all the way into the rim of the cap and the flanges are in
the alignment slots. If there is still a problem, loosen the acorn nut on the first end of the tie rod
or press firmly on both endcaps to seat them fully.
E. Repeat steps "c" and "d" with remaining three tie rods and six acorn nuts, connecting
the three remaining pairs of holes in endcaps. When all four rods have been positioned and
secured, tighten all eight acorn nuts using an adjustable wrench at one end and a
wrench at the other. Note: Do not overtighten.
STEP 6:

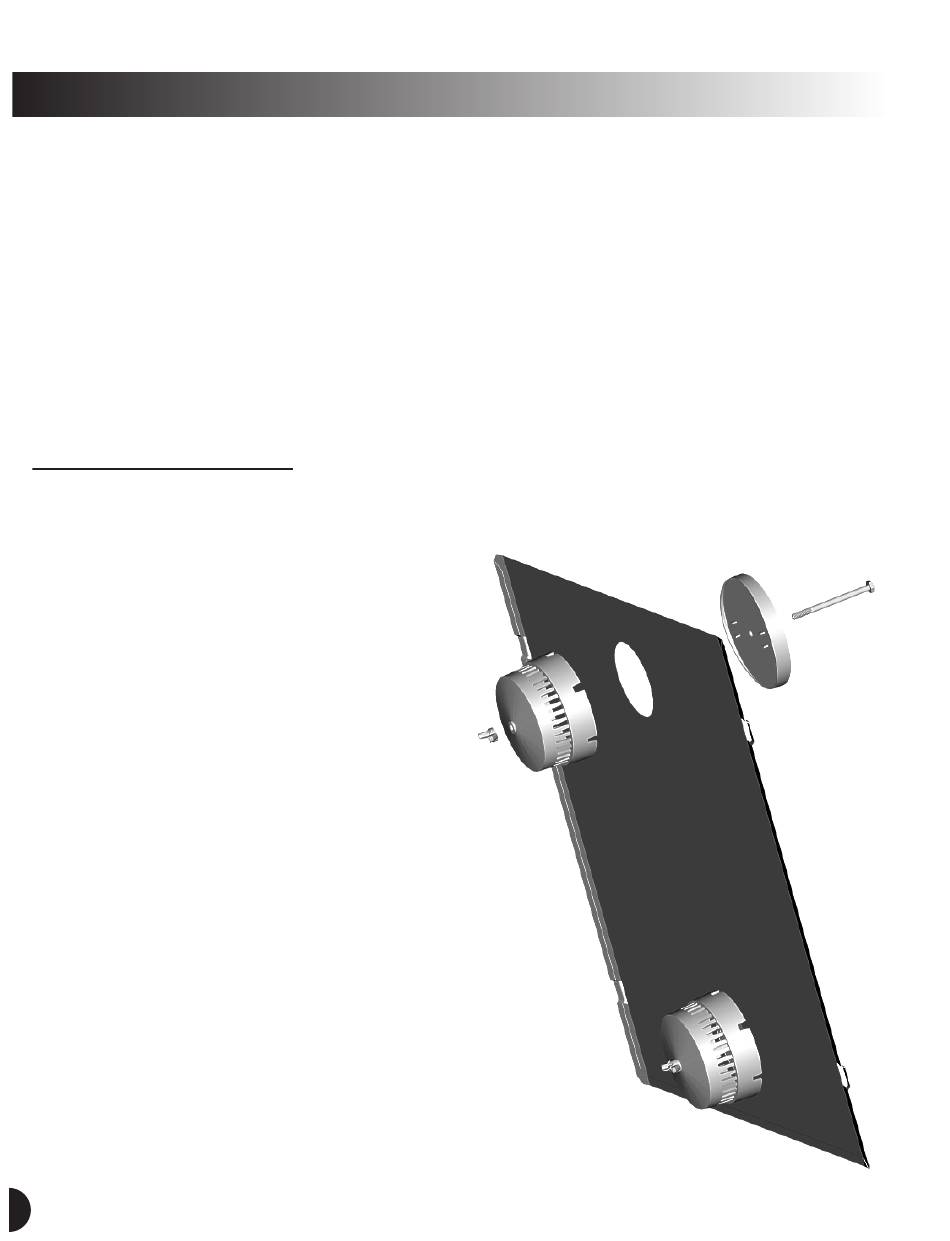

Aerator Assembly

Select:
2 Aerator Outside Sections (item 17)
g
2 Aerator Inside Sections (item 18)
g
1
1
2 Bolts,
/
" x 3
4
g
2 Wing Nuts (item 28)
g
1 Door (item 21)
g
A. Position one Aerator Outside Section on the outside
of the Door.
B. Insert one Bolt through the Aerator Outside Section
and hole in the Door.
C. Slip one Aerator Inside Section over the Bolt on
the inside of the Door, threading a Wing Nut onto
the end of the Bolt until hand hand tight.
Be careful not to overtighten the assembly.
D. Repeat "a", "b" and "c" with second aerator over
the second hole in the Door.
E. Check both aerators to make sure that the curve
of the Door when it's in place on the drum and the
contour of the outer portion of the aerator match,
and then apply slight pressure on Wing Nuts to hold
assembly firmly in place. Do not overtighten.
