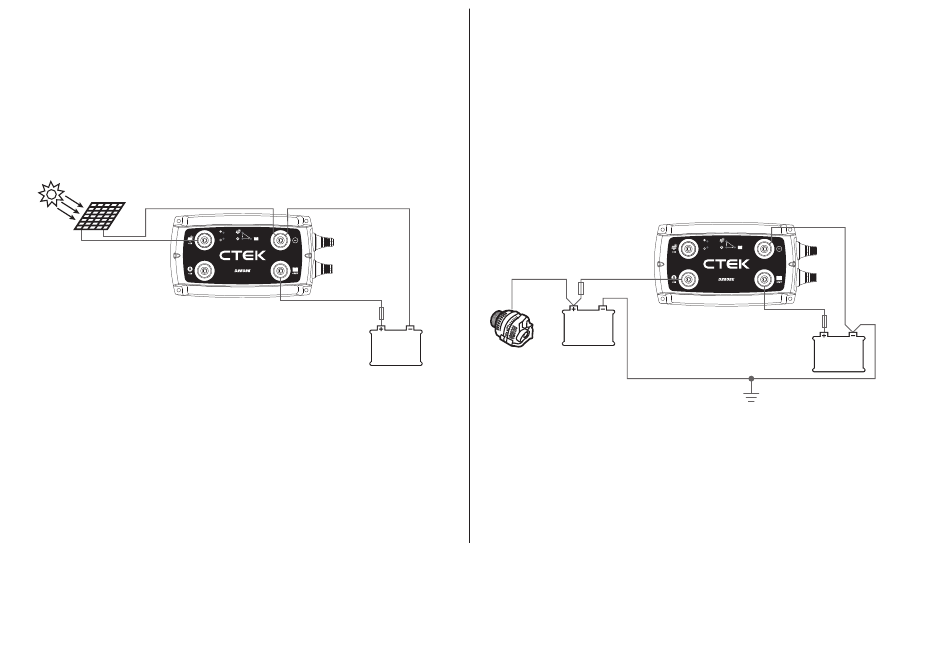

INSTALLATION EXAMPLES

1. Solar panel
PREREQUISITES
Solar panel capable of charging a 40–300Ah
service battery. The D250SE uses MPPT
(Maximum Power Point Tracker) to maximise the
power from a solar panel.
8 • EN
TIP 1
Do not connect two solar panels in series.
Max. input voltage 23V.
*
SERVICE
BATTERY
*See "CABLE AND FUSE REQUIREMENTS"
2. Small service battery
PREREQUISITES
A dual battery system where the D250SE
charges a 40–300Ah service battery from a
generator which also charges a starter battery.
It is advantageous to use this installation when:
• The alternator is unable to deliver the desired
charging voltage.
*
STARTER
BATTERY
TIP 2
If the alternator has external voltage detection
for the service battery, the voltage detection
wiring must be connected to the starter battery.
TIP 3
Complement the D250SE with a
SMARTPASS 120S if the service battery
capacity is greater than 100Ah or has parallel
consumption while charging is in progress. This
reduces the charging time.
*
SERVICE
BATTERY
*See "CABLE AND FUSE REQUIREMENTS"
