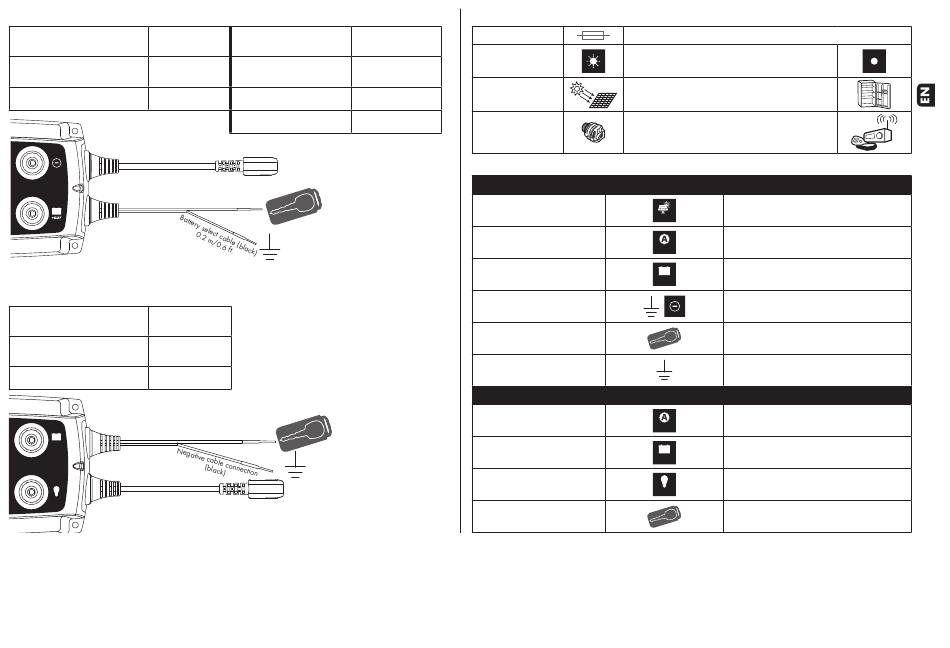

SETTINGS D250SE
Smart alternator cable Type of
(red) alternator
Conventional
Not connected
alternator
Connected Smart alternator
Temperature sensor
Smart alternator cable (red)
SYMBOLS
SETTINGS SMARTPASS 120S
Smart alternator cable Type of
(red) alternator
Conventional
Not connected
alternator
Connected Smart alternator
Smart alternator cable (red)
+OUT
Temperature sensor
+OUT
Battery select cable
Battery type
(black)
Not connected NORMAL
Earth AGM
+12V LITHIUM-ION
Ignition signal, +15 clamp
(DIN 72552)
Chassis/Earth
Ignition signal, +15 clamp
(DIN 72552)
Chassis/Earth
SYMBOLS AND TERMINALS
Fuse
Flashing lamp
Solar panel
Alternator
Connection D250SE
Input Solar panel
Input Alternator
Output Service battery
Earth Connection
Smart alternator cable (red)
Battery select cable (black)
Connection SMARTPASS 120S
Input Alternator
Output Service battery
Output Consumers
Smart alternator cable (red)
See "CABLE AND FUSE REQUIREMENTS"
Continuously lit lamp
Non critical consumer
Critical consumer
Connected to
Solar panel see "TECHNICAL
SPECIFICATION"
+IN
• Starter battery
• Input Alternator SMARTPASS 120S via
+IN
connector plate or cable
• Service battery
• Output Service battery SMARTPASS 120S
+OUT
• Chassis/Earth
• Solar panel (-)
• SMARTPASS 120S (-)
See "SETTINGS D250SE"
See "SETTINGS D250SE"
Connected to
• Starter battery
• Input Alternator D250SE via connector
+IN
plate or cable
Output Service battery D250SE
+OUT
Non-critical consumers
+OUT
See "SETTINGS SMARTPASS 120S"
