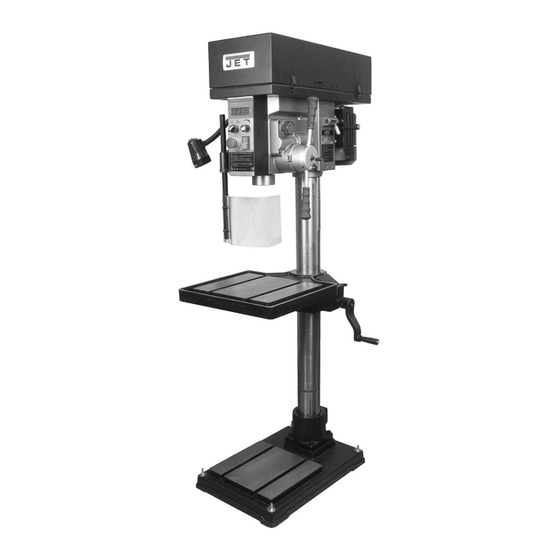

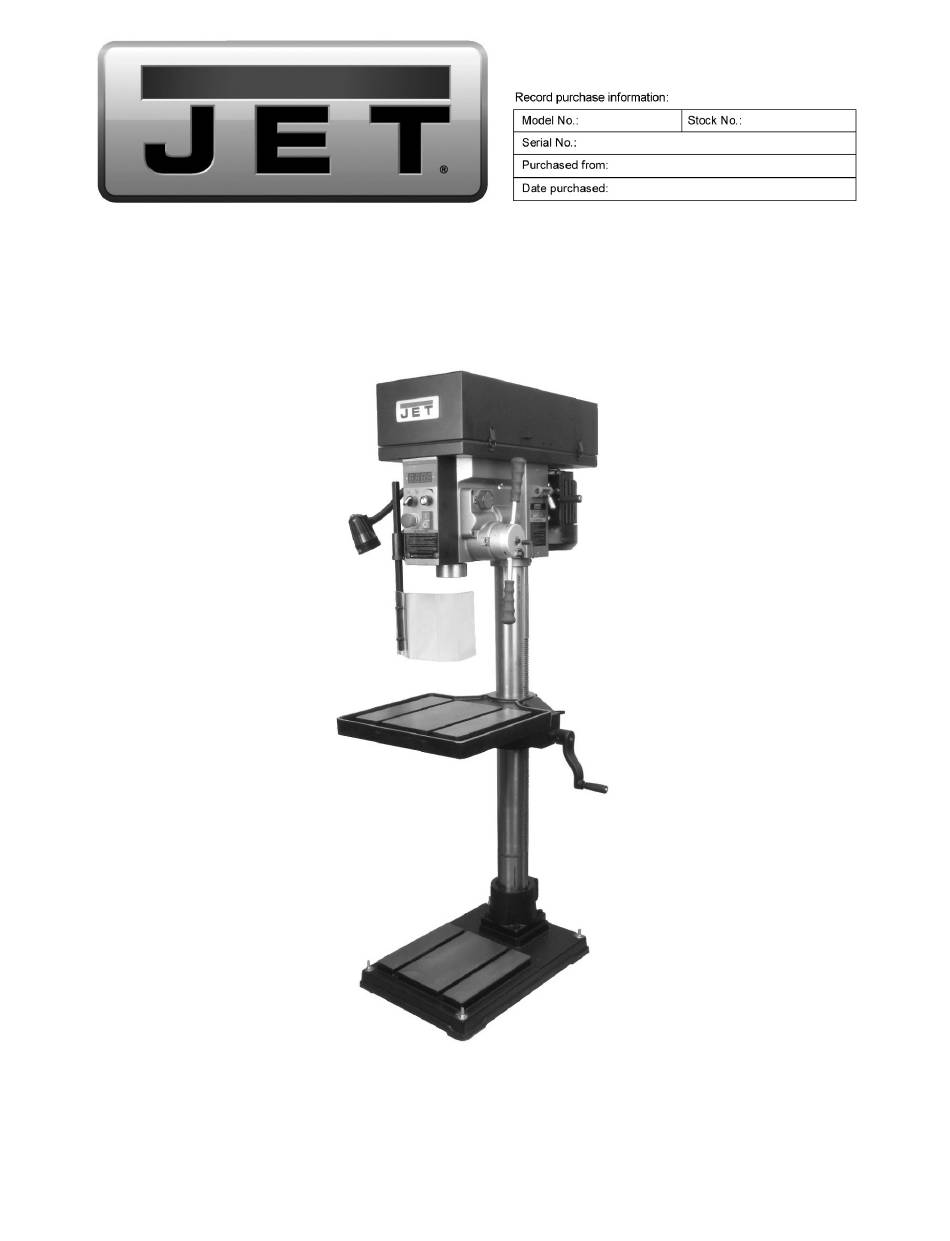

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 20” EVS Drill Press with Power Feed Models JDPE-20EVS-PDF, JDPE-20EVSC-PDF 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-354250 Ph.: 800-274-6848 Edition 2 06/2019 www.jettools.com Copyright © 2019 JET...
-
Page 2: Important Safety Instructions
result in severe injury from breakage of eye protection. 14. Wear ear protectors (plugs or muffs) during extended periods of operation. 1.0 IMPORTANT SAFETY 15. Do not overreach. Keep proper footing and balance at all times. INSTRUCTIONS 16. Do not perform any set-up work while machine is operating. - Page 3 Drill press head and table shall be securely Avoid contact with coolant or cutting fluids, locked to the column before operating the drill especially guarding the eyes. press. This must always be checked prior to starting the machine. WARNING: This product can expose you to chemicals including lead which is known to the The drill press should be anchored to the floor State of California to cause cancer and birth...
-
Page 4: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 5: Table Of Contents
11.0 Replacement Parts ............................. 16 11.1.1 JDPE-20EVSC-PDF (Clutch) Head Assembly – Exploded View ............17 11.1.2 JDPE-20EVS-PDF (Step Pulley) Head Assembly – Exploded View ........... 18 11.1.3 JDPE-20EVS series Electric Box Assembly – Exploded View ............19 ... -
Page 6: Specifications
4.0 Specifications Table 1 Model number JDPE-20EVS-PDF JDPE-20EVSC-PDF Stock number 354250 354251 Machine type Step pulley model Clutch model Motor and Electricals Motor type Totally enclosed, fan cooled, induction Horsepower 1.5 HP Phase 3 Phase Voltage 230 V Cycle 60 Hz Listed FLA (full load amps) 4.6 A... -
Page 7: Mounting Hole Centers (All Models)
L = length, W = width, H = height, D = depth The above specifications were current at the time this manual was published, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 8: Set-Up And Assembly
This machine must be properly grounded to help prevent electrical shock and possible fatal injury. IMPORTANT: The JDPE-20EVS-PDF series Drill Presses operate on single phase, 115 volt Figure 5-1 incoming power. Inspect contents of crate for shipping damage. -
Page 9: Grounding Instructions
6.1 GROUNDING INSTRUCTIONS This machine must be grounded. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with electric cord having equipment-grounding conductor. -
Page 10: Tool Installation/Removal
If these are not kept clean, taper or arbor will not “seat” properly in spindle and may drop out unexpectedly. Figure 7-2 (step pulley model JDPE-20EVS-PDF) Insert MT3 tool into spindle. If inserting drill 7.3.2 JDPE-20EVSC (clutch model) -
Page 11: Operation
Digital readout (F). Shows spindle 8.0 Operation (revolutions per minute). Spindle rotation switch (G). Selects spindle 8.1 Precautions rotation direction. Use reverse to retract a tap or for left-hand thread tapping. The following precautions must be observed in order to avoid harm to operator or damage to drill Spindle speed control (H). -
Page 12: Powerfeed Operation
Rotate scale counterclockwise all the way until specific tool manufacturer for more detailed it stops at “0”. information. 8.7.1 Drilling speeds Loosen lock handle (A Use feed handle (B, Figure 8-1) to lower bit to The speed of a drill is usually measured in terms of desired depth based on reference mark. -
Page 13: User-Maintenance
8.7.4 Speeds for high speed steel drills 9.0 User-maintenance Speed Material (SFPM) 9.1 General maintenance Alloy Steel — 300 to 400 Brinell 20-30 Stainless Steel 30-40 After each use, wipe down the machine with a Automotive Steel Forgings 40-50 clean rag and apply a light coat of oil to Tool Steel, 1.2C 50-60 exposed metal surfaces to inhibit rust. -
Page 14: Lubrication Points
9.3 Lubrication points Regularly scheduled maintenance is crucial to ensure a long service life for your machine. The following are recommendations and may vary based upon frequency of use. Note: Ball bearings are pre-lubricated and sealed, and require no further attention. Disconnect machine from power before lubricating. Refer to Figures 9-1 and 9-2. -
Page 15: Troubleshooting Jdpe-20Evs-Pdf Series Drill Presses
10.0 Troubleshooting JDPE-20EVS-PDF series Drill Presses Symptom Possible Cause Correction * E-stop still engaged. Release E-stop by rotating button clockwise. Disconnected from power. Check plug connection. Check if branch circuit breaker has been tripped, or fuse blown. Reset breaker or replace fuse. -
Page 16: Replacement Parts
Number of your machine available when you call will allow us to serve you quickly and accurately. Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 17: Jdpe-20Evsc-Pdf (Clutch) Head Assembly - Exploded View
11.1.1 JDPE-20EVSC-PDF (Clutch) Head Assembly – Exploded View... -
Page 18: Jdpe-20Evs-Pdf (Step Pulley) Head Assembly - Exploded View
11.1.2 JDPE-20EVS-PDF (Step Pulley) Head Assembly – Exploded View... -
Page 19: Jdpe-20Evs Series Electric Box Assembly - Exploded View
11.1.3 JDPE-20EVS series Electric Box Assembly – Exploded View... -
Page 20: Jdpe-20Evs Series Down Feed Assembly - Exploded View
11.1.4 JDPE-20EVS series Down Feed Assembly – Exploded View... -
Page 21: Jdpe-20Evs Series Column & Table Assembly - Exploded View
11.1.5 JDPE-20EVS series Column & Table Assembly – Exploded View... -
Page 22: Jdpe-20Evs Series Drill Presses - Parts List
34 ..TS-1540071 ........ Hex Nut ............. M10 ....... 1 35 ..JDPE20EVS-PDF-35 ....Pulley Guard Assembly ..............1 36 ..JET-138 ........JET Logo ............ 138x57mm ....1 39 ..JDPE20EVS-PDF-39 ....Hex Nut (Step Pulley only) ......5/8" ........ 1 40A .. - Page 23 Index No. Part No. Description Size 59 ..TS-2246102 ........ Socket Hd Button Screw ......M6-1.0x10L ....2 60 ..JDPE20EVS-PDF-60 ....Plastic Plug ..........Ø12 ......2 63 ..GHD20PF-97 ......C-Retaining Ring, Ext ........ S12 ....... 2 64 ..JDPE20EVS-PDF-64 ....Motor Bracket Handle ..............1 65 ..
- Page 24 103-33 ... JDPE20EVSPDF103-33 ..... Terminal Support Plate ..............1 104 ..JDPE20EVS-PDF-104 ....Snap Bushing ..........NB1419 ......1 120 ..LM000379 ........ID Label, JDPE-20EVS-PDF ............1 ....LM000380 ........ID Label, JDPE-20EVSC-PDF ............1 121 ..JDPE20EVSC-PDF-121 ..... Bearing Bracket (Clutch Only) ............1 122 ..
- Page 25 Index No. Part No. Description Size 166A ..JDPE20EVS-PDF-LEDA..... Led Assembly (#163,165,166) ....115V with Plug ....1 167 ..JDPE20EVS-PDF-167 ....Cable Clip ..................1 168 ..TS-1482011 ........ Hex Cap Screw .......... M6-1.0x10L ....1 401A ..JDPE20EVS-PDF-401A....Power Down Feed Compound Assembly ........1 401-1 ..
- Page 26 Index No. Part No. Description Size 403-14 ... 2450095 ........Clutch Nut ..................1 404 ..GHD20PF-40 ......Screw ............3/16"-18x3/8"L ....1 407A ..JDPE20EVS-PDF-407A....Clutch Handle Assembly (#407-1~407-12,422,423).. Inch ....1 407-1 ..2450087A ........Clutch Bushing ................. 1 407-2 ..
-
Page 27: Electrical Connections - Jdpe-20Evs Series
12.0 Electrical connections – JDPE-20EVS series... -
Page 28: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®...
