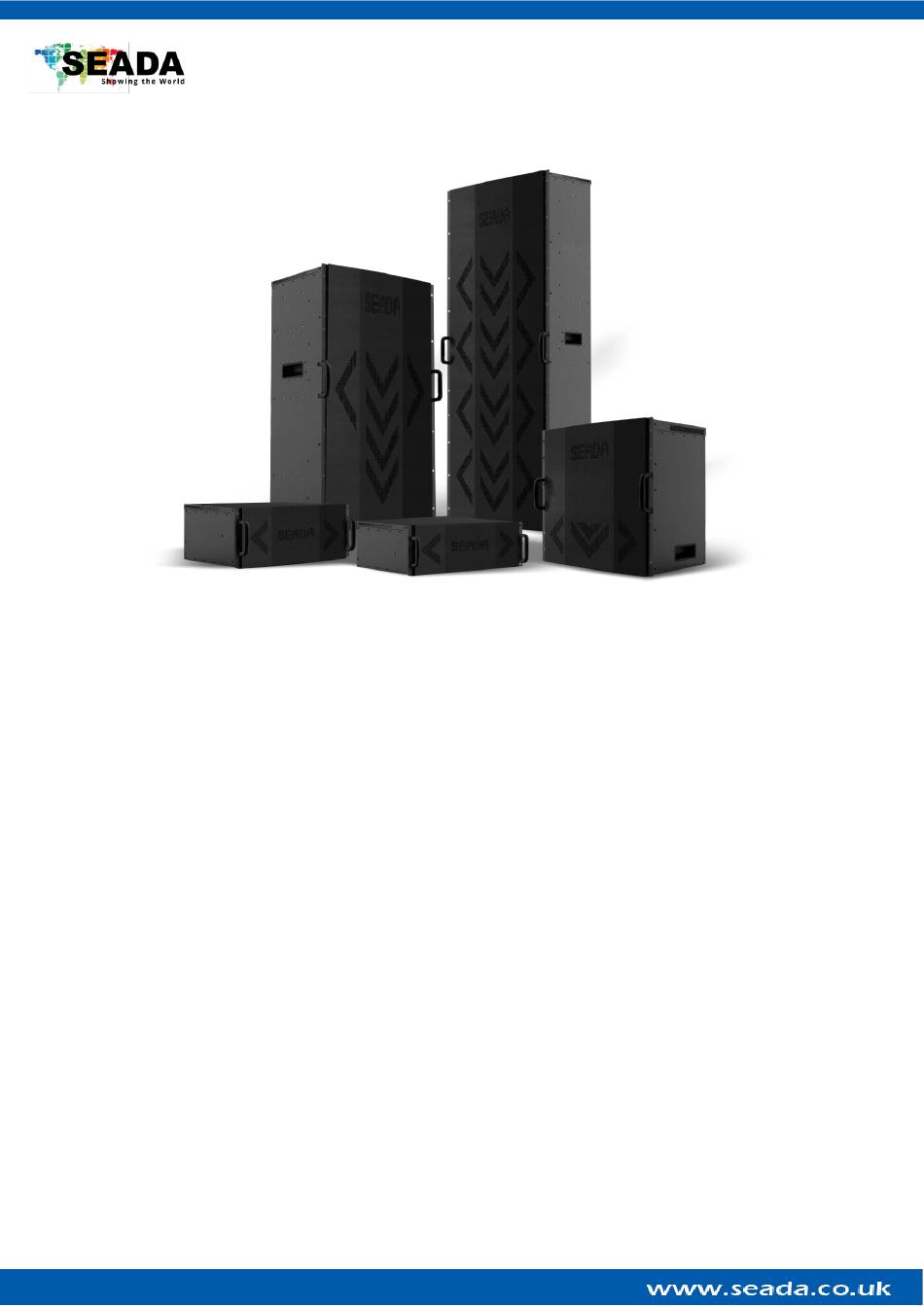

SolarWall Pro Controller Quick Start Guide
This quick start guide provides basic instructions for setting up SEADA SolarWall Pro video wall
controllers. For additional information about how to use the controllers, please see the User
Manual, which is available on the CD included in this package.
Setup Steps
1. Verify the Package Contents
4. Software Installation & IP Setup on Control PC
Please verify the package contents against the Packing List (Document No. SD-OP-005)
If any of the items in packing list is missing, please contact your reseller.
Document No.
SD-MA-020
Document Version:
01
1. Verify the Package Contents
Advertisement
Table of Contents
Related Manuals for Seada SolarWall Pro Series
Summary of Contents for Seada SolarWall Pro Series
- Page 1 SolarWall Pro Controller Quick Start Guide This quick start guide provides basic instructions for setting up SEADA SolarWall Pro video wall controllers. For additional information about how to use the controllers, please see the User Manual, which is available on the CD included in this package.
- Page 2 SolarWall Pro Controller Quick Start Guide 2. Hardware Overview Model: SWP02 (2U Chassis) Model: SWP04 (4U Chassis) 4 5 6 7 4 5 6 7 Model: SWP10 Model: SWP16 1. Slots for video input cards 2. Hybrid slots for either output or input cards 3.
- Page 3 3.2. Basic Connection Connect the supplied power cable from the controller (Figure 1-3) to a power outlet. Connect the SEADA video wall controller (Figure 1-5) to the control PC via Ethernet cable. 3.3. Connect Outputs to Displays Connect the controller outputs to the video wall displays using the appropriate cables or adapters (not supplied).
- Page 4 SolarWall Pro Controller Quick Start Guide 3.4. Connect Input Sources to the Controller Connect the Input sources to the SEADA video capture cards using the appropriate cables and adapters (not supplied). SEADA Technology offers a comprehensive range of capture cards for use in our video wall controllers.
- Page 5 SolarWall Pro Controller Quick Start Guide 4. Software Installation & IP Setup on Control PC ❖ Insert the SEADA Software CD into your control PC’s CD-ROM drive to begin the installation. Double click the SolarWall Pro management software icon in software folder to start the installation.
- Page 6 SolarWall Pro Controller Quick Start Guide 5. Configuration of Video Wall Management Software Step1 Switch on the SW Pro controller • One long beep sound in a few seconds after the power on indicates the controller has finished its initialisation •...
- Page 7 SolarWall Pro Controller Quick Start Guide Step5 Double click on video wall icon to open this very video wall management interface 1. Preview is built in on SWPro controllers The default setting for Preview is off, users need to switch on the preview in order to preview all the inputs and video wall...
- Page 8 SolarWall Pro Controller Quick Start Guide 6. SWPro Management Software Brief Introduction 3.2. IP Streaming Setup 1. Toolbar 3.3. Preset Layout 1.1. Device 3.4. Loop Setup 1.2. Walls 4. Input Signals and Preset Layout Preview Bar 1.3. System 2. Video Wall Display area 5.
