Seada G4K Pro Quick Start Manual

Note
1. Do not fix the device to any surface which is a heat source to avoid over heating
2. Do not cover the surface or ventilation grills of the device to avoid over heating

1. Verify the package contents

Please verify the package contents against the List Below
1. G4K Pro Controller
2. Power Adapter
3. Ethernet Cable
If any of the items in the packing list is missing, please contact your reseller.

2. Set up the G4K Pro

Power up the G4K controller and connect the input and outputs to correct devices.
1 2
6 7
A
Figure 2
to 'Use the following IP address' to set up a static IP address of TCP/IPv4 in Ethernet Properties
➢ IP address: any address between 192.168.1.2 and 192.168.1.254 except the address
which has been taken by the G4K Pro
➢ Subnet mask: 255.255.255.0, Default Gateway: 192.168.1.1
•
Once the control PC IP address having been set up, connect PC to either one of RJ45 ports of G4K
Pro controllers via a network cable and then press the Connect button to connect the device.
SD-MA-016
G4K Pro Quick Start Manual
1
1
1
Model: G4KPro-HDMI
9
3 4
9
8
Figure 1
3.
Install the G4K Pro management software from the disk
Figure 1 Users will have the software UI as left.
4.
The default IP address for G4K Pro controller is
192.168.1.25. Users need to change the IP address of
control PC to the same IP group of G4K Pro.
•
4. Quick Start Guide (SD-MA-016)
5. Audio Cable
6. Software & Documentation User CD

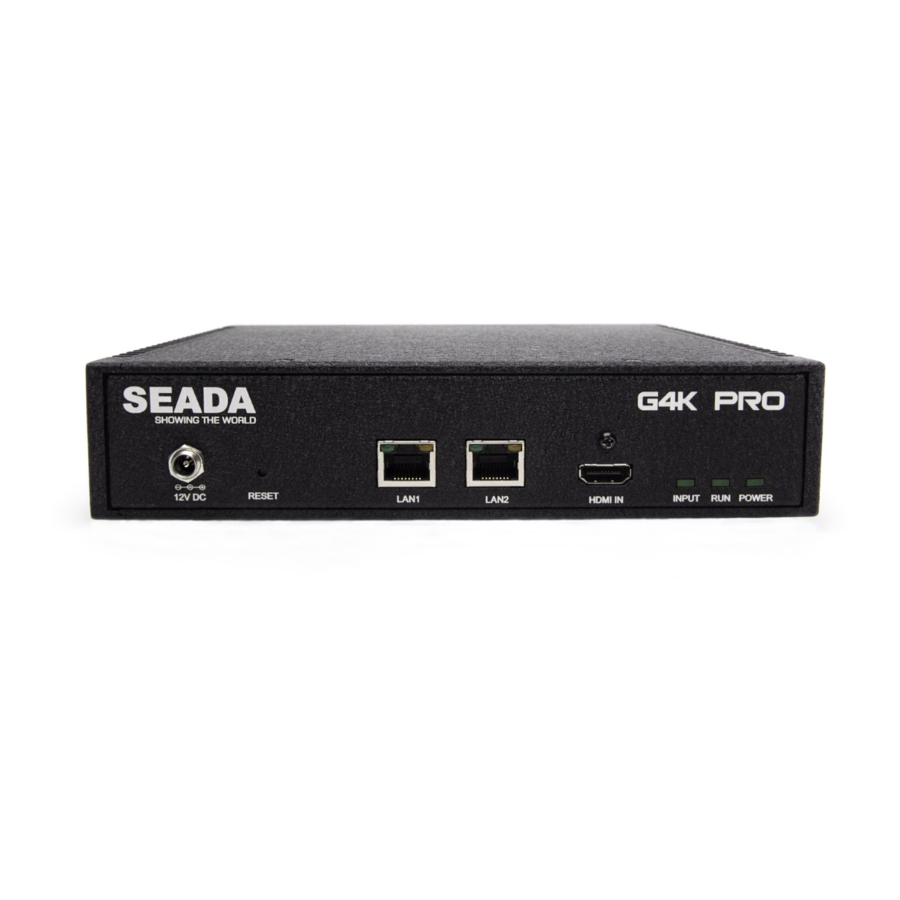

1. Lockable Power Supply
2. Reset Button
• Back to Factory Settings
• Press+hold for 3 seconds
3. RJ45 Ethernet Ports
4. HDMI Input Port
5. Status Lights
5
6. Audio Output Port
7. HDMI Output Ports
8. Daisy Chain HDMI Ports
• To Other G4K Pro Units
9. Screw holes for Lockable
HDMI cables
• Please take the cover screws
out before use

Install the software on control PC

Connect through IP in 'Device'
Change the 'Obtain an IP address automatically'
1
1
1
V04
