Seada DS2 Quick Start Manual

Note

1. Do not fix the device to any surface which is a heat source to avoid over heating
2. Do not cover the surface or ventilation grills of the device to avoid over heating

1. Verify the package contents

Please verify the package contents against the List Below
•

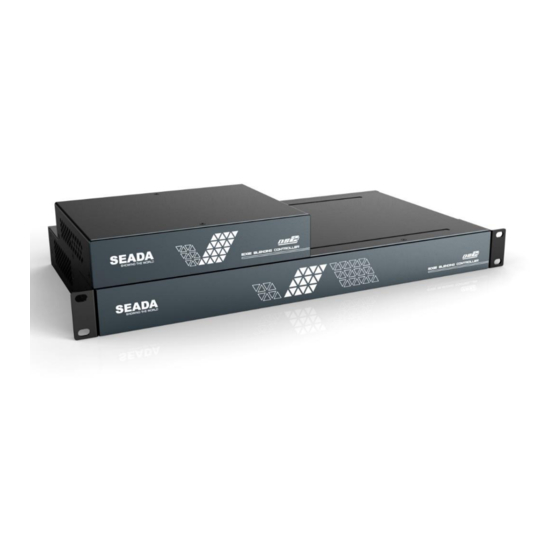

DS2 Edge Blending Controller
•
DS2 Quick Start Manual
•
Download Guide Card

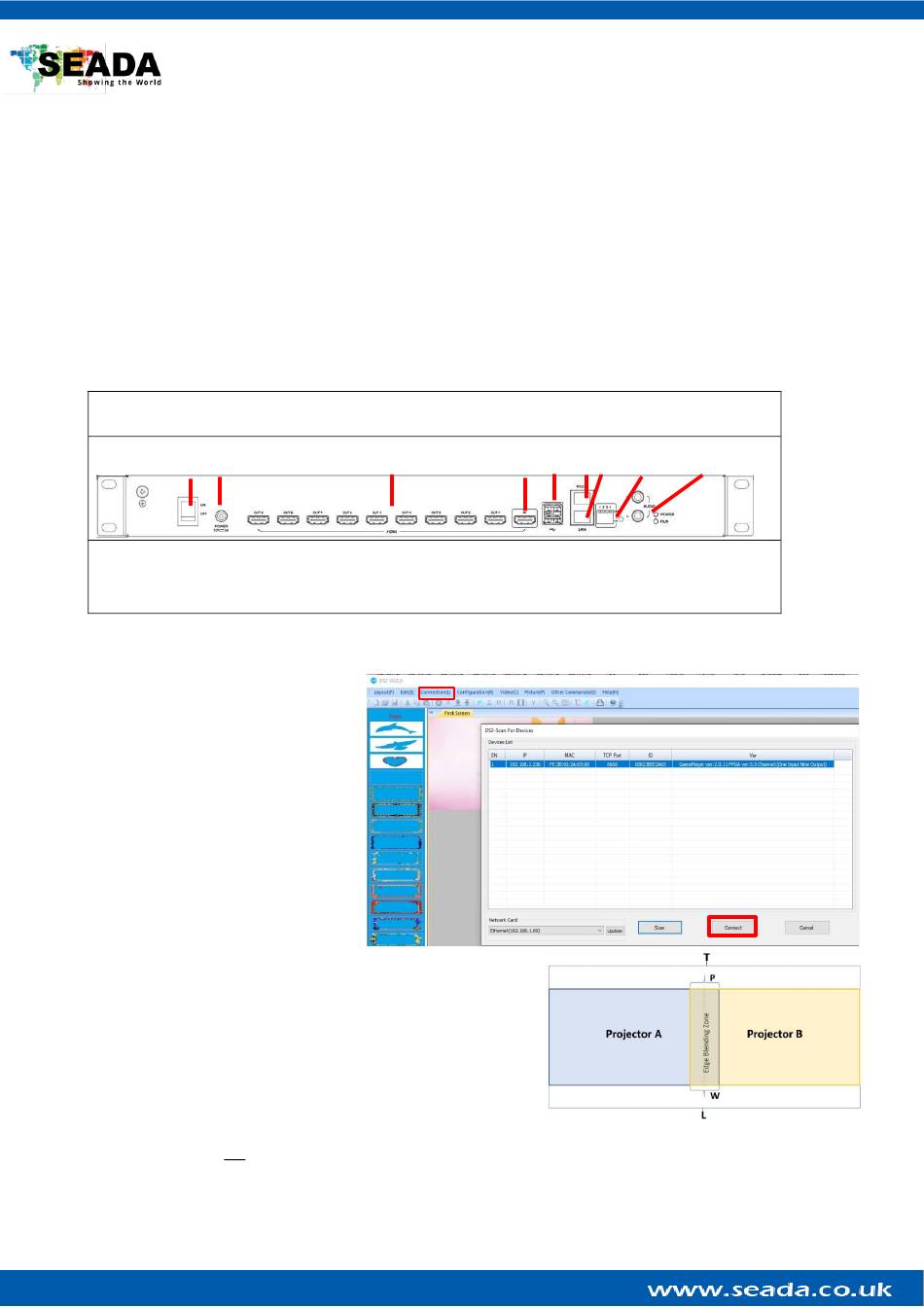

2. Set Up the DS2:

Power up the DS2 controller and connect the input and outputs to correct devices.
❶ ❷
1 – Power Switch
2 – Power Connector
3 – HDMI Outputs

3. Run the software on control PC and connect through Network:

From the Connection tab select Player
Connection Setting. When scan is
finished, choose the device from the
list, and click Connect.
Note:
The default IP address for DS2 is
192.168.1.236. Users need to change
the IP address of the control PC to the
same network segment as the DS2.

4. DS2 System Setup

In Configuration tab select System Setup to commence a 3 step
Edge Blending process.
Before you start Edge Blending Calculate the Edge Blending Width
Use the equation below:
����
W =
��
SD-MA-030
DS2 Quick Start Manual
1
1
1
DS2
❸
4 – HDMI Input
5 – USB 3.0 Ports
6 – RS232 RJ45 Port
W: Edge Blending overlap width
L: Length of the projection screen
•
Power Supplier
•
Ethernet Cable
•
RS232 RJ45 to Serial Port Cable
❹ ❺ ❻❼ ❽
7 – Ethernet RJ45 Port
8 - Dipswitches
9 – RCA Audio Output
T: Total Pixels of the projection
P: Total Pixels of Edge Blending zone
1
1
1
❾
V01
