Seada G24-HDMI Quick Start Manual

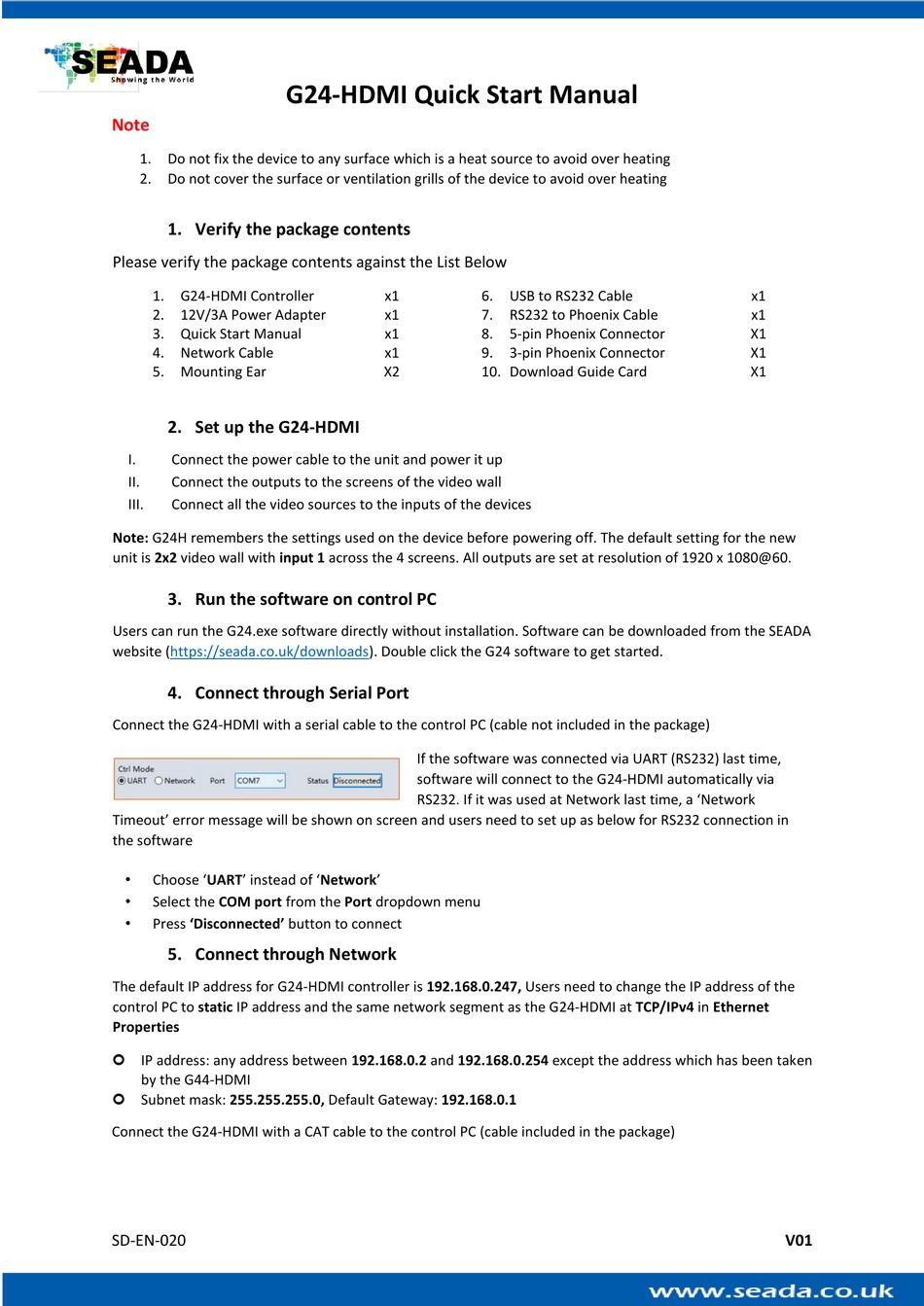

G24-HDMI Quick Start Manual
Note
1. Do not fix the device to any surface which is a heat source to avoid over heating
2. Do not cover the surface or ventilation grills of the device to avoid over heating

1. Verify the package contents

Please verify the package contents against the List Below

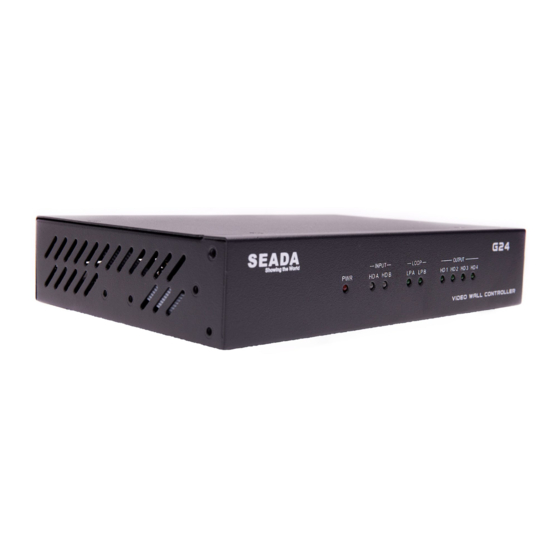

1. G24-HDMI Controller
2. 12V/3A Power Adapter
3. Quick Start Manual
4. Network Cable
5. Mounting Ear

2. Set up the G24-HDMI

I. Connect the power cable to the unit and power it up
II. Connect the outputs to the screens of the video wall
III. Connect all the video sources to the inputs of the devices
Note: G24H remembers the settings used on the device before powering off. The default setting for the new
unit is 2x2 video wall with input 1 across the 4 screens. All outputs are set at resolution of 1920 x 1080@60.

3. Run the software on control PC

Users can run the G24.exe software directly without installation. Software can be downloaded from the SEADA
website (https://seada.co.uk/downloads). Double click the G24 software to get started.

4. Connect through Serial Port

Connect the G24-HDMI with a serial cable to the control PC (cable not included in the package)
Timeout' error message will be shown on screen and users need to set up as below for RS232 connection in
the software
•
Choose 'UART' instead of 'Network'
•
Select the COM port from the Port dropdown menu
•
Press 'Disconnected' button to connect

5. Connect through Network

The default IP address for G24-HDMI controller is 192.168.0.247, Users need to change the IP address of the
control PC to static IP address and the same network segment as the G24-HDMI at TCP/IPv4 in Ethernet
Properties
 IP address: any address between 192.168.0.2 and 192.168.0.254 except the address which has been taken
by the G44-HDMI
 Subnet mask: 255.255.255.0, Default Gateway: 192.168.0.1
Connect the G24-HDMI with a CAT cable to the control PC (cable included in the package)
SD-EN-020
x1 6. USB to RS232 Cable
x1 7. RS232 to Phoenix Cable
x1 8. 5-pin Phoenix Connector
x1 9. 3-pin Phoenix Connector
X2 10. Download Guide Card
If the software was connected via UART (RS232) last time,
software will connect to the G24-HDMI automatically via
RS232. If it was used at Network last time, a 'Network
x1
x1
X1
X1
X1
V01
