InfraTec Operating Instructions Manual page 99

Operating Instruction for VarioCAM®
12 Software IRBIS®
Tab "Global Properties"

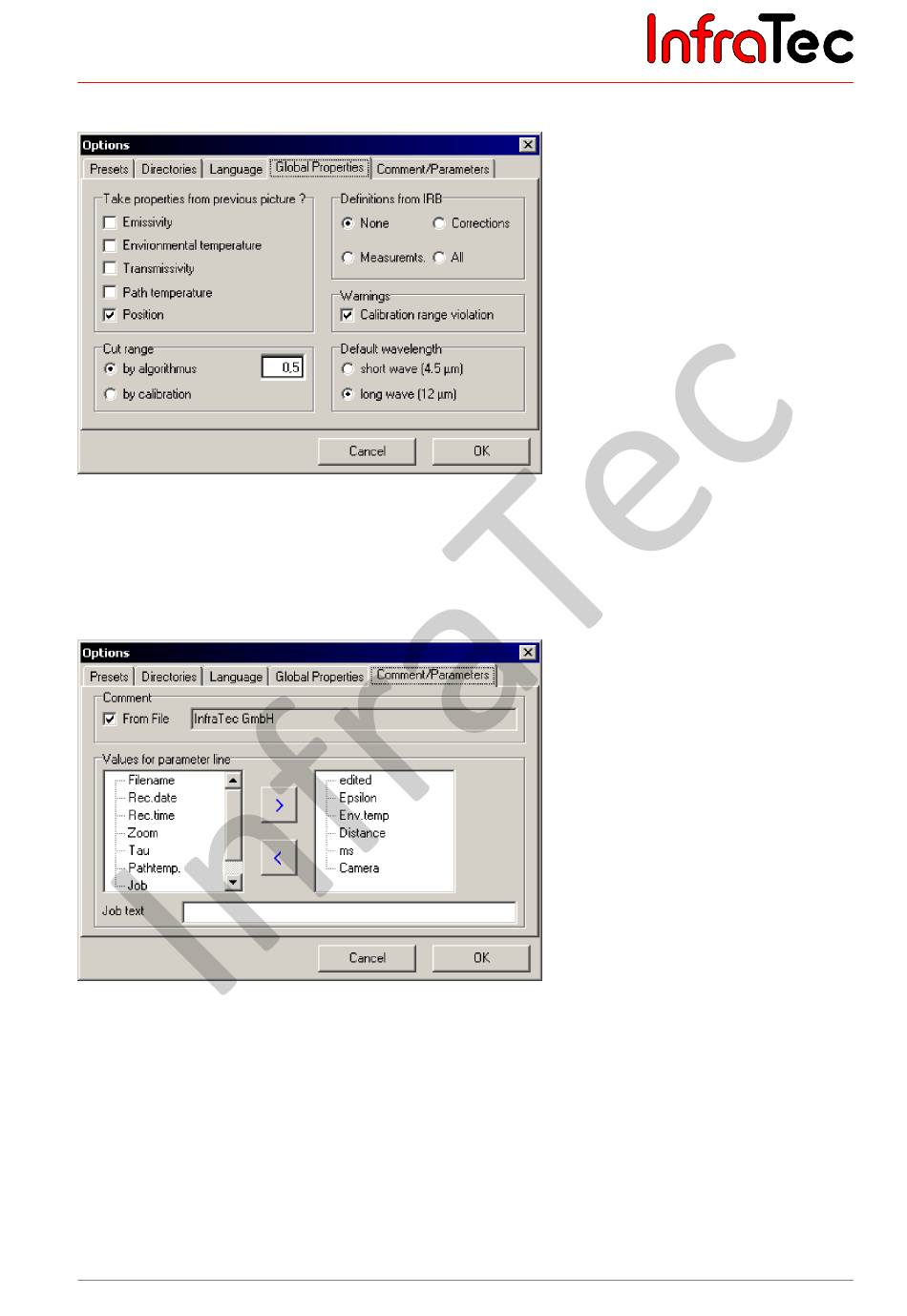

Fig. 202 "Options", tab "Global Properties"
Various special functions are available within this tab, these include settings for overwriting values from
the previous SID or IRB file using the "next/previous file" function, the standard wavelength, settings for
warning messages or choice of action on exceeding calibration.
Tab "Comment/Parameters"
Fig. 203 "Options", tab "Comment/Parameters"
If the "From File" checkbox in the "Comment" section is activated, the comments from the IRB or SID
file are used. Otherwise any comment can be put in the input field.
The "Values for parameter line" section enables selection of parameters. The selection here is done
using a graphical editor, where the not selected parameters are displayed on the left and the selected
parameters are displayed on the right. The text entered under "Project" can be transferred to the
parameter field in the IRBIS
Operating Instructions
®
main window using "Job" from the list in the graphical editor.
© InfraTec GmbH 2007 95
