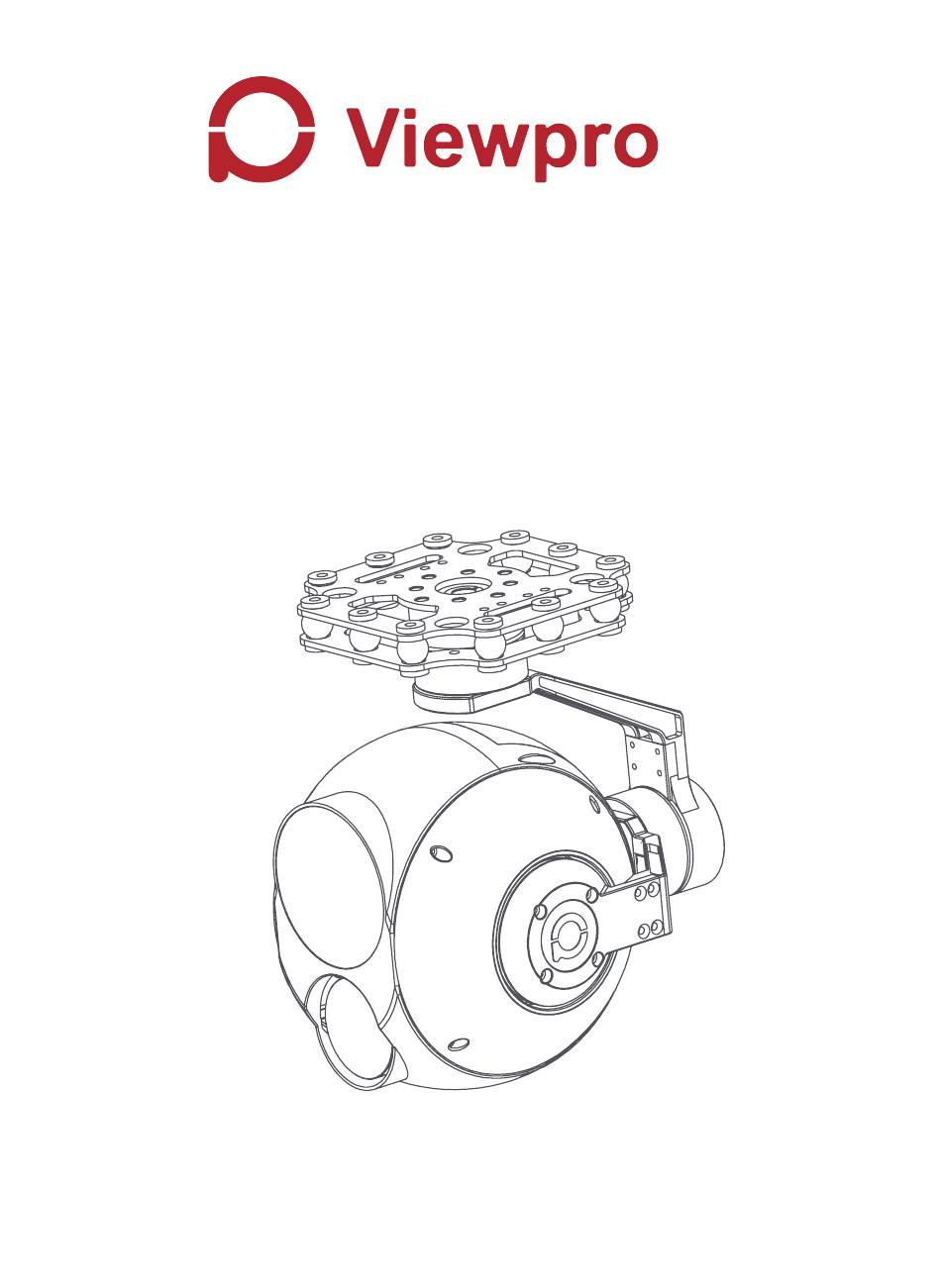

- Page 1 Quick Start Guide Q30TIR-50 30x Optical Zoom EO+IR Object Tracking Gimbal Camera Images are for reference only, please subject to the actual product.
- Page 2 Q30TIR-50 Q30TIR-50 is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera and a 640x480 thermal camera. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 50mm thermal can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.
- Page 3 In the Box Gimbal camera*1 Damping board*2 Copper cylinders*4 Anti shedding buckle*4 Button head hexagon screw*16 USB to TTL*1 5mm*12 8mm*4 Gimbal Camera Dimension Uint: mm...
- Page 4 Installing Install the holder camera as shown Connection of Control Box and Wiring Instruction Control Box position 1.Insert SD card SD card: max 128G ，class10 SD card position FAT32 or exFAT format 3S~4S 2. Connect HDMI to display HDMI: micro HDMI OUTPUT HDMI position 1080P 60fps default...
- Page 5 3. Connect the signal line as below 1 2 3 S.bus/ Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi S.bus/Rx Roll/Tx Pitch Futaba Mode Zoom R6208 S B Focus Pic/Rec Multi 8 /B 4. Power supply with 12V, red line is positive and black is negative. RX1 RX2 RX3 TX1 TX2 TX3 1 2 3...
-
Page 6: Function Description
Function Description Signal functions PWM in 5V output USER BOARD TTL 115200/8/1/N Pitch: PWM in, pitch control... - Page 7 Pitch: PWM in, pitch control 1 pitch up 2 pitch stop We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical 3 pitch down s u p p o r t f o r d e t a i l doc.
- Page 8 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 9 Pic/ Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record. Start record, the OSD display rec hh:mm:ss. Stop record, the OSD display STBY. Switch 2 to 3: Take a picture. OSD display ’REC IMG’ a second. Multi: Tracking control 1: Position 1 exit the tracking Switch 1 to 2: display the cross cursor.
- Page 10 Hardware Parameter Working voltage Input voltage 4S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 500mA @ 12V Idle current 400mA @ 12V Power consumption ≤ 6W Working environment temp. ~ +60 ℃ ℃ Output micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 60fps) Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format) Control method...
- Page 11 Thermal Imager Spec Lens size 50mm Horizontal FOV 12.4 Vertical FOV Diagonal FOV 15.5 Detective Distance (Man: 1.8x0.5m) 1471 meters Recognize Distance (Man: 1.8x0.5m) 368 meters Verified Distance (Man: 1.8x0.5m) 184 meters Detective Distance (Car: 4.2x1.8m) 4510 meters Recognize Distance (Car: 4.2x1.8m) 1127 meters Verified Distance (Car: 4.2x1.8m) 564 meters...
