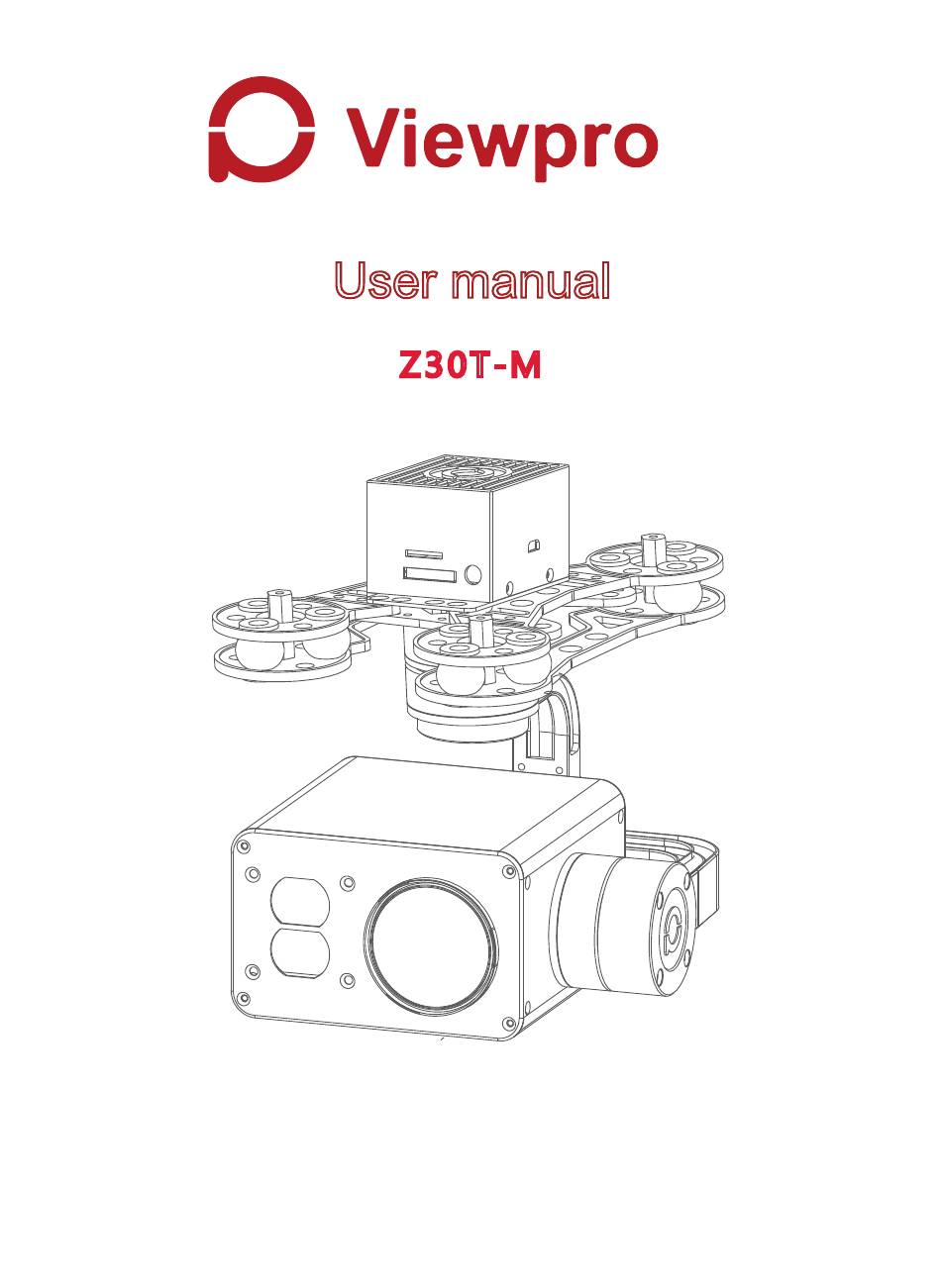

Page 1: User Manual
User manual Z 3 0 T -M 30x Zoom Laser Night Vision Object Tracking Camera Gimbal Images are for reference only, please subject to the actual product. -
Page 2: Table Of Contents
Contents Z30TM Pinpoint-precision Gimbal Gimbal introduction … ………………………… …………… ……………………… Object tracking function … … ………………………………………………………2 3. Gimbal description … … ………………………………………………………………3 4. Packing list …… ………………………………………………………………………4 … 5. Gimbal dimension … …………………………………………………………………4 6. Installing ………………………………………………………………………………5 … 7. Mechanics@Electronic characteristics …... -
Page 3: Gimbal Introduction
Gimbal Introduction Z30TM is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint- precision encoder in each motor. The speed of Z30TM gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate;... -
Page 4: Gimbal Description
Gimbal Description [1] Gimbal fixed copper cylinder [6] Pitch axis motor [2] Damping balls [7] HD zoom camera [3] Upper damping board [4] Lower damping board [5] YAW axis motor Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 Screw pack*1 (M3*5mm button head hexagon screw*12) Copper cylindersr*4 Damping balls*12 Gimbal Dimension Unit ：mm Z-3T 135.5... -
Page 6: Installing
Installing Mechanics@Electronic Characteristics 3S~ 4S Input voltage Idle current 330mA@12V Working 450mA@12V Dynamic current -20℃ ~ +80℃ environment temp 835g Size Weight L135.5 *W 135*H120mm Working Characteristics Pitch/Tilt: Pitch angle range of action : ±90 Roll: Roll angle range of action : ±85° Yaw/Pan: Yaw angle range of action : ±150°... -
Page 7: Gimbal's Signal Wire Box
Gimbal’s Signal Wire Box Size:49*45.4*35.7 Unit : mm... - Page 8 Connection of Control Box and Wiring Instruction Z-3T controller box HDMI: micro HDMI OUTPUT 1080P 60fps default SD card: max 128G, class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 115200/8/1/N...
- Page 9 S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control 1. Pitch up 2. Pitch stop W e h ave p ro t o co l f o r c o n t r o l t h e g i m b a l an d cam er a, p l ease co n t act o u r t ech n i cal su p p o r t...
- Page 10 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 11 Pic /Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record.start record, t he OSD display rec hh:mm:ss ; Stop record, the OSD display STBY. Switch 2 to 3: take a picture . OSD display’REC IMG’ a second. Multi: Tracking control / camera ICR on, laser on/ camera ICR off, laser off 1.
- Page 12 SONY EV7520 30x Starlight Camera FCB-EV7520 Imager sensor 1/2.8-typeExmor R CMOS Lens Picture quality Full HD 1080p (1920 x 1080) Colour: 0.01 lx(F1.6, AGC on, Minimum 1/30 s) illumination* Digital zoom 12x (360x with optical zoom) Defog Image sensor 1/2.8-type Exmor R CMOS Image sensor(Number Approx.2.13 Megapixels of effective pixels)
- Page 13 FCB-EV7520 Shutter speed 1/1 s to 1/10,000 s, 22 steps Sync system Internal Auto, Manual, Priority mode Exposure control (shutter priority & iris priority), Bright, EV compensation, Slow AE Backlight compensation Aperture control 16 steps Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor White balance Lamp (Fix/Auto/Outdoor Auto), One-push, Manual...
