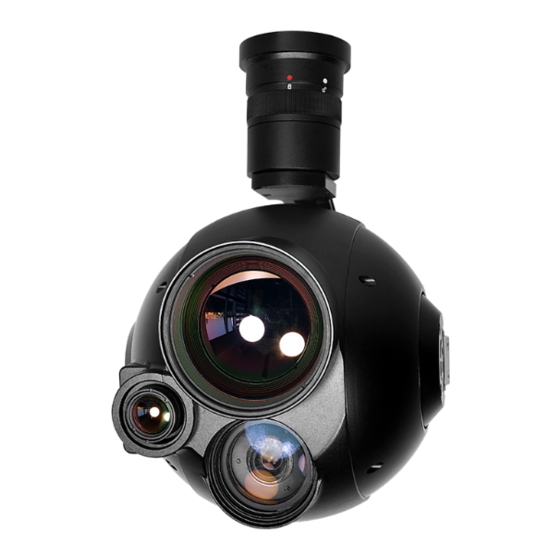

- Page 1 Q30TIR-1352 30x EO+IR Thermal Triple-Sensor Object Tracking Gimbal Camera User Manual User Manual Standard Version Viewport Version 标准版 快拆版 For more details please scan the QR code or visit our website: www.viewprotech.com...
-
Page 2: Disclaimer And Warning
Viewpro product. Disassemble the gimbal camera by user is not permitted, as which may cause the camera does not work normally. Viewpro accepts no liability for damage, injury or any legal responsi- bility incurred directly or indirectly from the use of this project. The user shall observe safe and lawful practices including, but no limited to, those set forth in the manual. -
Page 3: Standard Version
Q30TIR-1352 is widely used in forest firefighting, search and rescue, and other industrial applications. 1.2 In the Box A. Standard Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder M3 Screw x 4 pcs... -
Page 4: Installation Instruction
TTL / S.BUS Control Cable x 1 pc TTL Connect Cable x 3 pcs Ethernet Cable x 1 pc 2. Installation Instruction 2.1 Overview [11] [13] [12] Control Box Back Side [10] (Standard Version) [11] [14] [13] Viewport [12] (Viewport Version) - Page 5 [1] Control box [8] Roll axis motor [9] TF card slot [2] Upper damping board [10] Pitch axis motor [3] Lower damping board [11] 3-6S power interface [4] Infrared thermal camera [5] FHD zoom camera [12] Micro HDMI interface [6] Damping ball [13] Ethernet interface [7] Yaw axis motor [14] Viewport unlock button...
- Page 6 2.2.2 Control Box Printing (Viewport Version) Front Side POWER Left Side ETHERNET UART & S.BUS Right Side...
- Page 7 2.3 Device Dimensions (Standard Version) Unit: mm 62.2 127.7 172.9...
- Page 8 2.3 Device Dimensions (Viewport Version) Unit: mm 41.6 Control Box 127.7 172.9...
- Page 9 2.4 Install Mounting Part (1) Find out the arrow on the gimbal which indicating the yaw heading of the payload (i.e. the lens direction when the camera power on), and synchronize with the direction specified by the UAV. (2) Fix one end of the copper cylinder on the screw hole of lower damping board, and use M3 screw to fasten it.
- Page 10 2.5 Viewport Release Instruction × 1. Make sure the two white stripes indicated in above picture are aligned with each other. (If the stripes are not aligned to each other, please pinch the connector part and turn it to left manually)
- Page 11 2. Align the white dot (unlock icon) to the red triangle (below unlock button), push the gimbal into the Viewport completely and then rotate the gimbal camera anticlockwise. 3. When you hear "click" sound (when red dot is aligned to the red triangle) means the gimbal camera and Viewport has been locked.
- Page 12 2.6 Install TF Card TF (Micro SD card): Install the TF card to the card slot (Re. 2.1 Overview). Support max 128GB. Request Class 10 (10m/s) transmis- sion speed or higher and FAT32 or exFAT format. Make sure device is power off when inserting the TF card, hot plugging is not supported.
-
Page 13: Signal Control
Above output mode is optional, please subject to your actual product. When using user interface software Viewlink for network connection, the network of external device (computer) should be the IP address: 192.168.2.2 (choose the last byte among 2~254, can not be 119 same as the gimbal), subnet mask: 255.255.255.0, Default gateway: 192.168.2.1, and all firewalls of the computer must be closed. - Page 14 PWM IN 5V OUTPUT Remote Controller Receiver Connection Diagram (Standard Version) Receiver Remote Controller Connection Diagram (Viewport Version)
- Page 15 3.1.2 PWM Control Operation Instruction 1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Pitch Up Pitch Stop Pitch Down...
- Page 16 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Position 1: Low speed mode, control pitch / yaw with this mode at lowest speed Position 2: Middle speed mode, control pitch / yaw with this mode at middle speed Position 3: High speed mode, control pitch / yaw with this mode at highest speed...
- Page 17 4) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear IR digital zoom No control IR color palette switch 5) Focus (PWM Focus channel is to control IR color palette switch.
- Page 18 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Switch from Position 2 to 1: Take a picture OSD display 'REC IMG' a second. Switch from Position 2 to 3: Start record / repeat operation to stop record Start record, the OSD display rec hh:mm:ss.
- Page 19 3.2 Serial Port / TTL Control TTL communication requirements: TTL signal is 3.3V, baud rate: 115200, data bit 8, stop bit 1, no parity, HEX send and receive. Connection Diagram (PC - USB to TTL Cable- Gimbal Camera as example): Gimbal Camera Cable RX (White)
-
Page 20: S.bus Control
TTL control protocol file. ViewLink is a user interface developed by Viewpro for Viewpro gimbal cameras, you can download it from Viewpro website (www.viewpro- tech.com) or ask distributors for installation package. - Page 21 5V OUTPUT Remote Control Receiver Wiring Diagram Standard Version Receiver Remote Control Wiring Diagram Viewport Version...
- Page 22 S.Bus control mode: default S.Bus signal channel 9-15 to control gimbal camera functions (the function of channel is consistent with corresponding channel in PWM function description) Channel 9: Yaw Control Channel 10: Pitch Control Channel 11: Mode Control Channel 12: Zoom Control Channel 13: Focus Control Channel 14: Pic/Rec Control Channel 15: Multi Backup...
-
Page 23: Specification
4. Specification Hardware Parameter Working voltage Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 1000mA @ 12V Idle current 830mA @ 12V Working environment -20℃ ~ +60℃ temp Output micro HDMI(1080P 60fps) / IP (720p) TF card (Up to 128G, class 10, FAT32 or ex Local-storage FAT format) - Page 24 Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02° One-key to center √ Camera spec Imager Sensor SONY 1/2.8" "Exmor R" CMOS Picture quality Full HD 1080 (1920*1080) Effective pixel 2.13MP Lens optical zoom 30x, F=4.3~129mm Digital zoom 12x (360x with optical zoom) 10mm(wide end) to 1200mm(tele end). Min object distance Default 300mm Horizontal viewing...
- Page 25 Auto, ATW, Indoor, Outdoor, One Push WB, White balance Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) Shutter speed 1/1s to 1/10,000s, 22 steps Backlight compensation Aperture control 16 steps Defog Camera Object Tracking Update rate of 50Hz deviation pixel Output delay of deviation pixel Minimum object...
- Page 26 Thermal Imager Spec Lens size 52mm Horizontal FOV 11.9° Vertical FOV 9° Diagonal FOV 14.9° Detective Distance 1529 meters (Man: 1.8x0.5m) Recognize Distance 382 meters (Man: 1.8x0.5m) Verified Distance 191 meters (Man: 1.8x0.5m) Detective Distance 4690 meters (Car: 4.2x1.8m) Recognize Distance 1173 meters (Car: 4.2x1.8m) Verified Distance...
- Page 27 MRTD ≤650mK (@characteristic frequency) Auto adjust image brightness and contrast Image enhancement ratio Color palette White, iron red, pseudo color Auto Non-uniform Yes (no shutter) correction Digital zoom 1x ~ 4x Sync correct time Temperature bar (psudo color display) max Thermometry type temp, min temp, FOV center temp (Optional) Temperature warning 0℃~120℃...
- Page 28 Recognize Distance 293 meters (Car: 4.2x1.8m) Verified Distance 147 meters (Car: 4.2x1.8m) Uncooled long wave (8μm~14μm) Working mode thermal imager Detector pixel 640*480 Pixel size 17μm Focusing method Athermal prime lens Emissivity correction 0.01~1 NETD ≤60mK (@25℃) MRTD ≤650mK (@characteristic frequency) Auto adjust image brightness and contrast Image enhancement ratio...
- Page 29 Minimum object size 32*32 pixel Maximum object size 128*128 pixel Tracking speed 32 pixel/frame Object memory time 100 frames (4s) Packing Information N.W. 1527g Product meas. 172.9*127.7*198.6mm 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, Accessories 4pcs damping boards, 1pc USB to TTL cable / box G.W.
- Page 30 5. FAQ 1. How to deal with whitening visible image of Q30TIR-1352 in foggy weather？ A: Enable defogging mode. 2. Does Q30TIR-1352 support taking photos during recording? A: Yes. 3. How to set the video storage format of Q30TIR-1352? A: When the IP output resolution is set to 1280*720, the storage resolution is 1920 * 1080;...
