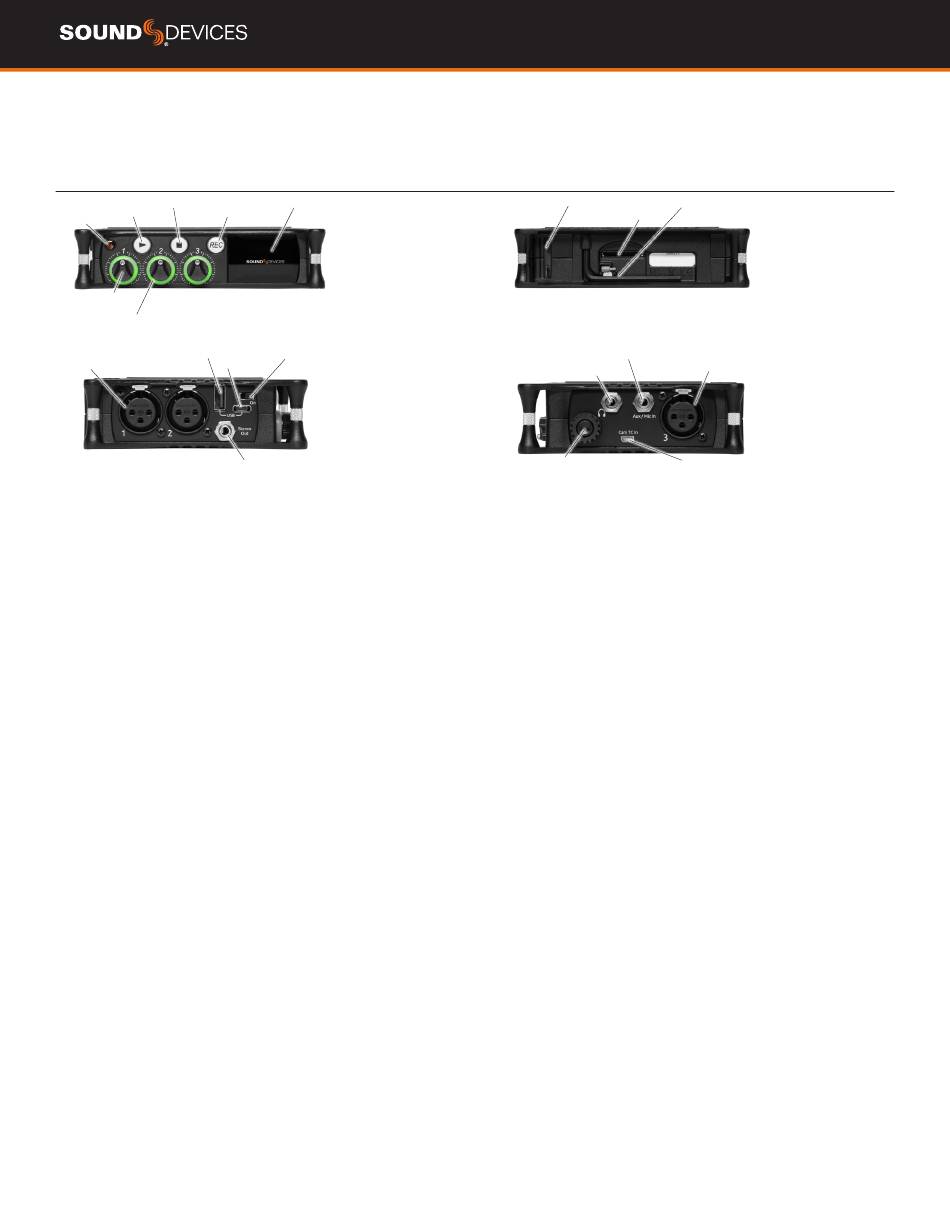

Panel Views

MIXP R E-3 II
Stop Button
Play Button Record Button
Power Light
Channel Knobs
FRON T
Channel Ring LED
USB-A Port
XLR / 1/4-inch TRS Inputs
USB-C Port
LEFT
POWER LIGHT Glows when the MixPre II is powered on.
CHANNEL KNOBS Sets the input sensitivity for the channel. Press
in on knob to access channel screen.
CHANNEL LED RING Provides visual indication of channel signal
condition, solo and mute.
PLAY BUTTON Press to begin playback. While in playback the button
glows green. See Transport.
STOP BUTTON Press to stop recording or playback. While stopped
the button glows orange. See Transport.
RECORD BUTTON Press to begin a recording. While recording the
button glows red. See Transport.
TOUCH SCREEN The sunlight-viewable, high-resolution, touch-
screen is used to navigate the MixPre II user interface.
BATTERY MOUNTS Accepts power sled accessories designed for
MixPre. Allows powering the MixPre II from AA or Sony L-Mount batter-
is, such as the included MX-4AA.
SD CARD SLOT Insert SD card for recording.
ALLEN WRENCH & ANTI-ROTATIONAL PIN Magnetically at-
taches to the MixPre II for safe keeping. Used to attach MixPre II to
cameras and tripods via ¼-inch-20-thread captive screw on MixPre II
top panel.
INPUTS 1-3 FEMALE XLR / 1/4" TRS COMBO JACKS Active-bal-
anced analog microphone or line-level inputs. Inputs 1-2 on left
panel, input 3 on the right. [pin-1 = ground, pin-2 = hot (+), and pin-3
= cold (-)]
MixPre II User Guide
Touchscreen
Power Switch
3.5 mm Stereo
Output
Battery Mounts
SD Card Slot
REA R
Aux/Mic/Timecode Input
XLR / 1/4-inch TRS Input
Headphone Output
RIG HT
Headphone Knob
USB-A PORT
1. USB keyboard
2. Auto-copy to USB drives
3. USB to approved 3rd party fader controllers
USB-C PORT
1. Provides power to the unit.
2. Connects to computer as a USB Audio Interface.
3. Connects to computer for transfering files from the SD card.
STEREO OR TIMECODE OUTPUT Unbalanced stereo 3.5 mm
female connector. Routing determined in the Outputs menu. [Sleeve =
ground, tip = X1, ring = X2].
POWER SWITCH Turns the power on and off.
HEADPHONE OUTPUT 3.5 mm TRS headphone output. Warning!
This output can drive headphones to potentially dangerous levels.
[Sleeve = ground, tip = left, ring = right]
HEADPHONE KNOB
1. Rotate to control headphone volume.
2. Rotate to navigate some menus and the virtual keyboard. Press in
to select items.
AUX/MIC/TIMECODE INPUT Menu-selectable input. Accepts
unbalanced stereo audio signal, Plug in Power microphones, or LTC
timecode.
HDMI TC INPUT Connect to select cameras to receive HDMI time-
code and record start/stop flags.
Allen Wrench and
Anti-Rotational Pin
HDMI TC Input
3
