removaBles
1
BLAck BAy
·

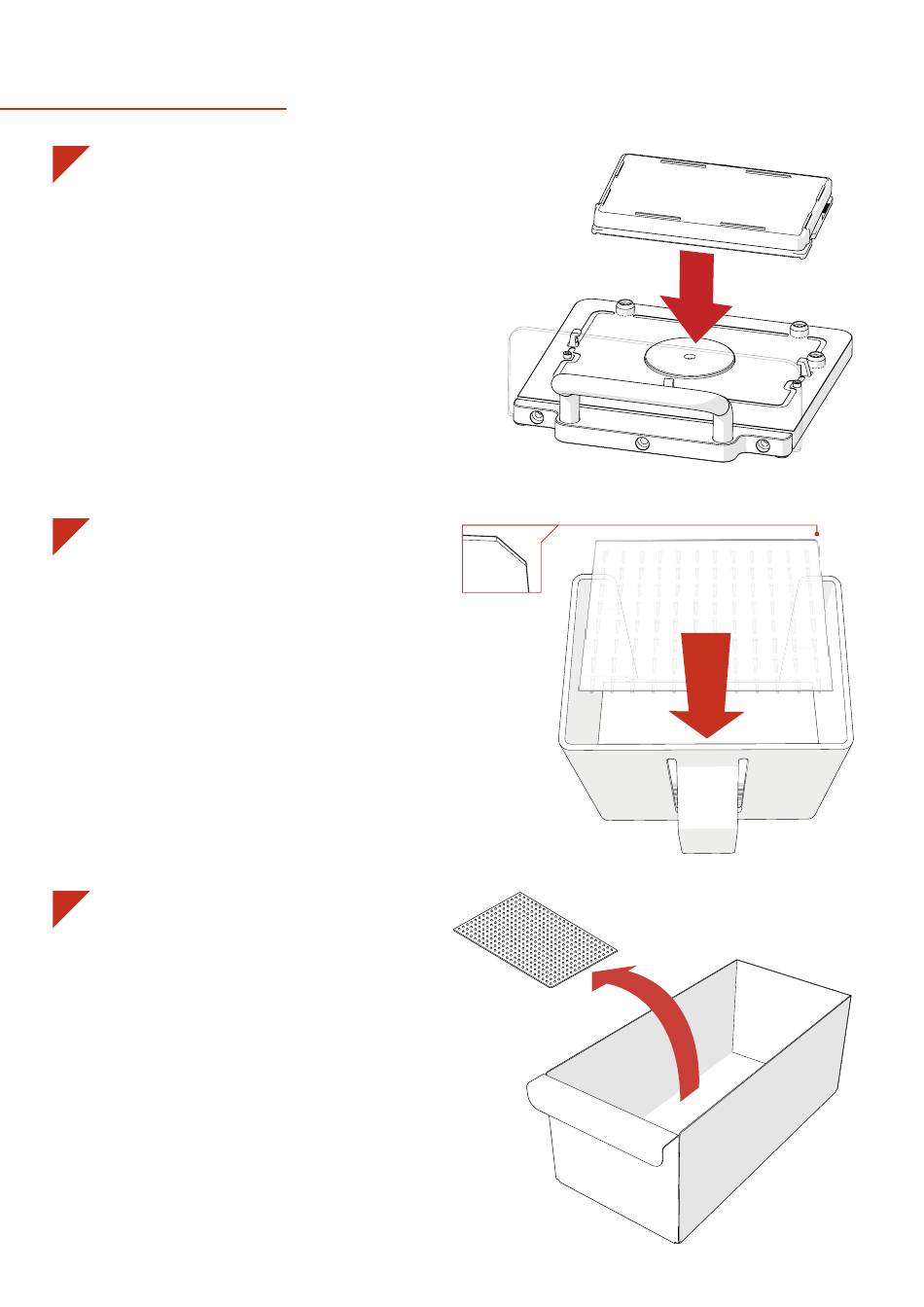

The Black Bay is a loading bay for source and target plates.
you will need to remove the Black Bay to load plates.
·
if you own The stinger single colony picker then you will
need to remove the Black Bay in order to change between
the Pad Head and The stinger.
2
PAd HOPPer
·
The Pad Hopper is where the fresh rePads™ are loaded.
·
Load a stack of rePads™ (pins facing down) into the Hopper
as shown, ensuring the chamfered corner is to the top
right.
·
The Pad Hopper is fully autoclavable to ensure rePads™
stay sterile. However, a pack of rePads™ includes a
protective card that means the rePads™ stay sterile
without autoclaving the Pad Hopper.
3
dUMP drAwer
·
The dump drawer is where used rePads™ are deposited.
·
when a program is finished, the dump drawer can be
removed to dispose of the used rePads™.
·
The dump drawer is fully autoclavable.
