BP-800
OWNER'S MANUAL
Thank you for purchasing the BP=800 bass amp. A great deal of dedication and passion went into
designing and building this no-compromise, high performance compact amplifier. It was conceived
to be a dedicated amplifier for the "connoisseur" bassist. Reading and following this manual will

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP-800 and is the answer not in the manual?

Questions and answers

Related Manuals for Phil Jones Bass BP-800

Summary of Contents for Phil Jones Bass BP-800

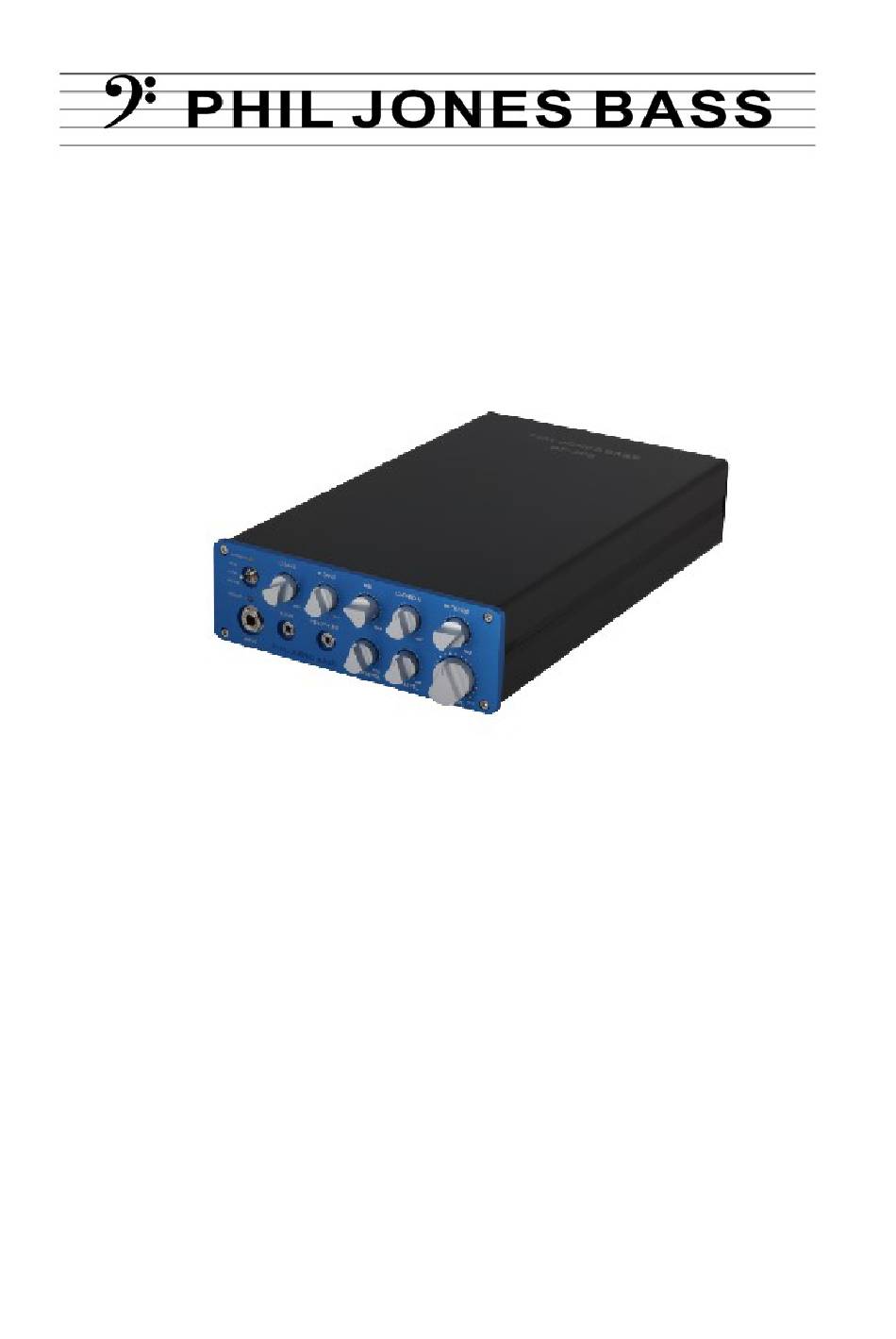

  • Page 1 BP-800 OWNER’S MANUAL Thank you for purchasing the BP=800 bass amp. A great deal of dedication and passion went into designing and building this no-compromise, high performance compact amplifier. It was conceived to be a dedicated amplifier for the “connoisseur” bassist. Reading and following this manual will...

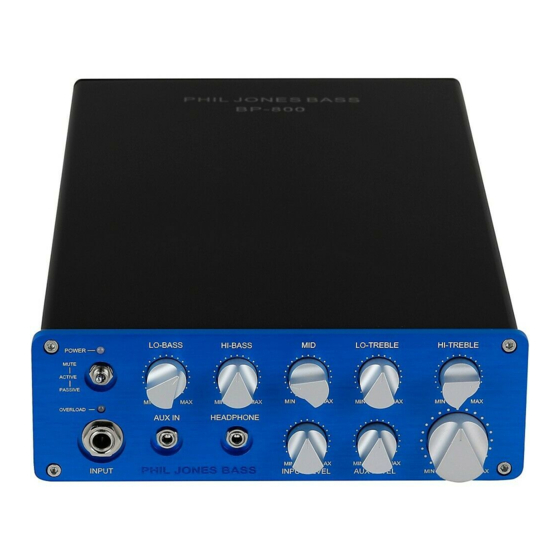

  • Page 2  No naked flame sources, such as lighted candles, should be placed on the amplifier. OVERVIEW OF THE BP-800 AMPLIFIER The BP-800 is a high power 800 watt D-Class power amplifier and a pure class A single channel pre- amplifier housed in a machined aluminum enclosure.
  • Page 3 • Variable input sensitivity control to match instrument output with amplifier. • Input overload indicator. • Sub sonic filter to reduce excessive loudspeaker cone motion. • Dedicated 5-Band EQ for total tonal control of instrument. • Auxiliary input for other audio sources with volume control. •...
  • Page 4 1. POWER ON INDICATOR Auto standby function: When connected to AC power, turn on the power, the power LED will light up with red, that shows the amplifier is in standby mode.Under standby mode, when the input socket have a signal was more than 20mV, the power LED will turn green, that shows the amplifier is working.
  • Page 5 CONTROL! The BP-800 amplifier is rated as 800 watts into 4 ohms but that does not mean it is the maximum output power. This is the output power without audible distortion. Hard driving the BP-800 can cause it to put over power beyond 1000 watts with distortion.
  • Page 6 50Hz, 160Hz, 630Hz, 2.5KHz,12KHz at +/- 18dB Dimensions(WxDxH): 7.5x13x2.8 (inchs) Weight: 6 lbs / 2.7 kg The BP-800 comes with a 12 ft AC Grounded Power Cord. SERVICE/WARRANTY INFORMATION PJB amplifiers carry a 2 years limited warranty on parts and labor.
  • Page 7 Warranty policy might differ in countries outside of US. Please check with local distributors for warranty information in your region. Further questions, please contact PJB by email info@philjonespuresound.com. PHIL JONES BASS American Acoustic Development LLC 8509 Mid County Industrial Dr, St Louis, MO 63114 USA Tel: 855-227-7510 (855-BASS-510) www.pjbworld.com...
